Yamaha TT 600S Belgarda (1995-96) technical specifications

Yamaha TT 600S Belgarda technical specifications

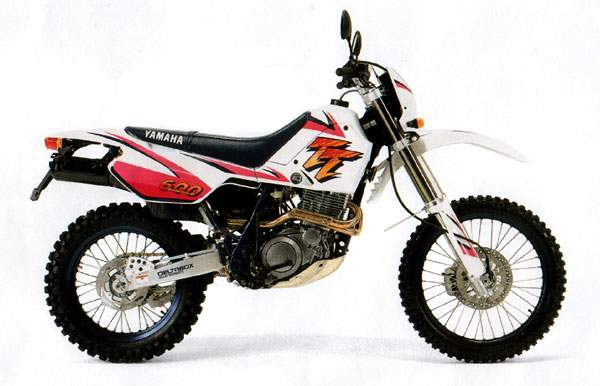

Yamaha TT 600S Belgarda is produced in 1995-96. Engine is Four stroke, single cylinder, SOHC, 4 Valve, displacement 595 cc / 36.5 cu-in , produces power 40 hp / 30 kW @ 6500 rpm and 48 Nm / 4.9 kgf-m @ 5500 rpm. Yamaha TT 600S Belgarda weighs 135 kg / 297.6 lbs. Yamaha TT 600S Belgarda has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: TT 600S Belgarda
Years: 1995-96
Engine: Four stroke, single cylinder, SOHC, 4 Valve
Capacity: 595 cc / 36.5 cu-in
Bore x Stroke: 95 x 84 mm
Cooling System: Air cooled
Compression Ratio: 8.5:1
Lubrication: Dry sump
Induction: 26mm Dual stage Teikei Y26PV carburetor
Ignition: CDI
Starting: Kick
Max Power: 40 hp / 30 kW @ 6500 rpm
Max Torque: 48 Nm / 4.9 kgf-m @ 5500 rpm
Transmission: 5 Speed
Final Drive: Chain
Frame: Steel
Front Suspension: Telescopic forks
Front Wheel Travel: 310 mm / 12.2 in
Rear Suspension: Alloy swinging arm single shock with adjustable dampers
Rear Wheel Travel: 270 mm / 10.6 in
Front Brakes: Single 310mm disc
Rear Brakes: Single 270mm disc
Front Tyre: 90/90-21
Rear Tyre: 130/80-18
Rake: 28°
Trail: 121 mm / 4.7 in
Dimensions: Length 2250 mm / 88.5 in Width 840 mm / 33.0 in Heigth 1230 mm / 48.4 in
Wheelbase: 1490 mm / 58.6 in
Seat Height: 920 mm / 36.2 in
Dry Weight: 135 kg / 297.6 lbs
Fuel Capacity: 12 Litres / 3.1 US gal
Related Links: rallye-Tènèrè.net / tt600s.de
