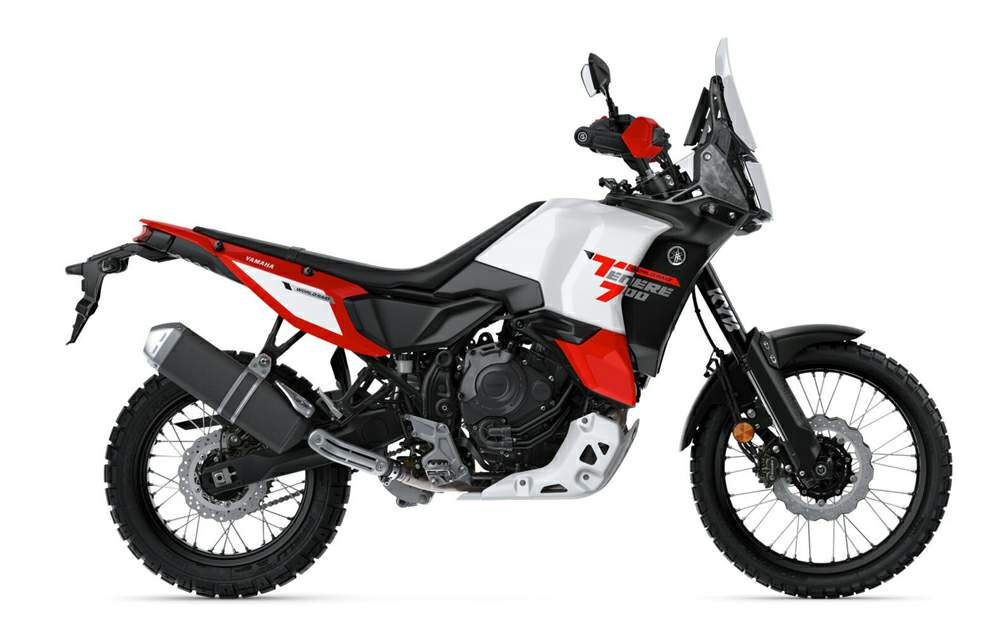

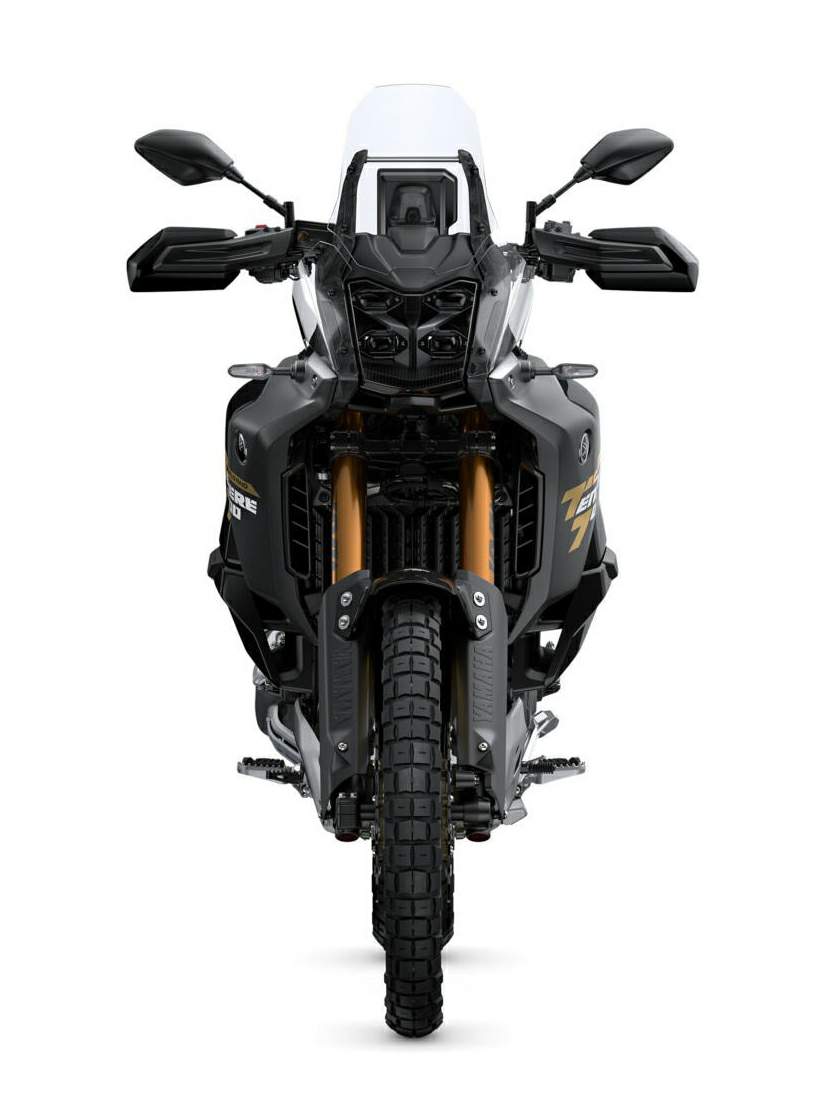

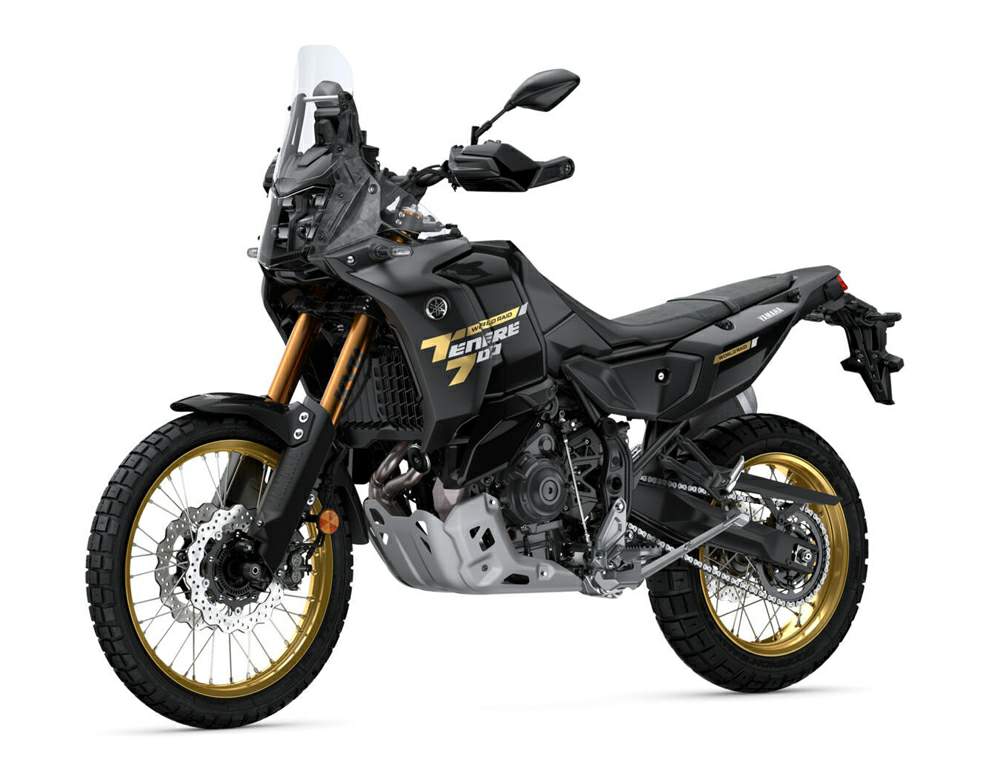

Yamaha T?n?r? 700 World Raid (2026) technical specifications

Yamaha T?n?r? 700 World Raid is produced in 2026. Engine is Four stroke, crossplane crankshaft parallel twin cylinder, DOHC, 4 valve per cylinder, displacement 689 cc / 42.04 cu-in , produces power 72.4 hp / 54 kW @ 9000 rpm and 68 Nm / 50.2 lb-ft @ 6500 rpm. Yamaha T?n?r? 700 World Raid wet weight is 220 kg / 485 lbs. Yamaha T?n?r? 700 World Raid has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	T?n?r? 700 World Raid
Years:	2026
Engine:	Four stroke, crossplane crankshaft parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity:	689 cc / 42.04 cu-in
Bore x Stroke:	80 x 68.6 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.5:1
Lubrication:	Wet sump
Induction:	Fuel Injection
Emission:	Euro 5
Ignition:	TCI - Transistor Controlled Ignition
Starting:	Electric
Max Power:	72.4 hp / 54 kW @ 9000 rpm
Max Torque:	68 Nm / 50.2 lb-ft @ 6500 rpm
Transmission:	Constant Mesh, 6 Speed
Final Drive:	Chain
Clutch:	Wet multiplate
Frame:	Double cradle, steel tube backbone
Front Suspension:	46mm KYB upside down telescopic fork, fully adjustable
Front Wheel Travel:	230 mm / 9.1 in
Rear Suspension:	Single KYB shock, adjustable preload (with remote adjuster) and rebound damping
Rear Wheel Travel:	220 mm / 8.7 in
Front Brakes:	2 x 282mm discs, Brembo 2-piston calipers
Rear Brakes:	Single 245mm disc, single piston caliper
ABS:	Standard
Front Tyre:	90/90 R21 M/C 54V
Rear Tyre:	150/70 R18 M/C 70V M+S
Rake:	27?
Trail:	105 mm / 4.1 in
Dimensions:	Length 2370 mm / 93.3 in Width 935 mm / 36.8 in Height 1495 mm / 58.9 in
Wheelbase:	1595 mm / 62.8 in
Seat Height:	890 mm / 35 in
Ground Clearance:	250 mm / 9.8 in
Wet Weight:	220 kg / 485 lbs
Fuel Capacity:	23 Litres / 6.0 US gal
