Yamaha TMAX 25th Anniversary (2026) technical specifications

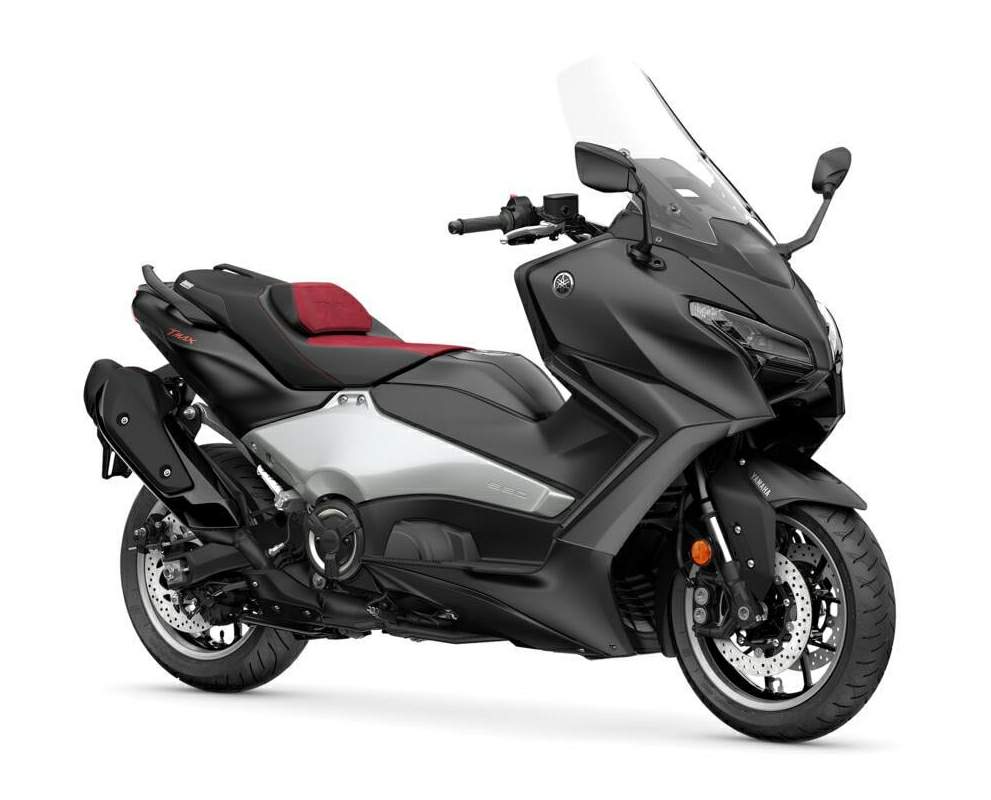

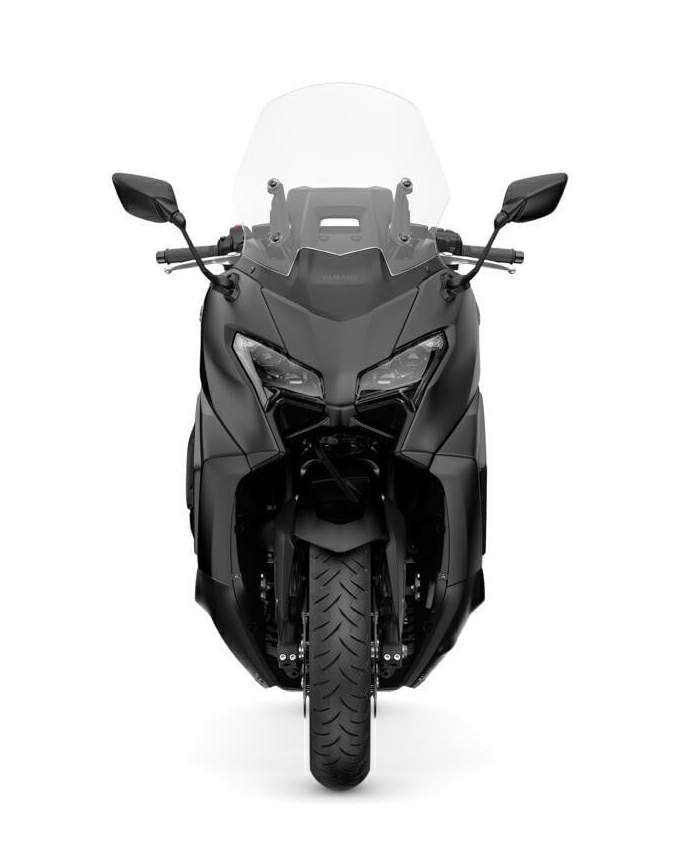

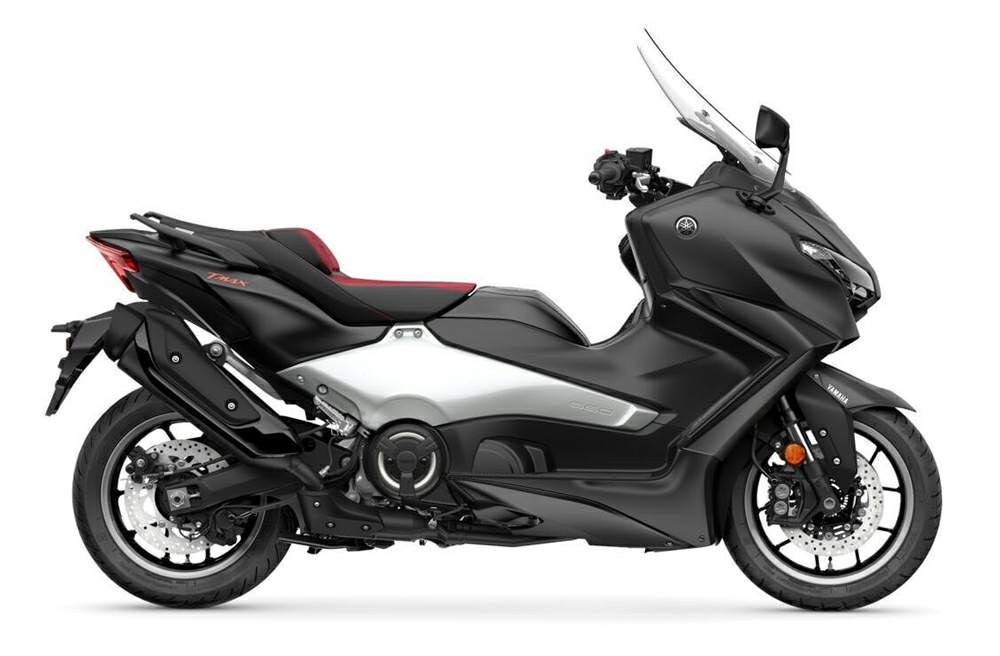

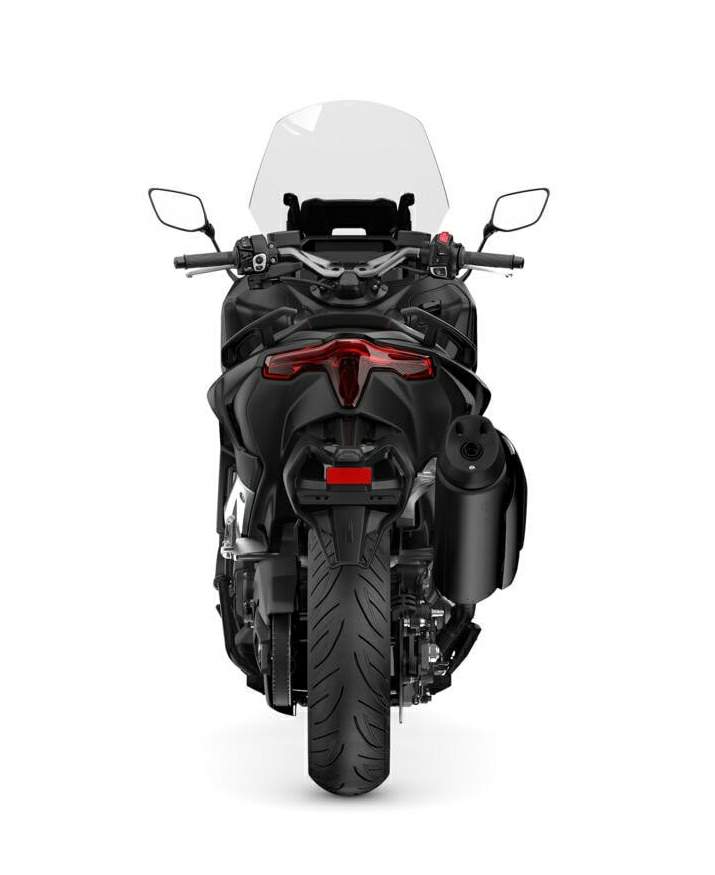

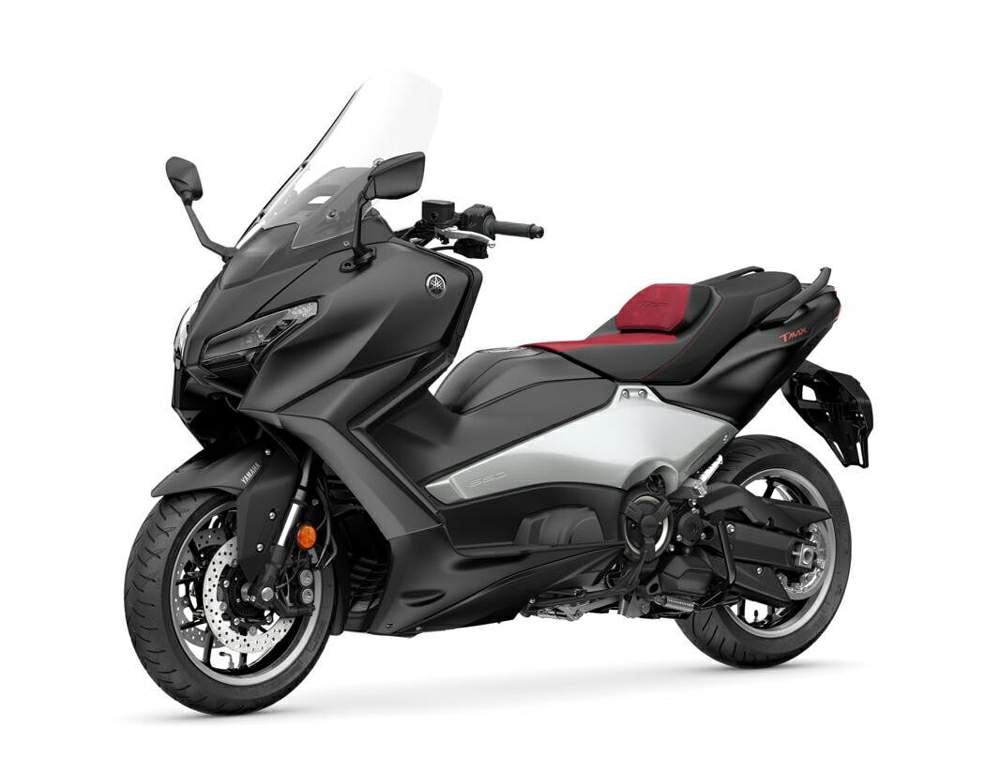

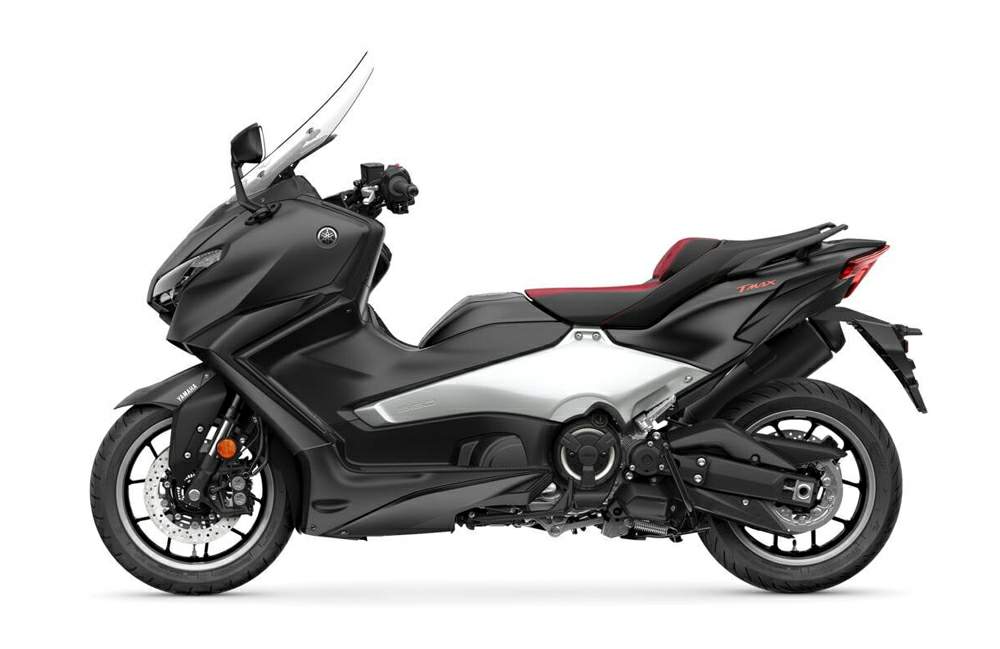

Yamaha TMAX 25th Anniversary is produced in 2026. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 562 cc / 32.49 cu-in , produces power 47 hp / 35 kW @ 7000 rpm and 55.7 Nm / 41 lb-ft @ 5250 rpm. Yamaha TMAX 25th Anniversary wet weight is 219 kg /. Yamaha TMAX 25th Anniversary has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	TMAX 25th Anniversary
Years:	2026
Engine:	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity:	562 cc / 32.49 cu-in
Bore x Stroke:	70 ? 73 mm
Compression Ratio:	10.9:1
Cooling System:	Liquid cooled
Induction:	Fuel injection
Emission:	Euro 5+
Lubrication:	Dry sump
Ignition:	TCI/LMAR7G
Starting:	Electric
Max Power:	47 hp / 35 kW @ 7000 rpm
Max Torque:	55.7 Nm / 41 lb-ft @ 5250 rpm
Transmission:	Automatic
Final Drive:	V-belt
Front Suspension:	Telescopic fork
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Swingarm, link suspension
Rear Wheel Travel:	117 mm / 4.6 in
Front Brakes:	2 x 267 mm disc, hydraulic
Rear Brakes:	Single 282 mm disc, hydraulic
Front Tyre:	120/70R15M/C 56H Tubeless
Rear Tyre:	160/60R15M/C 67H Tubeless
Dimensions:	Length 2195 mm / 86.4 in Width 780 mm / 30.7 in Height 1415 mm / 55.7 in - 1525 / 60 in (electric windscreen)
Wheelbase:	1575 mm / 62 in
Seat Height:	800 mm / 31.4 in
Ground Clearance:	135 mm / 5.3 in
Wet Weight:	219 kg /
Fuel Capacity:	15 Litres / 4.0 US gal
