Yamaha RZ 125S (1983-84) technical specifications

Yamaha RZ 125S technical specifications

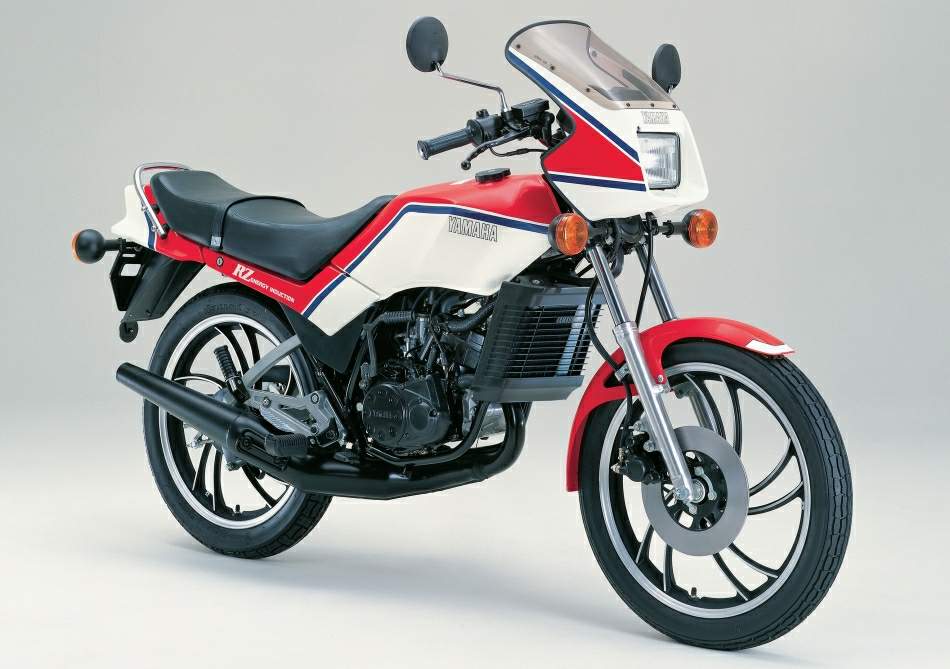

Yamaha RZ 125S is produced in 1983-84. Engine is Two stroke, single cylinder, displacement 123 cc / 7.5 cu-in , produces power 20 hp / 15.5 kW @ 9500 rpm and 1.6 kgf-m / 16 Nm @ 9250 rpm. Yamaha RZ 125S top speed is 81 mph / 130.3 km/h. Yamaha RZ 125S weighs 98 kg / 216 lbs. Yamaha RZ 125S has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: RZ 125S
Years: 1983-84
Engine: Two stroke, single cylinder
Capacity: 123 cc / 7.5 cu-in
Bore x Stroke: 56 х 50 mm
Cooling System: Liquid cooled
Compression Ratio: 6.4:1
Lubrication: Autolube
Oil Capacity: 1.1 L
Induction: 24mm Mikuni carburetors
Ignition: Hitachi CDI
Starting: Kick
Max Power: 20 hp / 15.5 kW @ 9500 rpm
Max Torque: 1.6 kgf-m / 16 Nm @ 9250 rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 32mm Telescopic forks
Rear Suspension: Monocross linkage 6-way preload adjustment
Front Brakes: Single 245mm disc
Rear Brakes: 130mm Drum
Front Tyre: 2.75-18-4PR
Rear Tyre: 3.00-18-6PR
Dimensions: Length 1990 mm / 78.3 in Width 735 mm / 28.9 in Height 1190 mm / 46.8 in
Wheelbase: 1295 mm / 50.9 in
Seat Height: 775 mm / 30.5 in
Ground Clearance: 185 mm / 7.2 in
Dry Weight: 98 kg / 216 lbs
Fuel Capacity: 13 Litres / 3.4 US gal
Consumption Average: 64 mpg
Standing ¼ Mile: 16.7 sec
Top Speed: 81 mph / 130.3 km/h
