Yamaha MT-09 SP (2021) technical specifications

Yamaha MT-09 SP technical specifications

Yamaha MT-09 SP is produced in 2021. Engine is Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder, displacement 889 cc / 54.2 cu-in , produces power 117.4 hp / 119PS / 87.5 kW @ 10000 rpm and 93 Nm / 68.6lb-ft @ 7000 rpm. Yamaha MT-09 SP wet weight is 190 kg / 419 lbs. Yamaha MT-09 SP has 8 photos.

Technical specifications

+ Add to 'Compare list'
Model: MT-09 SP
Years: 2021

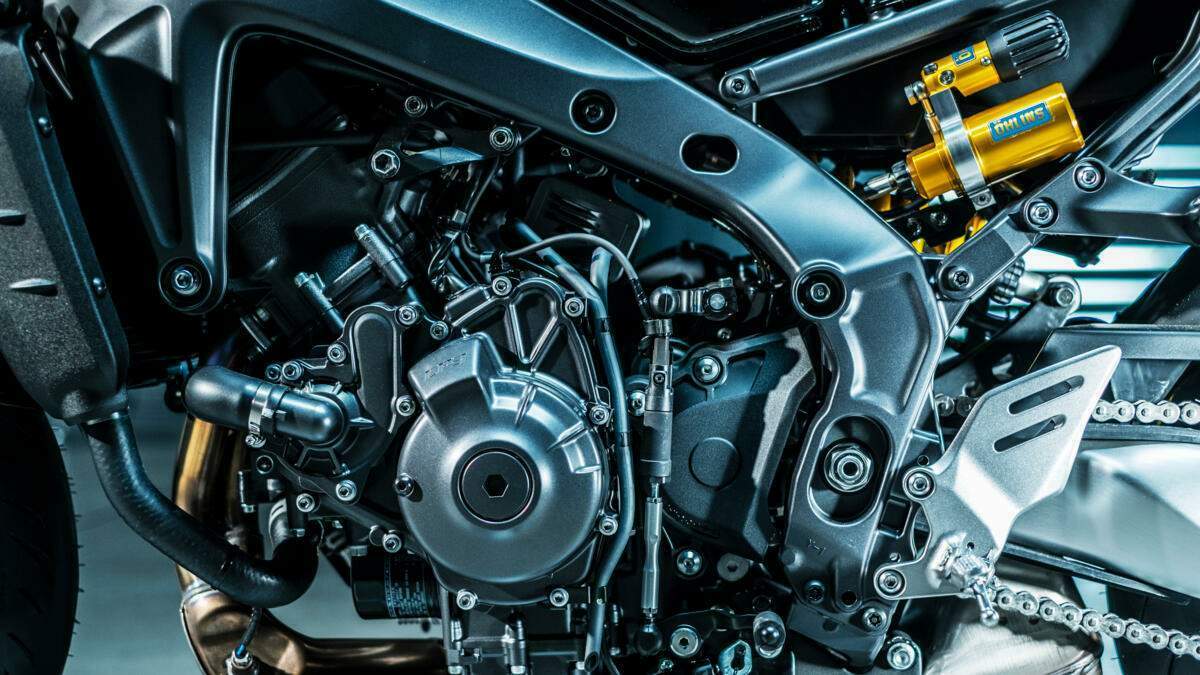

Engine: Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder
Capacity: 889 cc / 54.2 cu-in
Bore x Stroke: 78 x 62.1 mm
Cooling System: Liquid cooled
Compression Ratio: 11.5:1
Lubrication: Wet sump
Induction: Fuel injection with YCC-T
Ignition: TCI: Transistor Controlled Ignition
Starting: Electric
Max Power: 117.4 hp / 119PS / 87.5 kW @ 10000 rpm
Max Torque: 93 Nm / 68.6lb-ft @ 7000 rpm
Clutch: Multiplate assist and slipper clutch
Transmission: 6 Speed
Final Drive: O-ring chain
Frame: Controlled-fill die-cast aluminum with subframe
Front Suspension: 41mm KYB inverted fork, adjustable preload, compression and rebound
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Linkage-free, fully adjustable horizontal Öhlins shock
Rear Wheel Travel: 122 mm / 4.8 in
Front Brakes: 2x 298mm hydraulic discs, 4-piston calipers
Rear Brakes: Single 245mm hydraulic disc, single piston caliper
ABS: Standard
Front Tyre: 120/70 ZR17 M/C
Rear Tyre: 180/55 ZR17 M/C
Caster Angle: 25°
Trail: 109 mm / 4.3 in
Dimensions: Length 2090 mm / 82.3 in Width 795 mm / 31.3 in Height 1191 mm / 46.9 in
Wheelbase: 1430 mm / 56.3 in
Seat Height: 825.5 mm / 32.5 in
Ground Clearance: 140 mm / 5.5 in
Wet Weight: 190 kg / 419 lbs
Fuel Capacity: 14 Litres / 3.7 US gal
