Yamaha MT-07 / FZ07 (2015) technical specifications

Yamaha MT-07 / FZ07 technical specifications

Yamaha MT-07 / FZ07 is produced in 2015. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 689 cc / 42.04 cu-in , produces power 55 kW / 74.8 hp @ 9000 rpm and 68 Nm / 6.9 kgf-m @ 6500 rpm. Yamaha MT-07 / FZ07 wet weight is 179 kg / 397 lbs - AB S 182 kg. Yamaha MT-07 / FZ07 has 8 photos.

Technical specifications

+ Add to 'Compare list'
Model: MT-07 / FZ07
Years: 2015

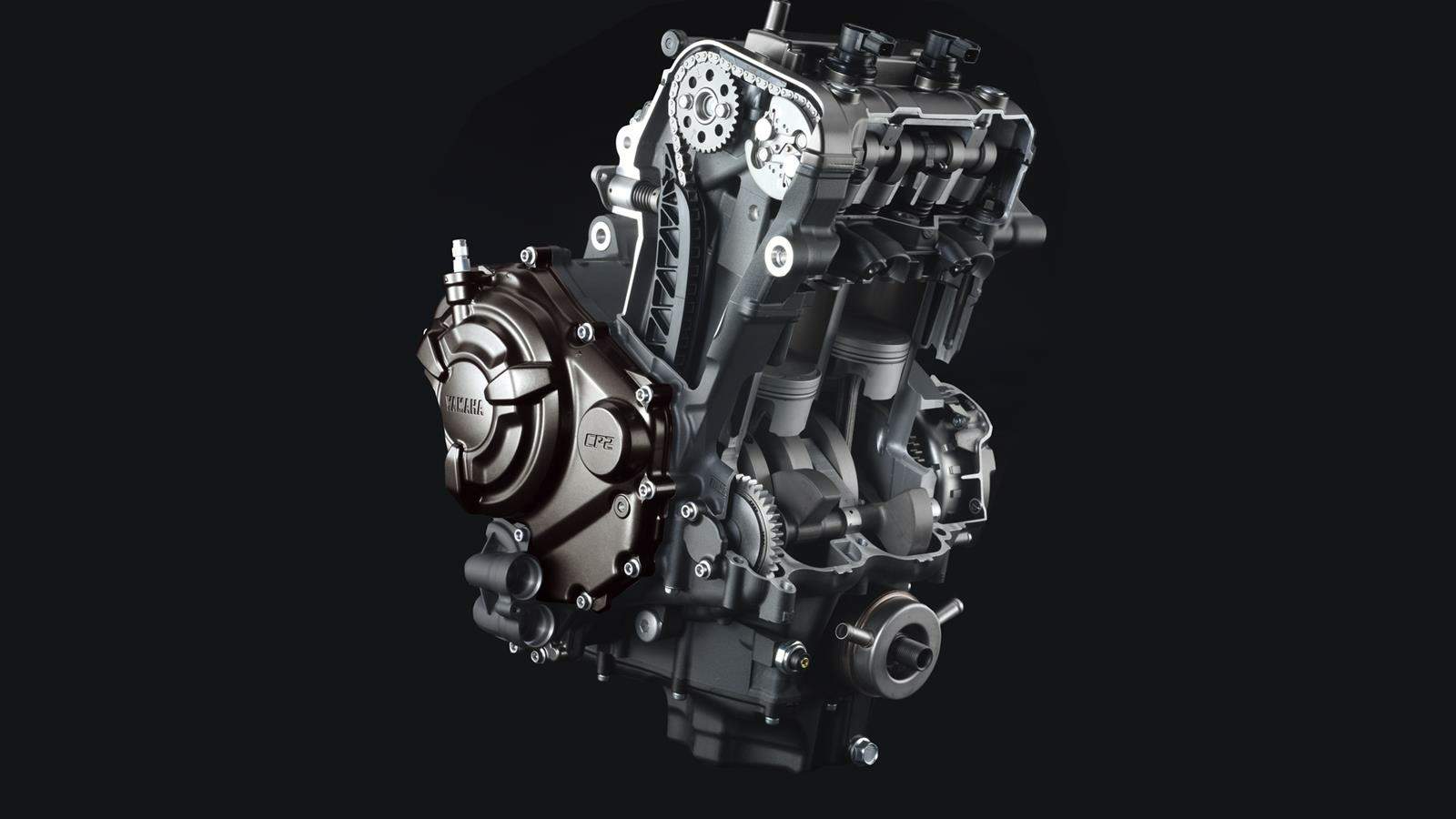

Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity: 689 cc / 42.04 cu-in
Bore x Stroke: 80 x 68.6 mm
Cooling System: Liquid cooled
Compression Ratio: 11.5:1
Lubrication: Wet sump
Induction: Fuel injection
Ignition: TCI Transistor Controlled Ignition
Starting: Electric
Max Power: 55 kW / 74.8 hp @ 9000 rpm
Max Torque: 68 Nm / 6.9 kgf-m @ 6500 rpm
Transmission: Constant Mesh
Final Drive: Chain
Clutch: Wet multiplate
Frame: Diamond
Front Suspension: Telescopic forks
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Swinging arm
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2x 282mm discs
Rear Brakes: Single 245mm disc
Front Tyre: 120/70 ZR 17M/C(58W) (Tubeless)
Rear Tyre: 180/55 ZR 17M/C(73W) (Tubeless)
Caster Angle: 24º
Trail: 90 mm
Dimensions: Length 2085 mm / 82.1 in Width 745 mm / 29.3 in Height 1090 mm / 42.9 in
Wheel base: 1400 mm / 55.1 in
Ground Clearance: 140 mm / 5.51 in
Seat Height: 805 mm / 31.7 in
Wet Weight: 179 kg / 397 lbs - AB S 182 kg
Fuel Capacity: 14 Litres / 3.7 US gal
