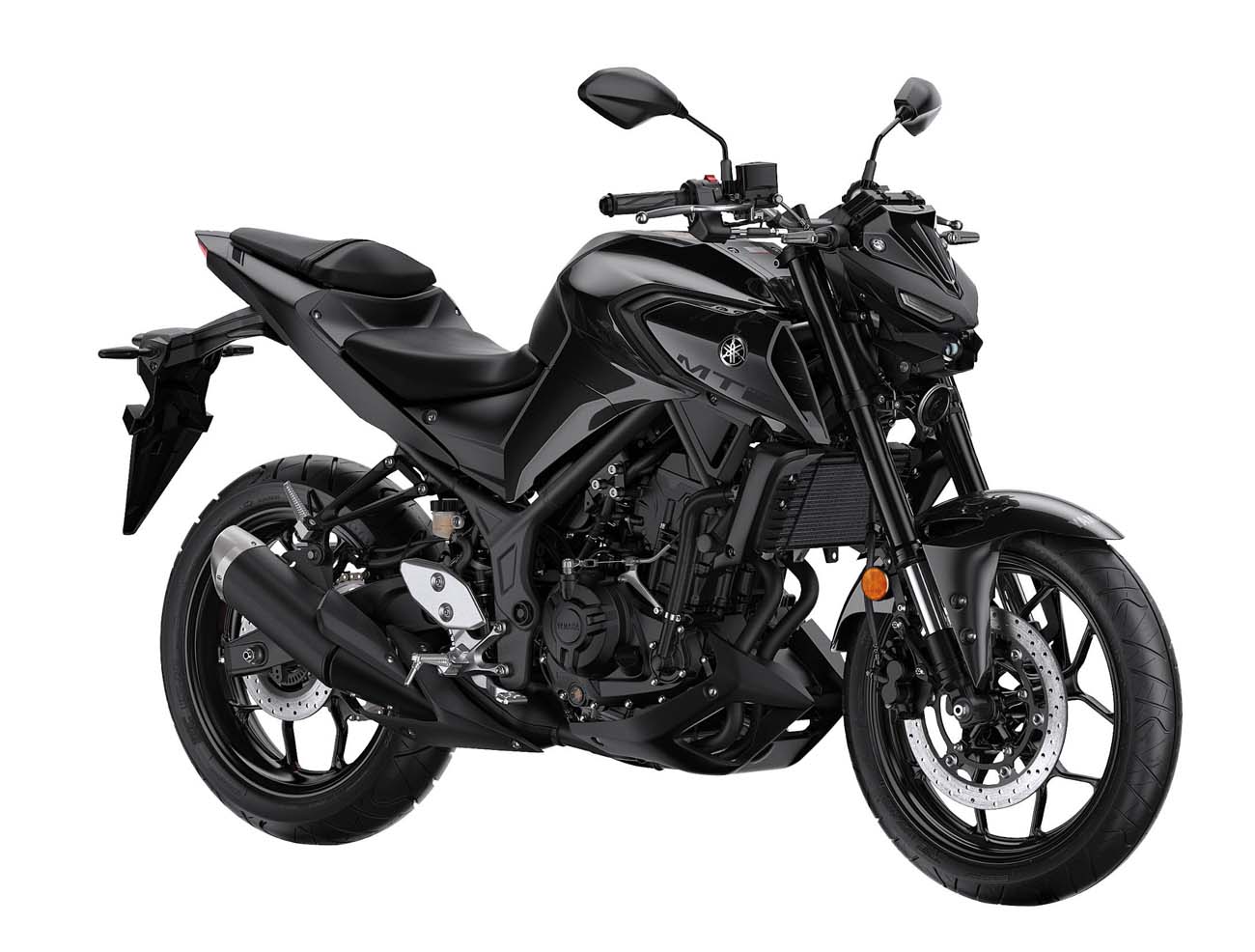

Yamaha MT-03 (2020-) technical specifications

Yamaha MT-03 technical specifications

Yamaha MT-03 is produced in 2020-. Engine is Four stroke, parallel twin cylinder, 4 valve per cylinder, displacement 321 cc / 19.5 cu-in , produces power 30.9 kW 41.4 hp @ 10750 rpm and 29.6 Nm / 22 lb-ft @ 9000 rpm. Yamaha MT-03 wet weight is 167 kg / 370 lbs. Yamaha MT-03 has 9 photos.

Technical specifications

+ Add to 'Compare list'
Model: MT-03
Years: 2020-
Engine: Four stroke, parallel twin cylinder, 4 valve per cylinder
Capacity: 321 cc / 19.5 cu-in
Bore x Stroke: 68.0 x 44.1mm
Cooling System: Liquid cooled
Compression Ratio: 11.2:1
Induction: Electronic Fuel Injection
Lubrication: Wet sump
Ignition: TCI: Transistor Controlled Ignition
Starting: Electric
Max Power: 30.9 kW 41.4 hp @ 10750 rpm
Max Torque: 29.6 Nm / 22 lb-ft @ 9000 rpm
Clutch: Wet, multiple-disc coil spring
Transmission: Constant Mesh, 6-speed
Final Drive: Chain
Frame: Delta box
Front Suspension: 37mm Non-adjustable KYB inverted forks.
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Linkage-assisted spring-preload adjustable KYB shock
Rear Wheel Travel: 124.4 mm / 4.9 in
Front Brakes: Single 298mm disc, ABS
Rear Brakes: Single 220mm disc. ABS
Front Tyre: 110/70-17
Rear Tyre: 140/70-17
Caster: 25º
Trail: 93.9 mm / 3.7 in
Dimension: Length 2090.4 mm / 82.3 in Width 718.8 mm / 28.3 in Height 1133 mm / 40.7 in
Wheelbase: 1379.2 mm / 54.3 in
Seat Height: 779.7 mm / 30.7 in
Ground Clearance: 160 mm / 6.2 in
Wet Weight: 167 kg / 370 lbs
Fuel Capacity: 14 Litres / 3.7 gal
