Technical specifications
|
| Model: |

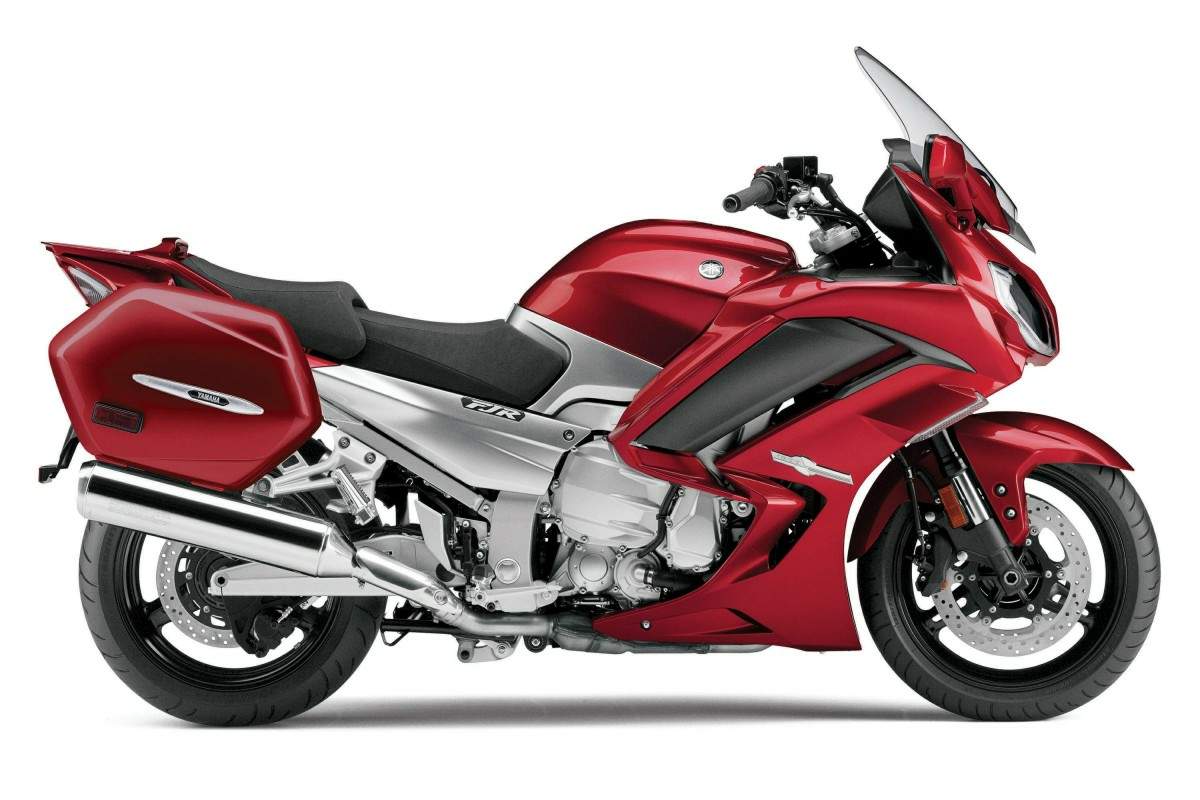

FJR 1300E / ES |
| Years: |
2014 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
1298 cc / 79.2 cu-in
|
|
Bore x Stroke:
|
79 x 66.2 mm
|
|
Compression Ratio:
|
10.8:1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Electronic Fuel Injection
|
|
Ignition:
|
TCI: Transistor Controlled Ignition
|
|
Starting:
|
Electric
|
|
Max Power:
|
145 hp / 105.7 kW @ 8500 rpm
|
|
Max Torque:
|
125 Nm / 13.7kgf-m @ 6000 rpm
|
|
Clutch:
|
Wet, multiple discs, hydraulic operated
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Frame:
|
Aluminium, twin spar
|
|
Front Suspension:
|
48mm upside-down telescopic fork w/adjustable preload, compression and rebound damping;
|
|
Front Wheel Travel:
|
137 mm / 5.3 in
|
|
Rear Suspension:
|
Single shock, link-type, w/adjustable preload and rebound damping;
|
|
Rear Wheel Travel:
|
129 mm / 4.9 in
|
|
Front Brakes:
|
2x 320mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 283mm disc 2 piston caliper
|
|
Front Tyre:
|
120/70 ZR17
|
|
Rear Tyre:
|
180/55 ZR17
|
|
Dimensions:
|
Length 2230 mm / 87.8 in. Width 749.3 mm / 29.5 in. Height 1455 mm / 57.3 in.
|
|
Wheelbase:
|
1544.3 mm / 60.8 in
|
|
Ground Clearance:
|
130 mm / 5.1 in.
|
|
Rake:
|
26.0°
|
|
Trail:
|
102 mm / 4.3 in.
|
|
Seat Height:
|
805 mm - 825.5 mm / 31.7 in - 32.5 in.
|
|
Dry Weight:
|
264 kg / 582 lbs
|
|
Wet Weight:
|
292 kg / 644 lbs
|
|
Fuel Capacity:
|
25 Liters / 6.6 gal
|
