Yamaha FJ 1200 (1986) technical specifications

Yamaha FJ 1200 technical specifications

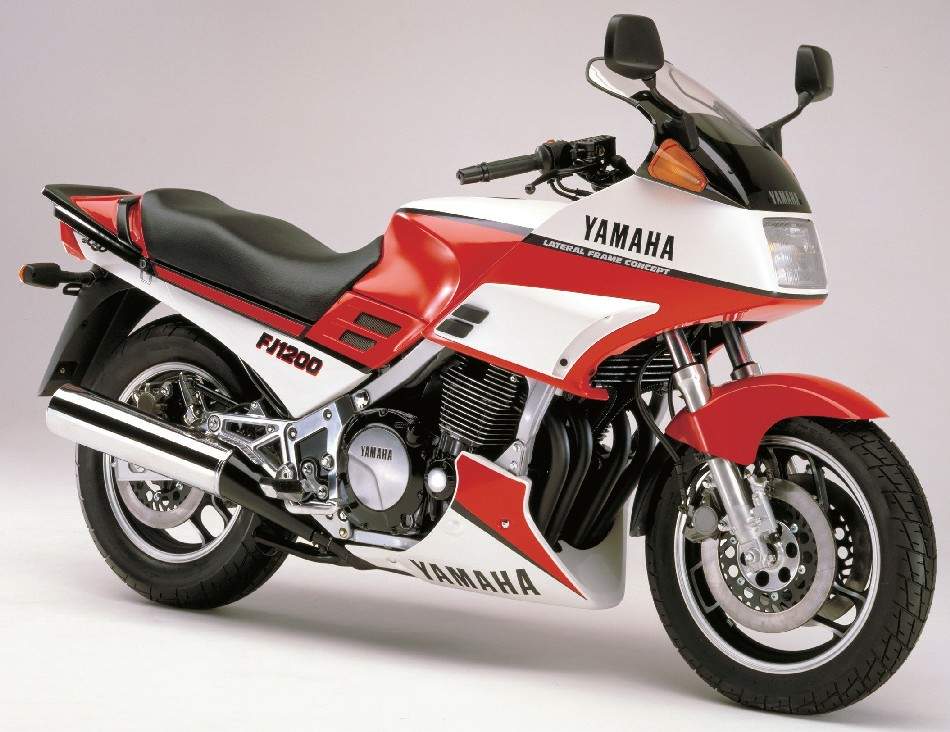

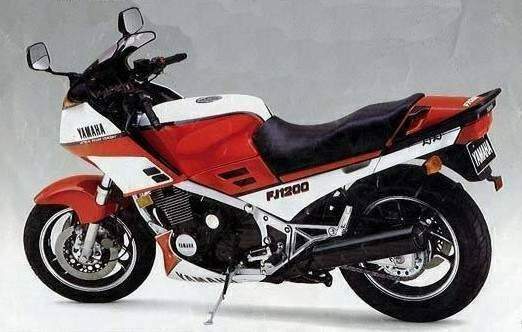

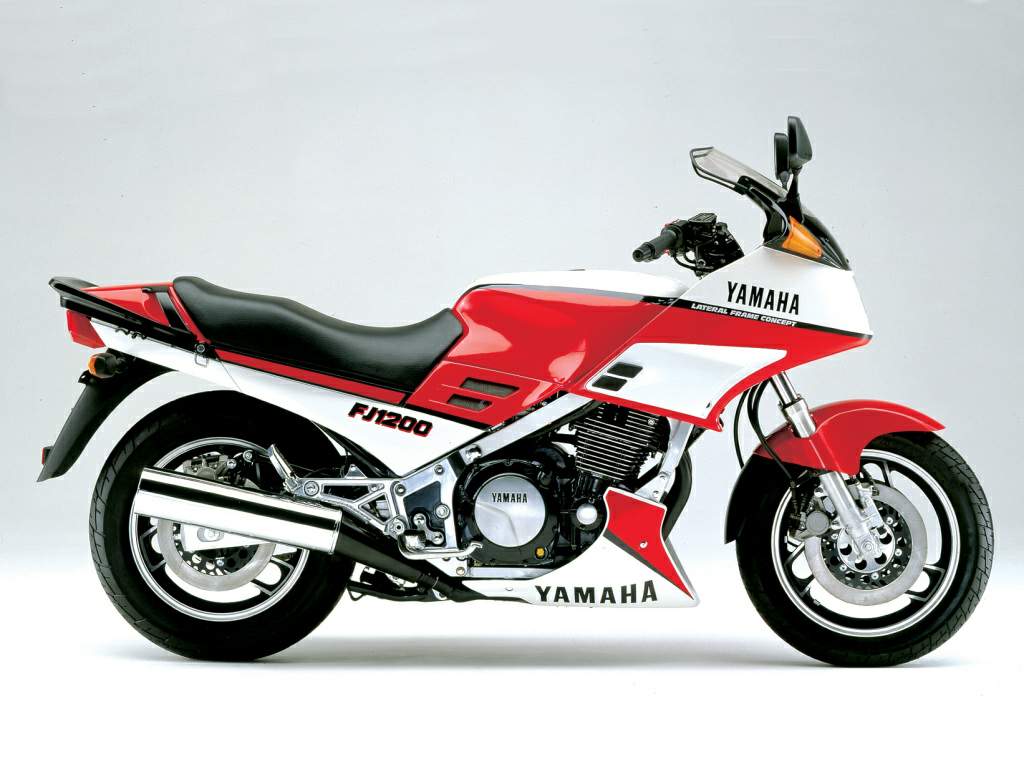

Yamaha FJ 1200 is produced in 1986. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 1188 cc / 72.5 cu in , produces power 130 hp / 94.9 kW @ 9000 rpm and 108 Nm / 79.6 lb-ft @ 7500 rpm. Yamaha FJ 1200 top speed is 244.3 km/h / 151.8 mph. Yamaha FJ 1200 weighs 245 kg / 540.1 lbs. Yamaha FJ 1200 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: FJ 1200
Years: 1986
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 1188 cc / 72.5 cu in
Bore x Stroke: 77 x 63.8 mm
Cooling System: Air/oil cooled,
Compression Ratio: 9.7:1
Lubrication: Wet sump
Engine Oil: 20W/40
Oil Capacity: 4.2 Litres
Induction: 4x 36mm Mikuni carbs
Ignition: TCI (Transistor Controlled Ignition)
Spark Plug: NGK, DP8EA-9
Starting: Starting
Max Power: 130 hp / 94.9 kW @ 9000 rpm
Max Power Rear Tyre: 112.5 hp @ 8600 rpm
Max Torque: 108 Nm / 79.6 lb-ft @ 7500 rpm
Clutch: Wet, multiple discs, hydraulic operated
Transmission: 5 Speed
Final Drive: Chain 2.353 (40/17)
Primary Red. System & Ratio: Spur Gear 1.750 (98/56)
Gear Ratio: 1st 2.857 (40/14) 2nd 2.000 (36/18) 3rd 1.571 (33/21) 4th 1.291 (31/24) 5th 1.115 (29/26)
Frame: Steel, twin spar
Front Suspension: Telescopic with 3-way preload and damping adjustment
Rear Suspension: Monocross monoshock 5-way preload and 5-way damping adjustment
Front Brakes: 2x 282mm discs 2 piston caliper
Rear Brakes: Single 282mm disc 2 piston caliper
Front Tyre: 120/80 V16
Rear Tyre: 150/80 V16
Dimensions: Length 2230mm / 87.8 in Width 775 mm / 30.5 in Height 1,245mm / 49.0 in
Wheelbase: 1490 mm / 58.7in
Seat Height: 780 mm / 30.7 in
Ground Clearance: 140 mm / 5.5 in
Dry Weight: 245 kg / 540.1 lbs
Wet Weight: 259 kg / 571 lbs
Fuel Capacity: 22 Litres / 5.8 gal
Consumption Average: 14.5 km/lit
Braking 60 - 0 / 100 - 0: 14.1 m / 40.0 m
Standing ¼ Mile: 10.9 sec / 200.3 km/h
Top Speed: 244.3 km/h / 151.8 mph
