Yamaha DT-3 250 (1973) technical specifications

Yamaha DT-3 250 technical specifications

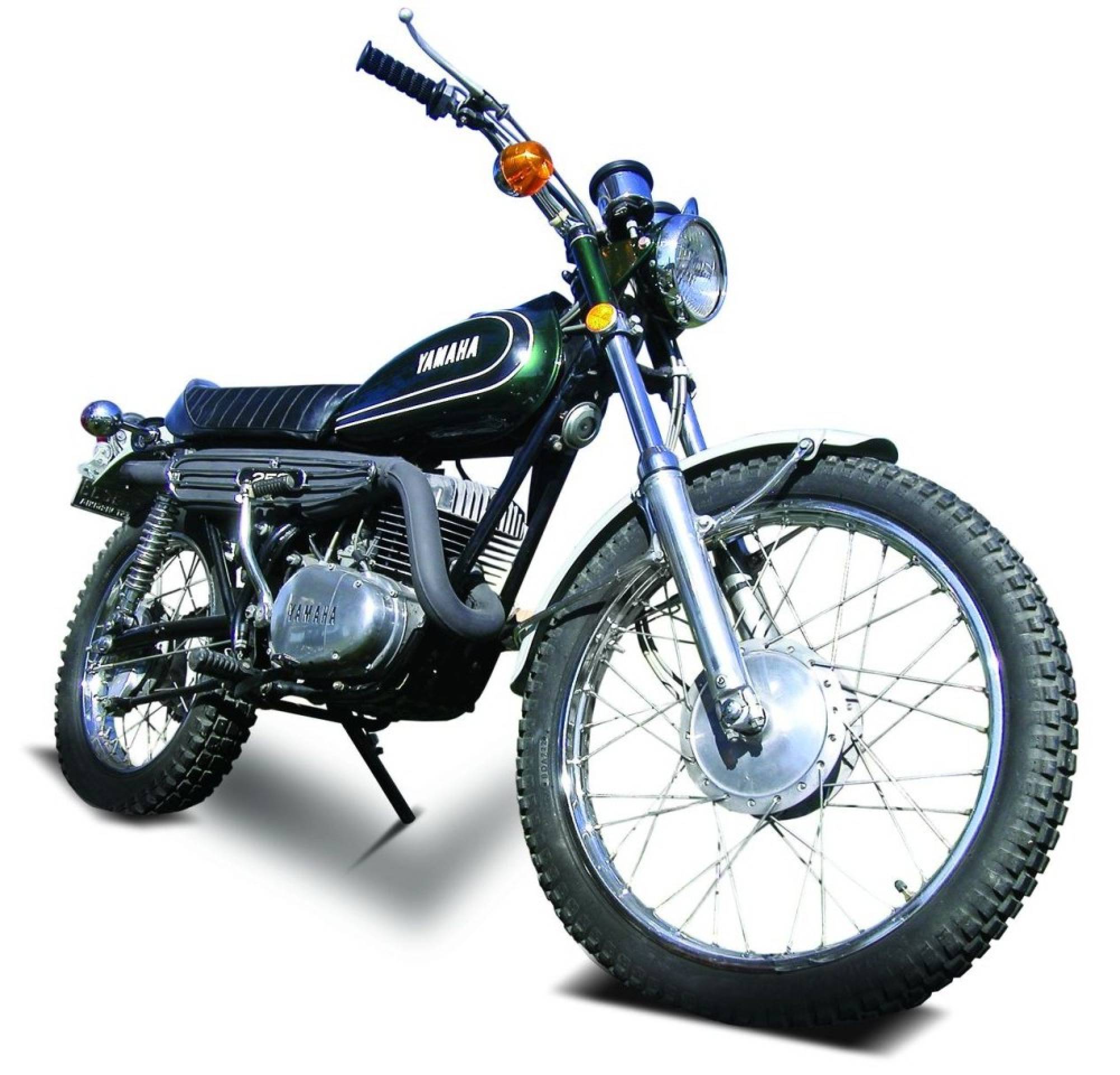

Yamaha DT-3 250 is produced in 1973. Engine is Two stroke, single cylinder, displacement 246 cc / 15.0 cu-in , produces power 24 hp / 17.8 kW @ 7000 rpm and 24.8 Nm / 18.3 lb-ft @ 6000 rpm. Yamaha DT-3 250 weighs 115kg / 253 lbs. Yamaha DT-3 250 has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: DT-3 250
Years: 1973
Engine: Two stroke, single cylinder
Capacity: 246 cc / 15.0 cu-in
Bore x Stroke: 70 x 64 mm
Cooling System: Air cooled
Compression Ratio: 6.8:1
Lubrication: Autolube
Induction: 26mm Mikuni carburetor
Ignition: Flywheel magneto
Starting: Kick
Max Power: 24 hp / 17.8 kW @ 7000 rpm
Max Torque: 24.8 Nm / 18.3 lb-ft @ 6000 rpm
Transmission: 5 Speed
Final Drive: Chain
Frame: Duplex cradle
Front Suspension: Telescopic forks
Rear Suspension: Dual shocks
Front Brakes: Drum
Rear Brakes: Drum
Front Tyre: 3.25-19
Rear Tyre: 4.00-18
Dimensions: Length 2100.5 mm / 82.7 in Width 889.0 mm / 35.0 in Height 1160.7 mm / 45.7 in
Wheelbase: 1389.3 mm / 54.7 in
Seat Height: 813 mm / 32 in
Ground Clearance: 254 mm / 10.0 in
Dry Weight: 115kg / 253 lbs
Fuel Capacity: 9 Litres / 2.5 US gal
