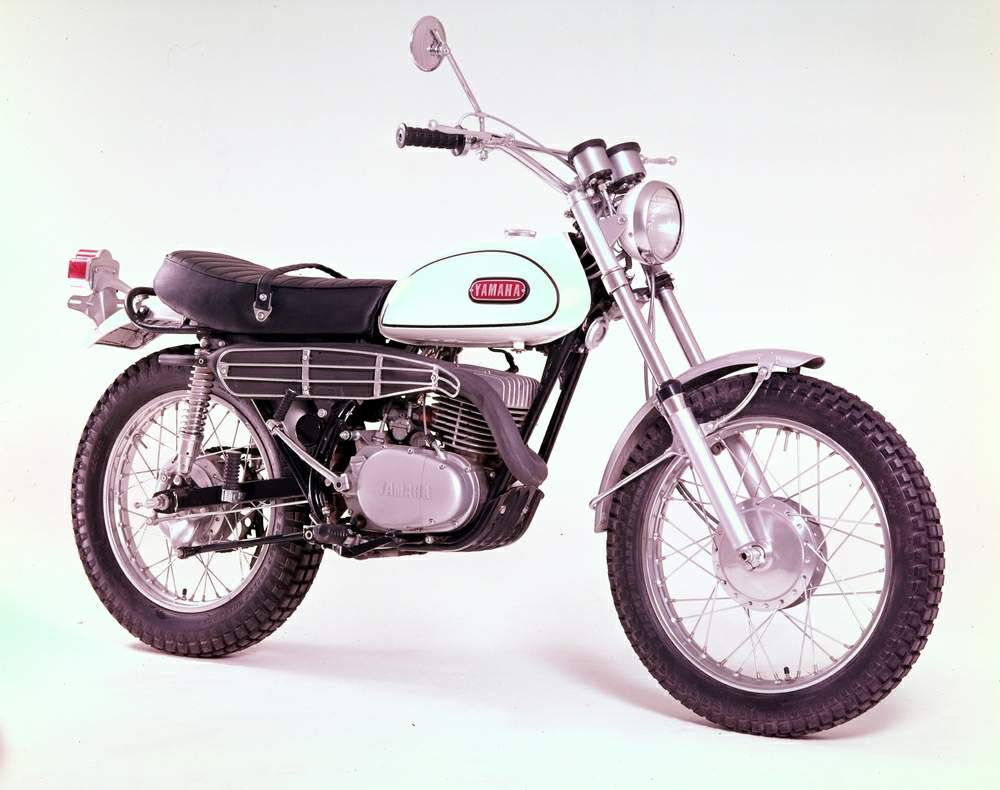

Yamaha DT-1 250 (1968-70) technical specifications

Yamaha DT-1 250 is produced in 1968-70. Engine is Two stroke, single cylinder, displacement 246 cc / 15.0 cu-in , produces power 22.8 hp / 16.8 kW @ 7000 rpm and 23.7 Nm / 17.5 lb-ft @ 6500 rpm. Yamaha DT-1 250 weighs 111 kg / 245 lbs. Yamaha DT-1 250 has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	DT-1 250
Years:	1968-70
Engine:	Two stroke, single cylinder
Capacity:	246 cc / 15.0 cu-in
Bore x Stroke:	70 x 64 mm
Cooling System:	Air cooled
Compression Ratio:	6.4:1
Lubrication:	Autolube
Induction:	Carburetor
Ignition:	Flywheel magneto
Starting:	Kick
Max Power:	22.8 hp / 16.8 kW @ 7000 rpm
Max Torque:	23.7 Nm / 17.5 lb-ft @ 6500 rpm
Transmission:	5 Speed
Final Drive:	Chain
Frame:	Duplex cradle
Front Suspension:	Telescopic forks
Rear Suspension:	Dual shocks
Front Brakes:	Drum
Rear Brakes:	Drum
Front Tyre:	3.25 -19
Rear Tyre:	4.00 -18
Dimensions:	Length 2100.5 mm / 82.7 in Width 889.0 mm / 35.0 in Height 1160.7 mm / 45.7 in
Wheelbase:	1389.3 mm / 54.7 in
Ground Clearance:	254 mm / 10.0 in
Dry Weight:	111 kg / 245 lbs
Fuel Capacity:	9 Litres / 2.5 US gal
