Victory Vision Tour (2011-12) technical specifications

Victory Vision Tour technical specifications

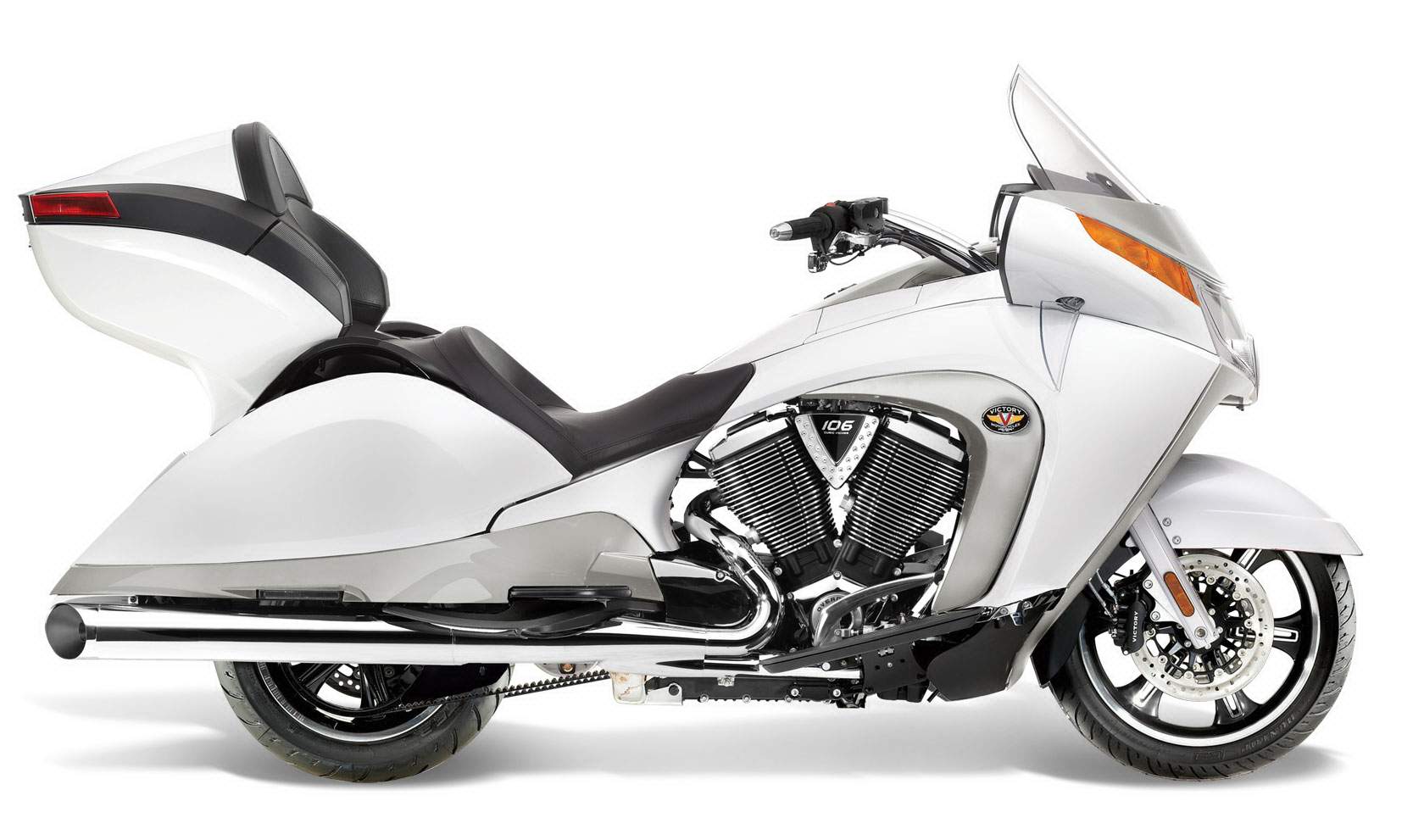

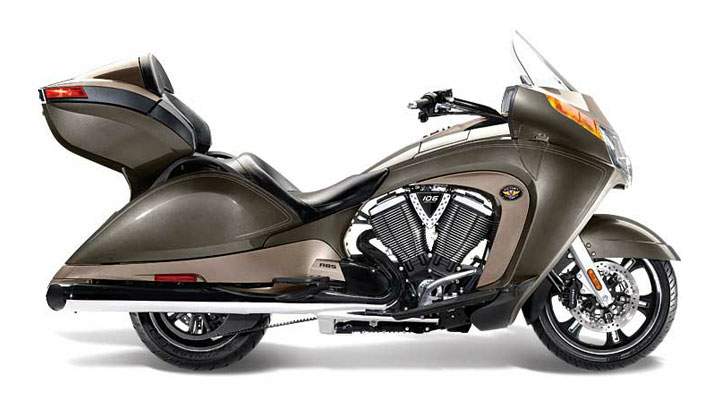

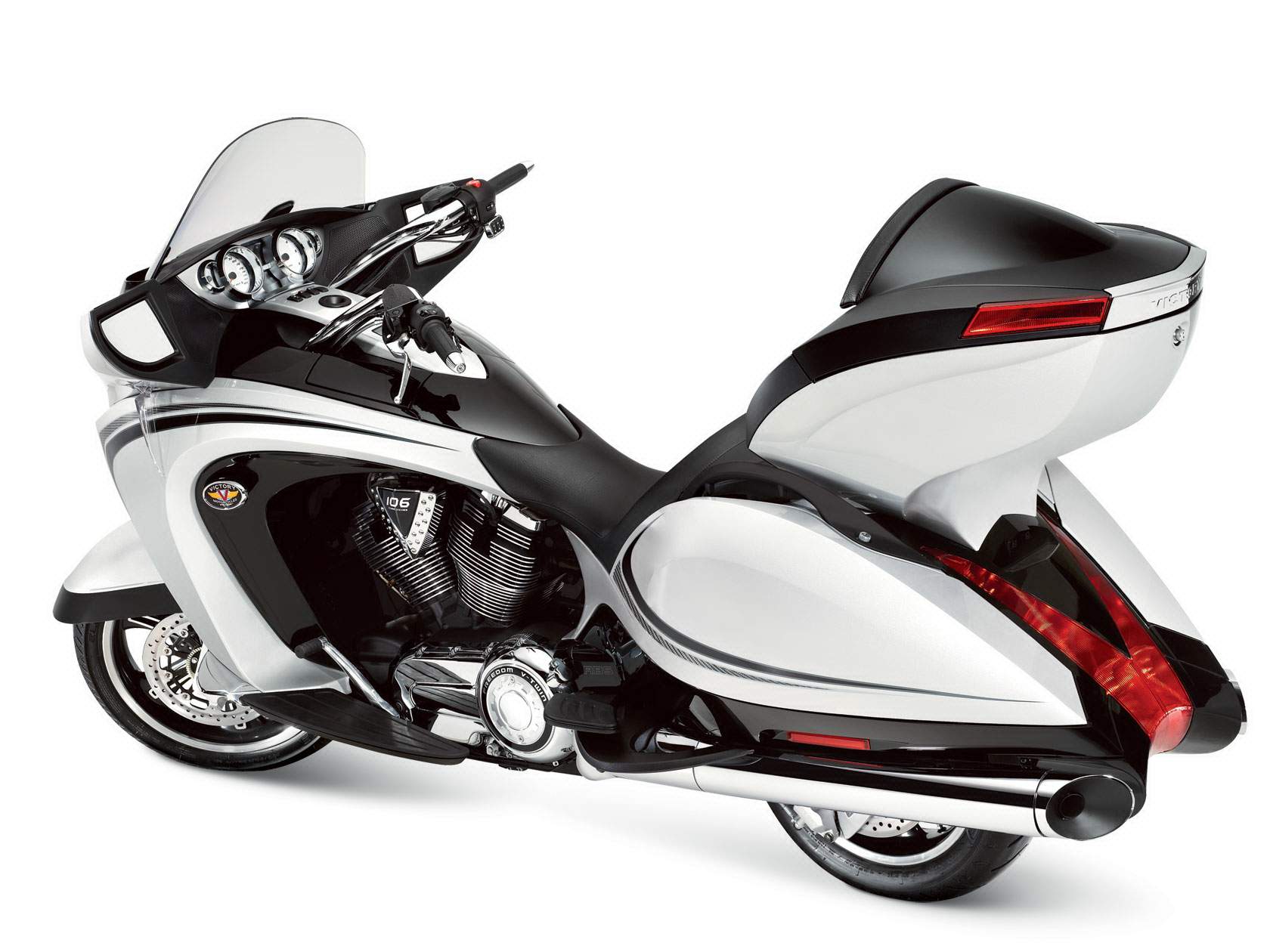

Victory Vision Tour is produced in 2011-12. Engine is Four stroke, 50° V twin SOHC, 4 valves per cylinder, displacement 1731 cc /106 cub in. Victory Vision Tour weighs 394 kg / 869 lbs. Victory Vision Tour has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Vision Tour
Years: 2011-12
Engine: Four stroke, 50° V twin SOHC, 4 valves per cylinder
Capacity: 1731 cc /106 cub in.
Bore x Stroke: 101 x 108 mm
Compression Ratio: 9.4:1
Cooling System: Air cooled / oil
Fuel System: Electronic Fuel Injection with dual 45mm throttle bodies
Starting: Electric
Battery: 12V, 18 Ah
Clutch: Wet, multi-plate
Exhaust: Split, dual exhaust with crossover
Max Torque: 146 Nm / 14.9 kgf-m / 108 ft-lb
Transmission: 6 Speed
Final Drive: Carbon Fiber Reinforced Belt
Rake: 29°
Trail: 137 mm / 5.4 in.
Dimensions: Length: 2702 mm / 106.4 in.
Wheelbase: 1670 mm / 65.7 in.
Ground Clearance: 148 mm / 5.8 in.
Seat Height: 673 mm / 26.5 in
Front Suspension: 43 mm Inverted cartridge telescopic fork
Front Wheel travel: 130 mm / 5.1 in.
Rear Suspension: Single, mono-tube gas forged and cast aluminum with constant-rate linkage, air adjustable
Rear Wheel Travel: 120 mm / 4.7 in.
Front Brakes: 2 x 300 mm floating rotor 4 piston caliper, ABS
Rear Brakes: Single 300 mm floating rotor 2 piston caliper, ABS
Front Wheel: 3.5 x 18 in.
Front Tyre: 130/70 R18, Dunlop Elite 3
Rear Wheel: 5.0 x 16 in.
Rear Tyre: 180/60 R16, Dunlop Elite 3
GVWR: 643 kg / 1414 lbs
Dry-Weight: 394 kg / 869 lbs
Fuel Capacity: 22.7 L / 6 US gal
Oil Capacity: 4.73 L / 5.0 US Quarts
Consumption Average: 5.4 L/100 km / 18.5 km/l / 43.6 US mpg
Top Speed (est.): 200 km/h / 124 mph
Colours: Solid black, Sunset red with black pinstripe, Gold mist
