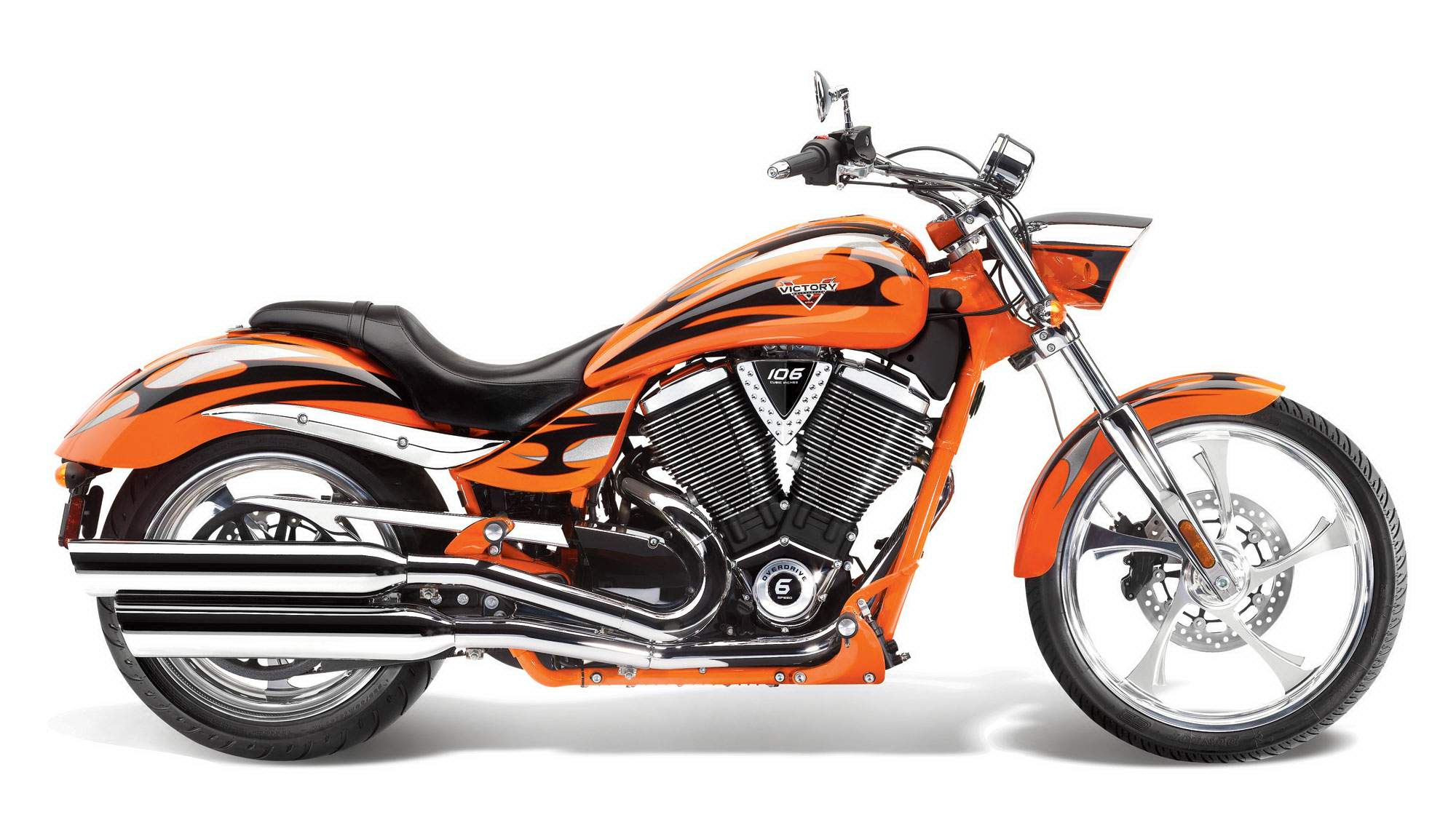

Victory Jackpot (2012-13) technical specifications

Victory Jackpot technical specifications

Victory Jackpot is produced in 2012-13. Engine is Four stroke, 50° V twin SOHC, 4 valves per cylinder, displacement 1634 cc / 100 cu-in Victory Jackpot weighs 294 kg / 649 lbs. Victory Jackpot has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Jackpot
Years: 2012-13
Engine: Four stroke, 50° V twin SOHC, 4 valves per cylinder
Capacity: 1634 cc / 100 cu-in
Bore x Stroke: 101 x 102 mm
Cooling System: Air / oil
Compression Ratio: 9.8:1
Induction: Electronic Fuel Injection with 44mm throttle bodies
Starting: Electric
Battery: 12 volts / 18 amp hours
Clutch: Wet, multi-plate
Transmission: 6 Speed
Final Drive: Carbon Fiber Reinforced Belt
Front Suspension: 43mm Inverted cartridge telescopic fork
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Single, mono-tube gas forged and cast aluminum w/ rising-rate linkage
Rear Wheel Travel: 100 mm / 3.9 in
Front Brakes: Single 300mm floating rotor 4 piston caliper
Rear Brakes: Single 300mm floating rotor 2 piston caliper
Front Tyre: 80/90 R21
Rear Tyre: 250/40 R18
Seat Height: 653 mm / 25.7 in
GVWR: 531 kg / 1171 lbs
Dry-Weight: 294 kg / 649 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
