Victory Hammer S (2011-12) technical specifications

Victory Hammer S technical specifications

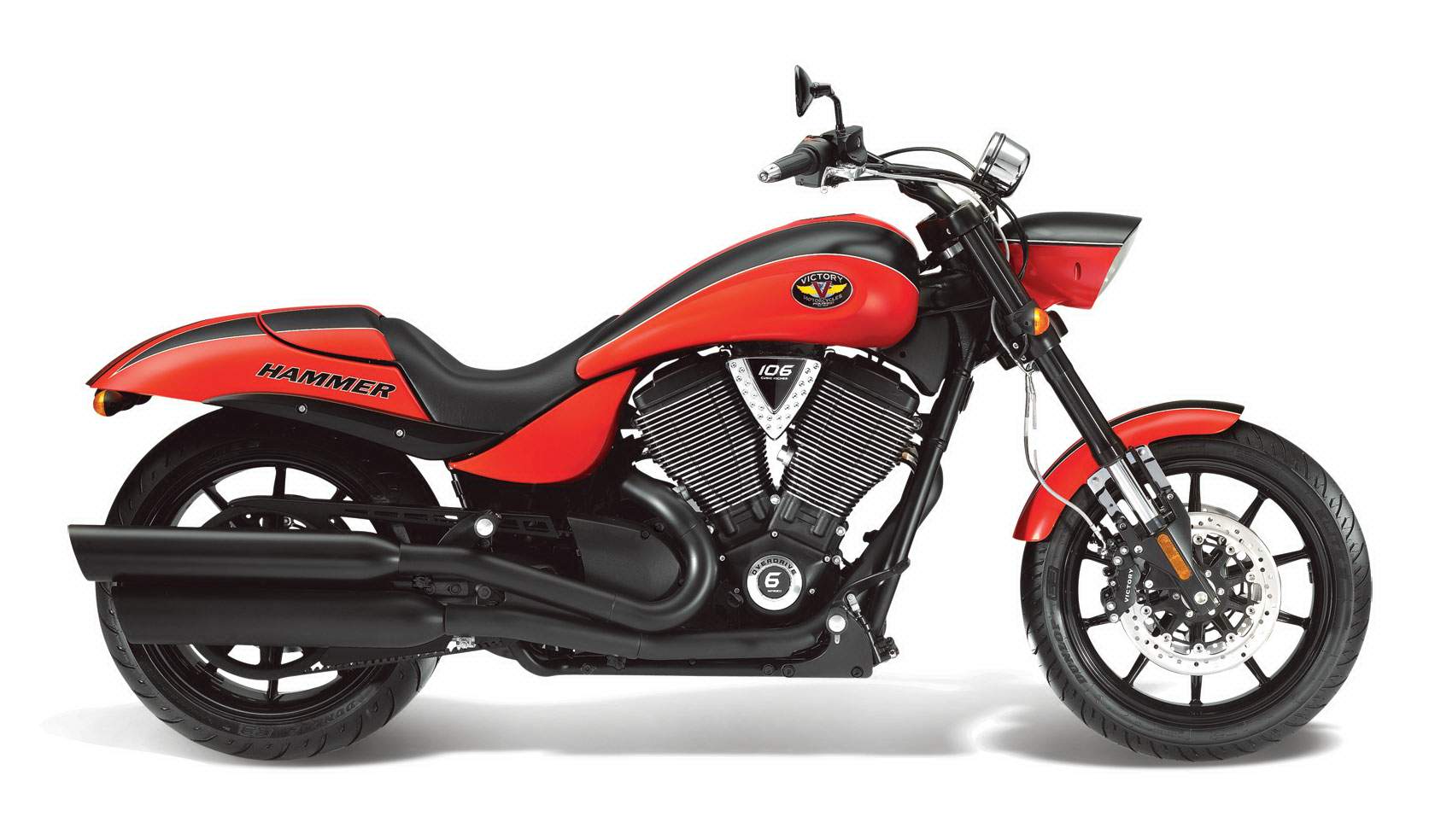

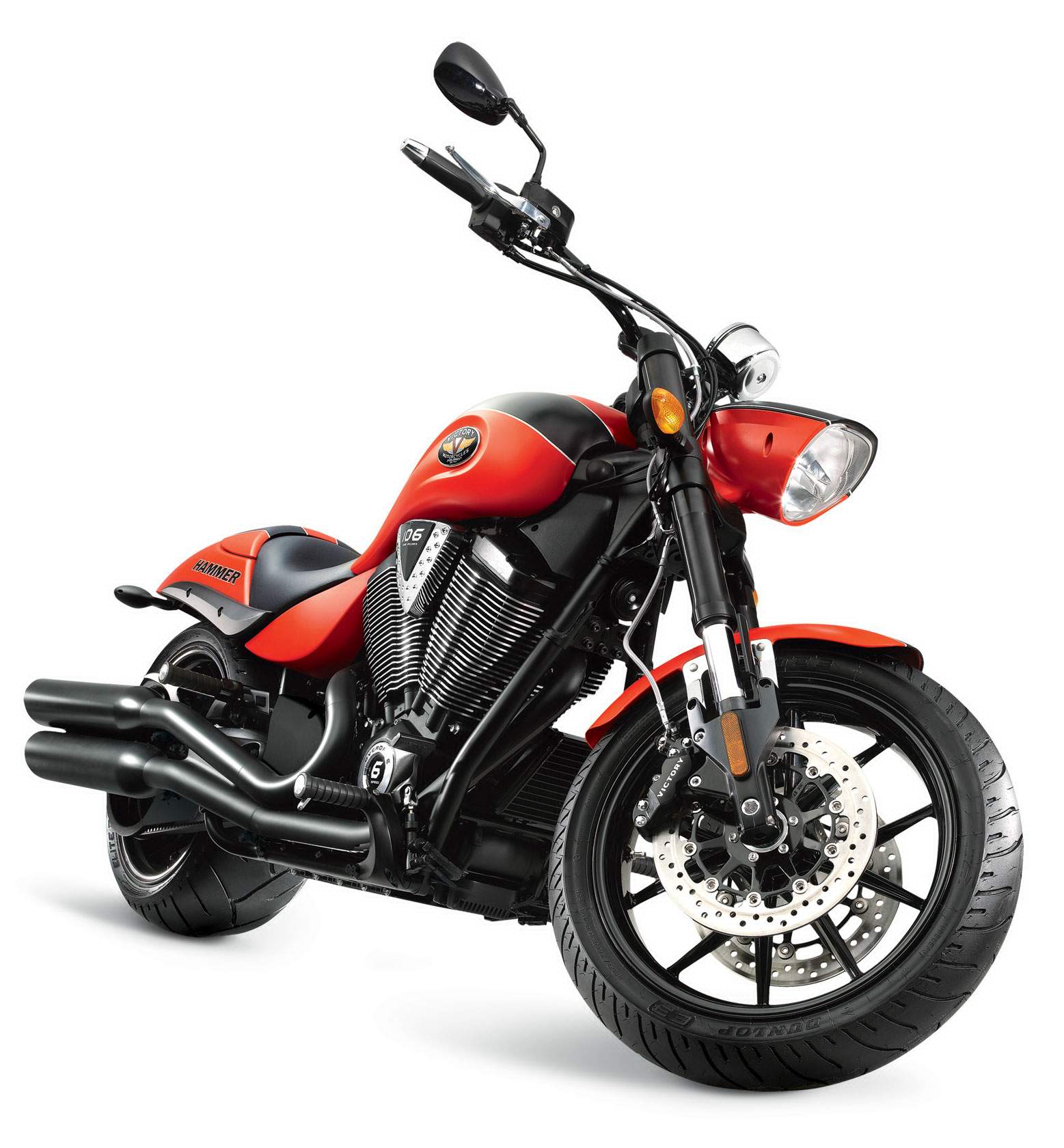

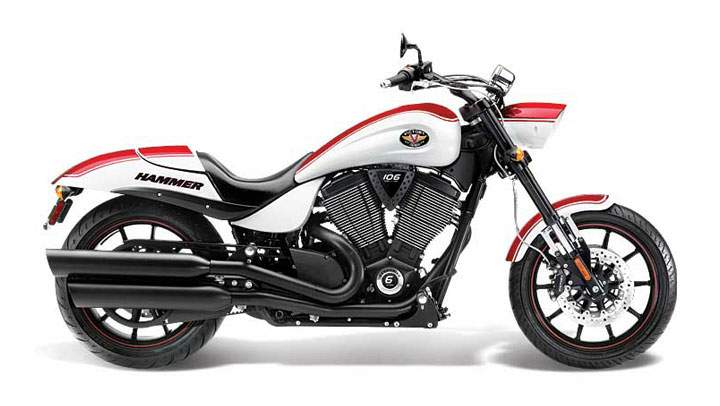

Victory Hammer S is produced in 2011-12. Engine is Four stroke, 50° V twin SOHC, 4 valves per cylinder, displacement 1731 cc / 106 cu-in , produces power 96.9 hp / 71.3 kW and 153 Nm / 15.6 kg-m. Victory Hammer S weighs 305 kg / 672 lbs. Victory Hammer S has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Hammer S
Years: 2011-12
Engine: Four stroke, 50° V twin SOHC, 4 valves per cylinder
Capacity: 1731 cc / 106 cu-in
Bore x Stroke: 101 x 108 mm
Cooling System: Air / oil
Compression Ratio: 9.4:1
Induction: Fuel Injection with dual 45mm throttle body
Oil Capacity: 5.0 qts / 4.73 ltr
Exhaust: Staggered slash-cut dual exhaust with crossover
Battery: 12 volts / 18 amp hours
Starting: Electric
Clutch: Wet, multi-plate
Max Power: 96.9 hp / 71.3 kW
Max Torque: 153 Nm / 15.6 kg-m
Transmission: 6 Speed
Final Drive: Carbon Fiber Reinforced Belt
Primary Drive: Gear drive with torque compensator
Front Suspension: Inverted cartridge telescopic fork, 43 mm diameter
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Single, mono-tube gas, cast aluminum with rising rate linkage, preload adjustable spring
Rear Wheel Travel: 76 mm / 3.0 in
Front Brakes: Single 300mm floating rotor 4 piston caliper
Rear Brakes: Single 300mm floating rotor 2 piston caliper
Front Tyre: 130/70R18
Rear Tyre: 250/40R18
Rakem: 33°
Trail: 140 mm / 5.5 in
Dimensions: Length 93.8 in / 2382 mm
Wheelbase: 1689 mm / 66.5 in
Seat Height: 660 mm / 26 in
GVWR: 532 kg / 1173 lbs
Ground Clearance: 135 mm / 5.3 in
Dry Weight: 305 kg / 672 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
