Victory Hammer (2007-08) technical specifications

Victory Hammer technical specifications

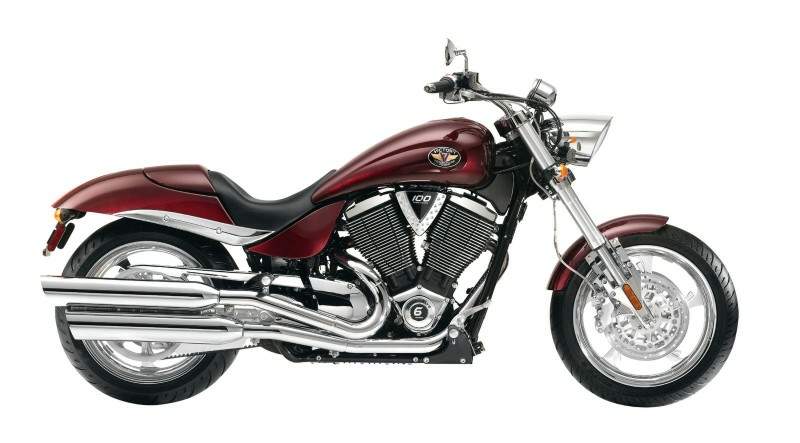

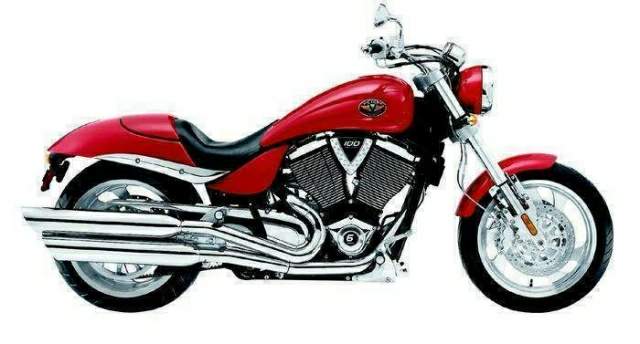

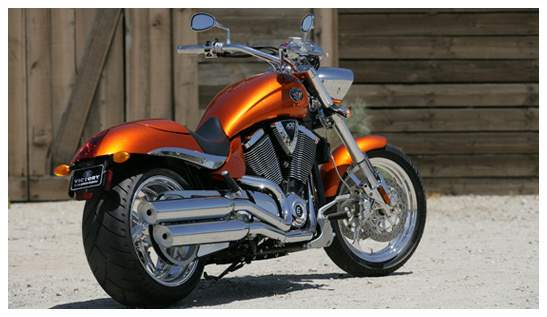

Victory Hammer is produced in 2007-08. Engine is Four stroke, 50° V twin SOHC, 4 valves per cylinder, displacement 1634 cc / 100 cu-in Victory Hammer weighs 305 kg / 672 lbs. Victory Hammer has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Hammer
Years: 2007-08
Engine: Four stroke, 50° V twin SOHC, 4 valves per cylinder
Capacity: 1634 cc / 100 cu-in
Bore x Stroke: 101 x 102 mm
Cooling System: Air / oil
Compression Ratio: 9.8:1
Induction: Electronic Fuel Injection with 44mm throttle bodies
Starting: Electric
Battery: 12 volts / 18 amp hours
Clutch: Wet, multi-plate
Transmission: 6 Speed
Final Drive: Carbon Fiber Reinforced Belt
Front Suspension: 43mm Inverted cartridge telescopic fork
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Single, mono-tube gas forged and cast aluminum w/ rising-rate linkage
Rear Wheel Travel: 100 mm / 3.9 in
Front Brakes: 2x 300mm floating rotor 4 piston caliper
Rear Brakes: Single 300mm floating rotor 2 piston caliper
Front Wheel: 18 x 3.5 in
Rear Wheel: 18 x 8.5 in
Front Tyre: 130/70 R18
Rear Tyre: 250/40 R18
Rake: 32.7°
Trail: 140 mm / 5.5 in
Dimensions: Length 93.1 in / 2,366 mm
Wheelbase: 1669 mm / 65.7 in
Seat Height: 660 mm / 26 in
Ground Clearance: 135 mm / 5.3 in
Dry Weight: 305 kg / 672 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
