Technical specifications
|
| Model: |
GTS 300 HPE Touring |
| Years: |
2019 |
|

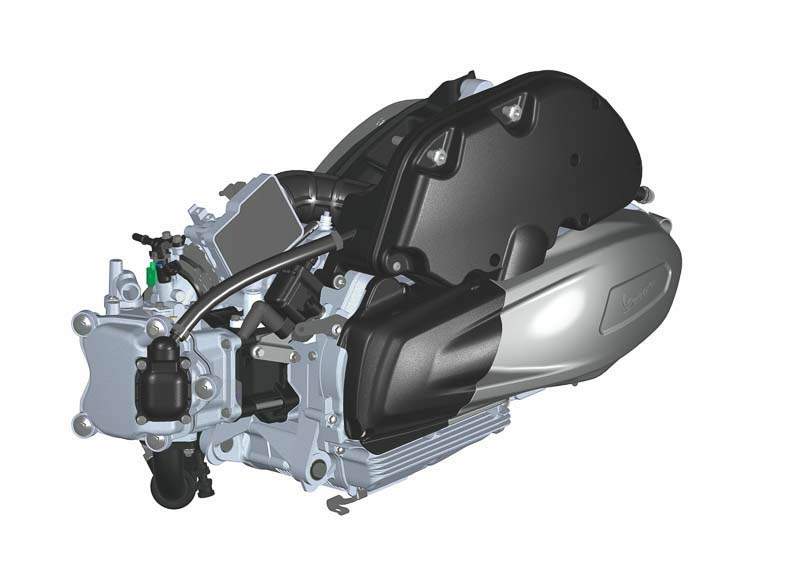

Engine:
|
Four stroke single cylinder, SOHC, 4 valve
|
|
Capacity:
|
278 cc / 18.2 cub in
|
|
Bore x Stroke:
|
75 mm x 63 mm
|
|
Cooling:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump, chain driven lube pump
|
|
Ignition:
|
Magneti Marelli MIUG4 ECU
|
|
Starting:
|
Electric
|
|
Max Power:
|
17.5 kW / 23.8 hp @ 8250 rpm
|
|
Max Torque:
|
26 Nm / 19.2 lb-ft @ 5250 rpm
|
|
Clutch:
|
Automatic, dry centrifuge with damper buffers
|
|
Transmission:
|
CVT with torque server
|
|
Final Drive:
|
Belt
|
|
Frame:
|
Sheet metal body with welded reinforcements
|
|
Front Suspension:
|
Single sided form with shock
|
|
Rear Suspension:
|
Mono shock
|
|
Front Brakes:
|
Single 220 mm disc - ABS/ASR
|
|
Rear Brakes:
|
Single 220 mm disc - ABS/ASR
|
|
Front Tyre:
|
120/70 - 12
|
|
Rear Tyre:
|
130/70 - 12
|
|
Seat Height:
|
790 mm / 31.1 in
|
|
Dry Weight:
|
148 kg / 326 lbs
|
|
Fuel Capacity:
|
7 Litres / 1.8 US gal
|
