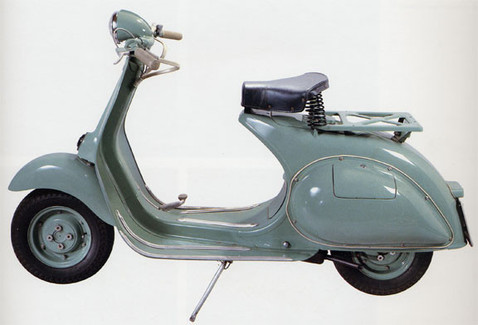

Vespa 125 U (1953) technical specifications
Vespa 125 U is produced in 1953. Engine is Two stroke, single cylinder, displacement 124.8 cc 7.6 cub in , produces power 3.3 kW / 4.5 hp @ 5800 rpm. Vespa 125 U top speed is 65 km/h / 40 mph. Vespa 125 U weighs 78 kg / 172 lbs. Vespa 125 U has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 125 U |
| Years: | 1953 |
| Production: | 7 000 units |
| Engine: | Two stroke, single cylinder |
| Capacity: | 124.8 cc 7.6 cub in |
| Bore x Stroke: | 56.5 x 49.8 mm |
| Carburetor: | Dell,Orto TA 17B |
| Compression Ratio: | 6.4:1 |
| Cooling: | Air cooled, forced |
| Fuel Mixture: | 1:20 |
| Ignition: | Flywheel, magneto |
| Starting: | Kick start |
| Battery: | 6V AC |
| Clutch: | Wet, multiplate |
| Max Power: | 3.3 kW / 4.5 hp @ 5800 rpm |
| Transmission: | 3 speed |
| Final Drive: | Direct drive |
| Frame: | Pressed sheet steel, streamlined monocoque structure |
| Front Suspension: | Variable flexible coil spring |
| Rear Suspension: | Double hydraulic shock absorbers |
| Front Brakes: | 124 mm drum |
| Rear Brakes: | 126 mm drum |
| Wheels: | Interchangeable |
| Front Tyre: | 3.5 x 8" |
| Rear Tyre: | 3.5 x 8" |
| Dimensions: | Length: 1680 mm / 66.1 in Width: 790 mm / 31.1 in Height: 1170 mm / 46.4 in |
| Wheelbase: | 1160 mm / 45.7 in |
| Seat height: | 775 mm / 30.5 in |
| Dry Weight: | 78 kg / 172 lbs |
| Fuel Capacity: | 6.25 L / 1.65 US gal |
| Consumption average: | 2 L/100 km / 50 km/l / 118 US mpg |
| Top Speed: | 65 km/h / 40 mph |
