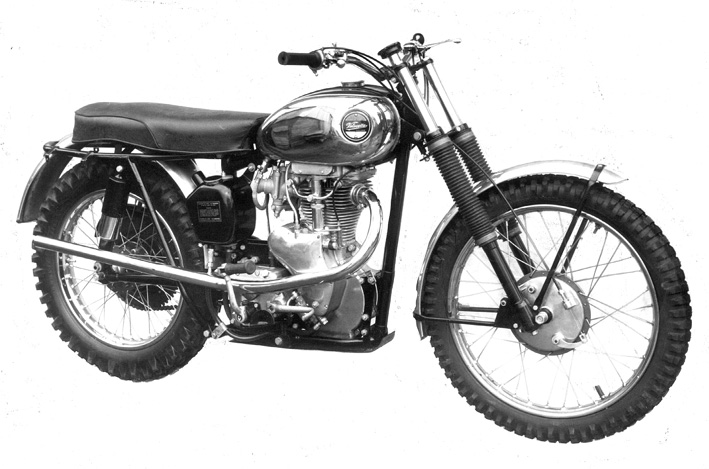

Velocette Viper Scrambler (1958-68) technical specifications
Velocette Viper Scrambler is produced in 1958-68. Engine is Four stroke, single cylinder, displacement 349 cc / 30.5 cub in , produces power 26 kW / 29 hp @ 7000 rpm. Velocette Viper Scrambler wet weight is 152 kg / 330 lbs. Velocette Viper Scrambler has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Viper Scrambler |
| Years: | 1958-68 |
| Engine: | Four stroke, single cylinder |
| Capacity: | 349 cc / 30.5 cub in |
| Bore x Stroke: | 72 x 86 mm |
| Compression Ratio: | 9.3:1 |
| Cooling System: | Air cooled |
| Lubrication: | Dry sump |
| Carburetor: | Amal TT Monobloc |
| Exhaust: | Single, megaphone silencer |
| Spark Plug: | KLG FE100 / Champion N3 / NGK B8ES, Lodge 3HLN |
| Battery: | 6V |
| Ignition: | BTH racing magneto |
| Starting: | Kick start |
| Max Power: | 26 kW / 29 hp @ 7000 rpm |
| Clutch: | Dry, three-plate |
| Transmission: | 4 Speed constant mesh, close ratio, foot controlled |
| Gear Ratios: | 1st 17.9 / 2nd 12.46 / 3rd 9.5 / 4th 7.85:1 |
| Final Drive: | Chain |
| Dimensions: | Length: 2260 mm / 89.0 in Width: 890 mm / 34.5 in Height: 1090 mm / 43.0 in. |
| Wheelbase: | 1365 mm / 53.75 in |
| Ground Clearance: | 165 mm / 6.5 in. |
| Seat Height: | 838 mm / 33 in. |
| Front Suspension: | Telescopic fork with hydraulic compression and rebound damping |
| Rear Suspension: | Woodhead-Monroe springs with hydraulic damping, later Armstrong and Girling, adjustable |
| Front Brakes: | 7 x 1 in., drum |
| Rear Brakes: | 7 x 1 in., drum |
| Wheels: | Light alloy rims, spokes |
| Front Wheel: | WM1 x 21 |
| Rear Wheel: | WM3 x 19 |
| Front Tyre: | 3.00 x 21 in |
| Rear Tyre: | 4.00 x 19 in |
| Turning Radius: | 4.9 m / 16 ft. |
| Rake: | 27° |
| Wet Weight: | 152 kg / 330 lbs |
| Fuel Capacity: | 11 L / 3 US gal |
| Colours: | Black/chrome, Red/black, White/black |
