Velocette Veeline (1958-60) technical specifications

Velocette Veeline technical specifications

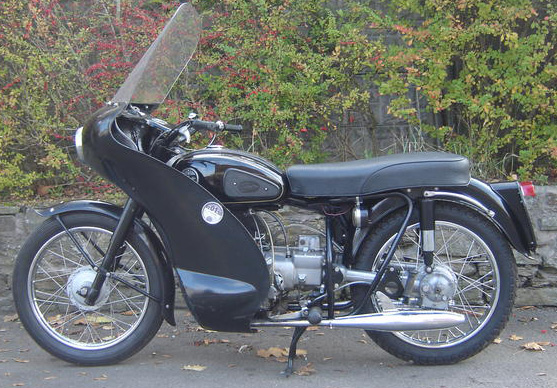

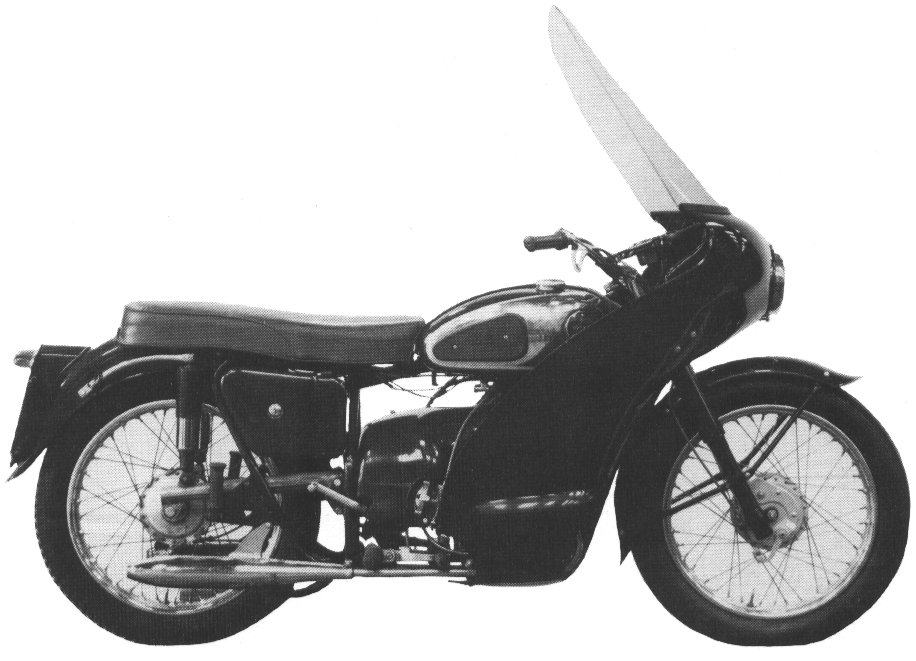

Velocette Veeline is produced in 1958-60. Engine is Four stroke, flat twin cylinder, displacement 192 cc / 11.7 cub in , produces power 8.8 kW / 12 hp @ 7000 rpm. Velocette Veeline weighs 125 kg / 276 lbs. Velocette Veeline has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Veeline
Years: 1958-60
Engine: Four stroke, flat twin cylinder
Capacity: 192 cc / 11.7 cub in
Bore x Stroke: 50 x 49 mm
Compression Ratio: 8.0:1
Cooling System: Air cooled
Lubrication: Wet sump
Carburetor: 2 x Amal 363 monobloc
Exhaust: Twin with torpedo shaped silencers
Ignition: Coil
Battery: 6V, 42W
Starting: Kick start
Max Power: 8.8 kW / 12 hp @ 7000 rpm
Clutch: Dry, three-plate
Transmission: 4 Speed constant mesh
Final Drive: Shaft
Gear Ratio: 1st 2.078 / 2nd 1.353 / 3rd 1.0 / 4th 0.739:1
Frame: Duplex frame with single top tube
Wheelbase: 1300 mm / 51.2 in
Seat height: 737 mm / 29 in
Ground Clearance: 152 mm / 6 in
Front Suspension: Telescopic fork
Rear Suspension: Woodhead-Monroe springs with hydraulic damping
Front Brakes: 5 x 1" drum
Rear Brakes: 5 x 1" drum
Wheels: Spoked
Front Tyre: 3.25 x 18"
Rear Tyre: 3.25 x 18"
Fuel Capacity: 13.6 L / 3.6 US gal
Dry Weight: 125 kg / 276 lbs
Recommended Top Speed: 97 km/h / 60 mph
Colours: Black, green
Source: Wikipedia
