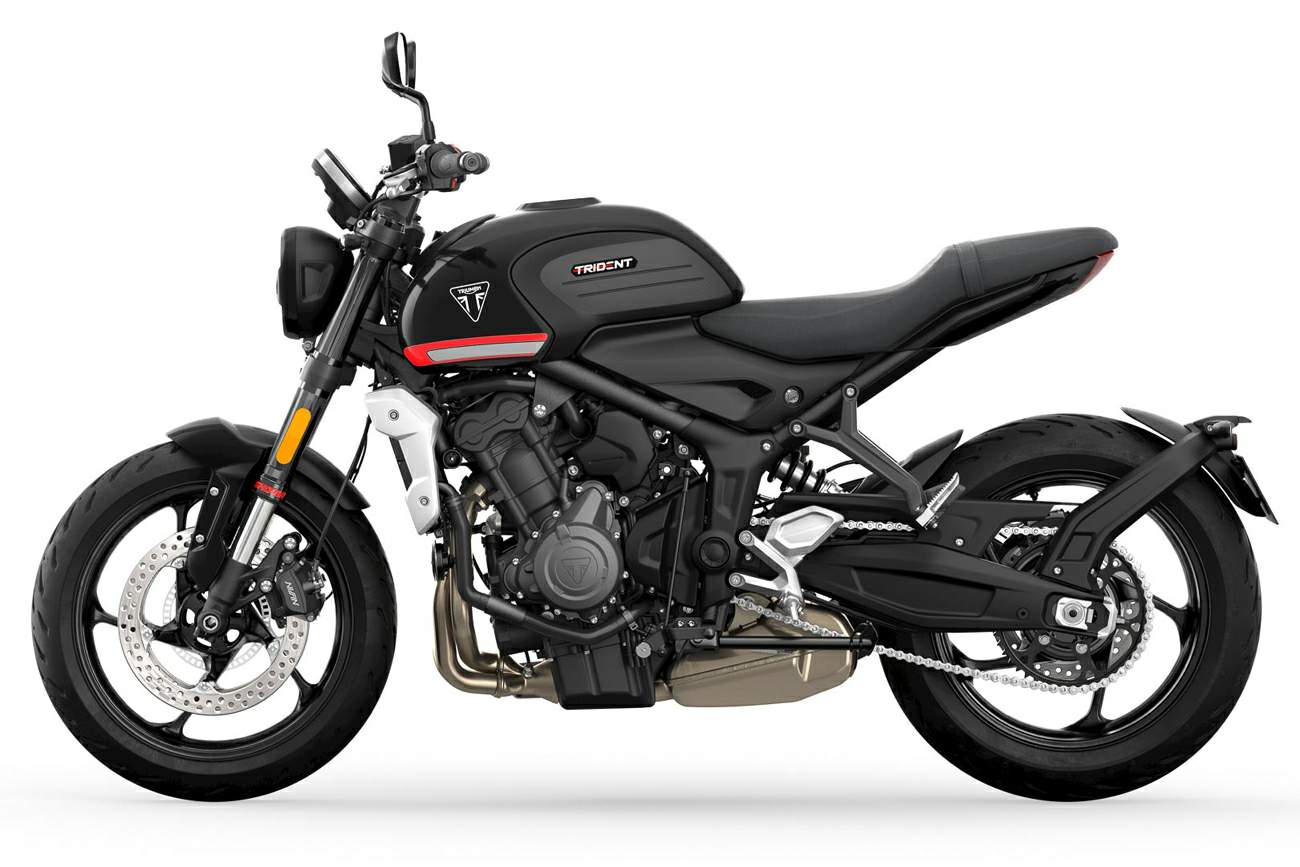

Triumph Trident 660 (2021) technical specifications

Triumph Trident 660 technical specifications

Triumph Trident 660 is produced in 2021. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder, displacement 660 cc / 40.2 cu-in , produces power 80 hp / 60 kW @ 10250 rpm and 64 Nm / 47 lb-ft @ 6250 rpm. Triumph Trident 660 wet weight is 189 kg / 417 lbs. Triumph Trident 660 has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: Trident 660
Years: 2021
Engine: Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Capacity: 660 cc / 40.2 cu-in
Bore x Stroke: 74.0 x 51.1mm
Compression Ratio: 11.1:1
Cooling System: Liquid cooled
Exhaust: Stainless steel 3 into 1 header system with low single sided stainless steel silencer
Emission: Euro-5
Induction: Multipoint sequential electronic fuel injection with electronic throttle control
Starting: Electric
Max Power: 80 hp / 60 kW @ 10250 rpm
Max Power A2 Restriction: 46 hp / 35 kW @ 8750 rpm
Max Torque: 64 Nm / 47 lb-ft @ 6250 rpm
Max Torque A2 Restriction: 59 Nm / 43.5 lb-ft @ 5250 rpm
Clutch: Wet, multi-plate, slip and assist
Transmission: 6 Speed
Final Drive: X-ring chain
Frame: Tubular steel perimeter frame, twin-sided, fabricated steel Swingarm
Front Suspension: 41mm Showa upside down separate function forks (SFF)
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Showa monoshock RSU, with preload adjustment
Rear Wheel Travel: 134 mm / 5.3 in
Front Brakes: 2x 310mm discs Nissin 2-piston calipers
Rear Brakes: Single 255mm disc Nissin single-piston sliding caliper
ABS System: Standard
Wheels: 5 Spoke cast aluminum
Front Rim: 3.5 x 17
Rear Rim: 5.5 x 17
Front Tyre: 120/70 - R17
Rear Tyre: 180/55 - R17
Rake: 24.6°
Trail: 107.3 mm / 4.2 in
Dimensions: Length 2020 mm / 79.5 in Width 795 mm / 31.3 in (incl Handlebars) Height 1089 mm / 42.9 in (excl Mirrors)
Wheelbase: 1401 mm mm / 55.2 in
Seat Height: 805 mm / 31.7 in
Wet Weight: 189 kg / 417 lbs
Fuel Capacity: 14 Litres / 3.7 US gal
Instruments: Multi-function instruments with colour TFT screen
