Triumph Tiger Sport 660 (2026) technical specifications

Triumph Tiger Sport 660 is produced in 2026. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder, 240? firing order, displacement 660 cc / 40.2 cu-in , produces power 95 hp / 70 kW @ 11250 rpm and 68 Nm / 50.2 lb-ft @ 8250 rpm. Triumph Tiger Sport 660 wet weight is 211 kg / 465 lbs. Triumph Tiger Sport 660 has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Tiger Sport 660
Years:	2026

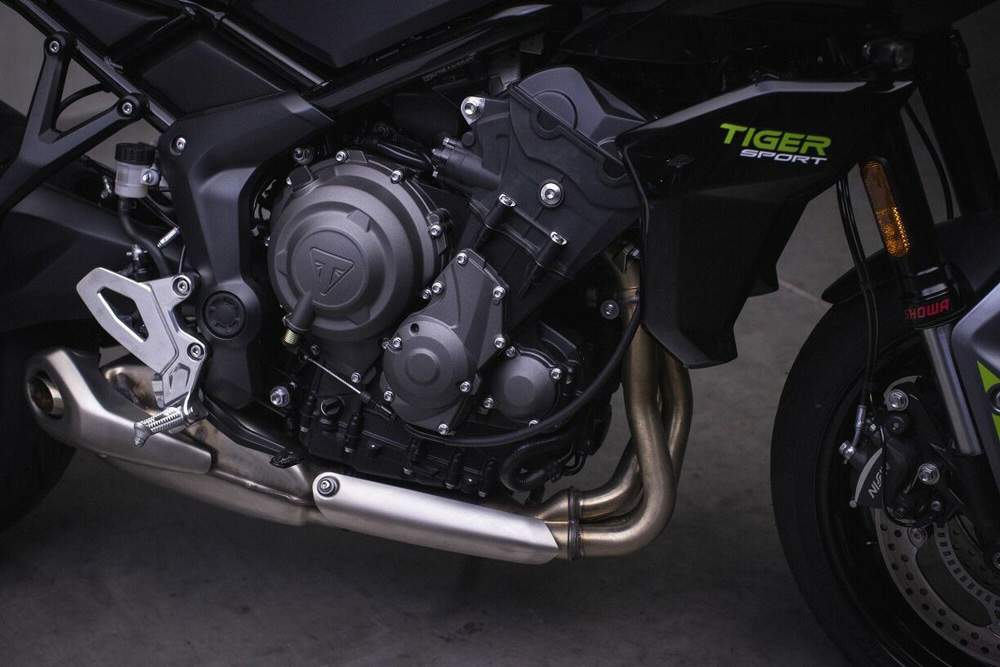

Engine:	Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder, 240? firing order
Capacity:	660 cc / 40.2 cu-in
Bore x Stroke:	74.0 x 51.1 mm
Compression Ratio:	12:1
Cooling System:	Liquid cooled
Exhaust:	Stainless steel 3 into 1 header system with low single sided stainless steel silencer
Emission:	Euro-5
Induction:	Multipoint sequential electronic fuel injection with electronic throttle control
Starting:	Electric
Max Power:	95 hp / 70 kW @ 11250 rpm
Max Torque:	68 Nm / 50.2 lb-ft @ 8250 rpm
Clutch:	Wet, multi-plate, slip and assist
Transmission:	6 Speed
Final Drive:	X-ring chain
Frame:	Tubular steel perimeter frame, twin-sided, fabricated steel Swingarm
Front Suspension:	41mm Showa upside down separate function forks (SFF)
Front Wheel Travel:	150 mm / 5.9 in
Rear Suspension:	Showa monoshock RSU, with remote hydraulic preload adjustment
Rear Wheel Travel:	150 mm / 5.9 in
Front Brakes:	2 x 310mm discs, Nissin 2-piston sliding calipers
Rear Brakes:	Single 255mm disc, Nissin single-piston sliding caliper
ABS System:	Standard
Wheels:	5 Spoke cast aluminum
Front Rim:	3.5 x 17
Rear Rim:	5.5 x 17
Front Tyre:	120/70 - R17 (58W)
Rear Tyre:	180/55 - R17 (73W)
Rake:	23.1?
Trail:	97.1 mm / 3.8 in
Dimensions:	Length 2069 mm / 81.5 in Width 828 mm / 32.6 in Height 1395 mm / 54.9 in - 1312mm / 51.65 in (high / low screen position)
Wheelbase:	1418 mm / 55.8 in
Seat Height:	835 mm / 32.8 in
Wet Weight:	211 kg / 465 lbs
Fuel Capacity:	18.6 Litres / 4.9 US gal

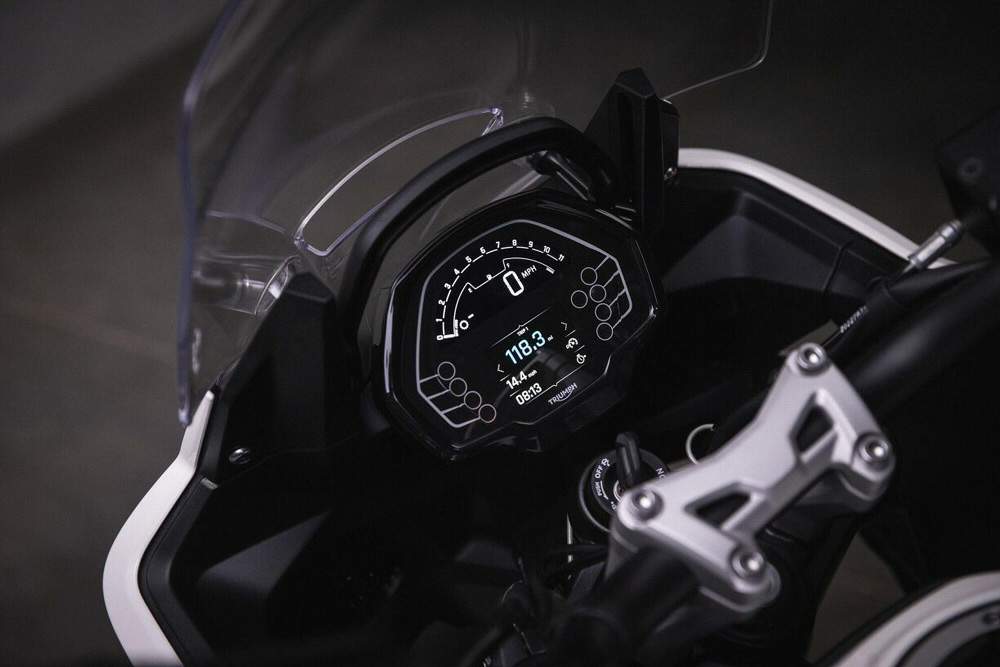

Instruments:	Multi-function instruments with colour TFT screen
