Technical specifications
|
| Model: |

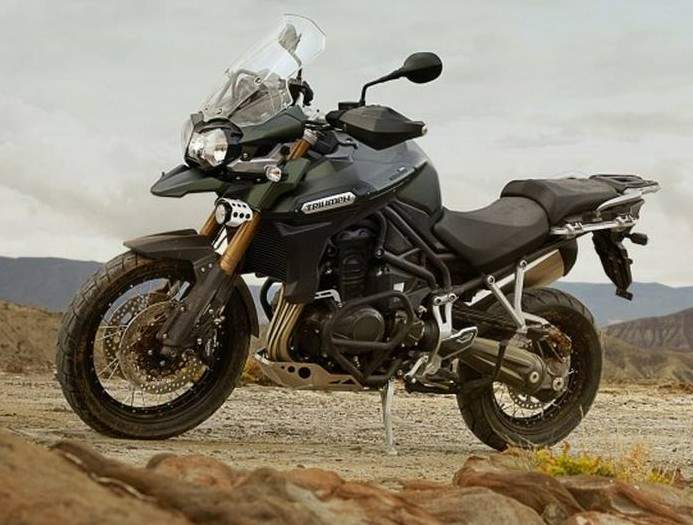

Tiger Explorer XC |
| Years: |
2014 |
|
Engine:
|
Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
|
|
Capacity:
|
1215 cc / 74.1 cub in
|
|
Bore x Stroke:
|
85 x 71.4mm
|
|
Cooling System:
|
Liquid-cooled
|
|
Compression Ratio:
|
12.0:1
|
|
Induction:
|
Multipoint sequential electronic fuel injection with SAI
|
|
Ignition:
|
Digital
|
|
Starting:
|
Electric
|
|
Exhaust:
|
Stainless steel 3 into 1 , side mounted stainless steel silencer
|
|
Oil Capacity:
|
4.0 Litres / 1.1 US gals / 0.88 Imp gal
|
|
Max Power:
|
101 kW / 135 hp @ 9300rpm
|
|
Max Torque:
|
121 Nm / 21.6 kgf-m / 89 lb-ft @ 6400 rpm
|
|
Clutch:
|
Wet, multi-plate
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Shaft
|
|
Frame:
|
Tubular steel trellis frame, Swingarm Single-sided, cast aluminium alloy with shaft drive
|
|
Front Suspension:
|
Kayaba 46mm upside down forks
|
|
Front Wheel Travel:
|
190 mm / 7.5 in
|
|
Rear Suspension:
|
Kayaba monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment
|
|
Rear Wheel Travel:
|
194 mm / 7.6 in
|
|
Front Brakes:
|
2x 305 mm Foating discs, Nissin 4-piston calipers, switchable ABS
|
|
Rear Brakes:
|
Single 282 mm disc, Nissin 2-piston sliding caliper, switchable ABS
|
|
Wheel Front:
|
32-spoke 19 x 2.5 in, aluminium rim
|
|
Wheel Rear:
|
32-spoke 17 x 4.0 in, aluminium rim
|
|
Front Tyre:
|
110/80-19
|
|
Rear Tyre:
|
150/70-17
|
|
Rake:
|
22.8º
|
|
Trail:
|
90.9mm / 3.6 in
|
|
Dimensions:
|
Length 2248mm / 88.4in Width (handlebars) 962mm 37.9in Height without mirrors 1410mm 55.5in
|
|
Wheelbase:
|
1435 mm / 56.5in
|
|
Seat Height:
|
837mm / 32.9in - 857mm/33.7in
|
|
Wet Weight:
|
267 kg / 586 lbs
|
|
Fuel Capacity:
|
20 Litres / 5.3 US gal / 4.4 Imp gal
|
