Triumph Tiger 955i (2005) technical specifications

Triumph Tiger 955i technical specifications

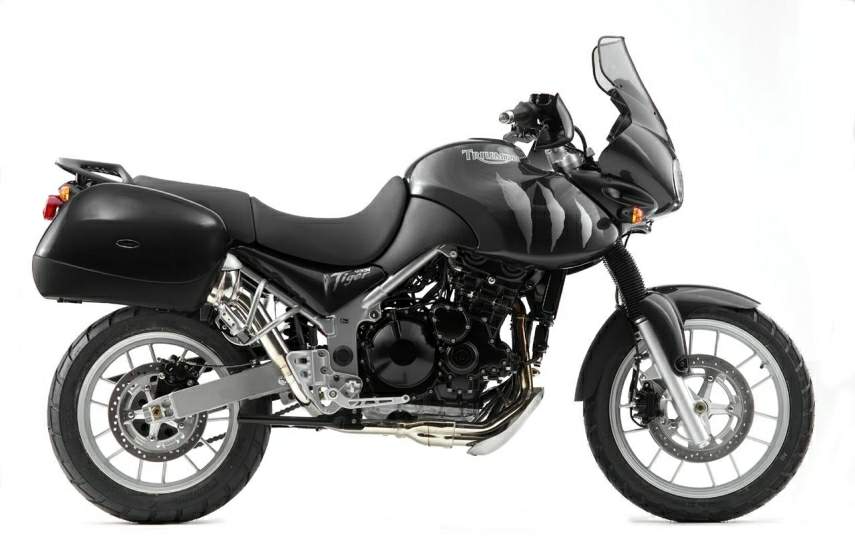

Triumph Tiger 955i is produced in 2005. Engine is Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder., displacement 955 cc / 58.3 cu in , produces power 83.6 kW / 104 hp @ 9500 rpm and 92 Nm / 9.38 kgf-m / 67ft.lbf @ 4400 rpm. Triumph Tiger 955i top speed is 206.5 km/h / 128.3 mph. Triumph Tiger 955i weighs 215kg / 474 lbs. Triumph Tiger 955i has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Tiger 955i
Years: 2005
Engine: Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Capacity: 955 cc / 58.3 cu in
Bore x Stroke: 79 x 65 mm
Compression Ratio: 11.6:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Engine Oil: Synthetic, 10W/40
Induction: Multipoint sequential electronic fuel injection
Ignition: Digital inductive type via electronic engine management.
Spark Plug: NGK, DPR8EA-9
Starting: Electric
Max Power: 83.6 kW / 104 hp @ 9500 rpm
Max Torque: 92 Nm / 9.38 kgf-m / 67ft.lbf @ 4400 rpm
Clutch: Wet, multi-plate
Transmission: 6 speed
Final Drive: X ring chain
Frame: Tubular steel perimeter swingarm twin-sided, aluminium alloy
Front Suspension: 43 mm Fork with triple rate springs
Front Wheel Travel: 230 mm / 9.1 in
Rear Suspension: Monoshock with remotely adjustable preload and rebound damping
Rear Wheel Travel: 230 mm / 9.1 in
Front Brakes: 2 x 310 mm Discs, 2 piston calipers
Rear Brakes: Single 285mm disc, 2 piston caliper
Wheels Front: Cast, 14-spoke, 19 x 2.5in
Wheels Rear: Cast, 14-spoke, 17 x 4.25in
Front Tyre: 110/80 H19
Rear Tyre: 150/70 H17
Trail: 87.9 mm / 3.46 in
Rake: 25.8º
Dimensions: Length 2250 mm / 88.6 in Width (Handlebars) 860 mm / 33.8 in Height 1390 mm / 54.7 in
Wheelbase: 1515 mm / 59.6in
Seat Height: 840-860 mm / 33.1-33.8 in
Dry Weight: 215kg / 474 lbs
Fuel Capacity: 24 Litres / 6.3 US gal / 5.3 Imp gal
Consumption Average: 5.6 L/100 km / 16.8 km/l / 39.5 US mpg / 47.4 Imp mpg
Standing ¼ Mile: 12.5 sec / 170 km/h / 105.6 mph
Standing 0 - 1000 m: 23.3 sec / 202 km/h / 125.5 mph
Top Speed: 206.5 km/h / 128.3 mph
