Triumph Tiger 800 XCx (2017-18) technical specifications

Triumph Tiger 800 XCx technical specifications

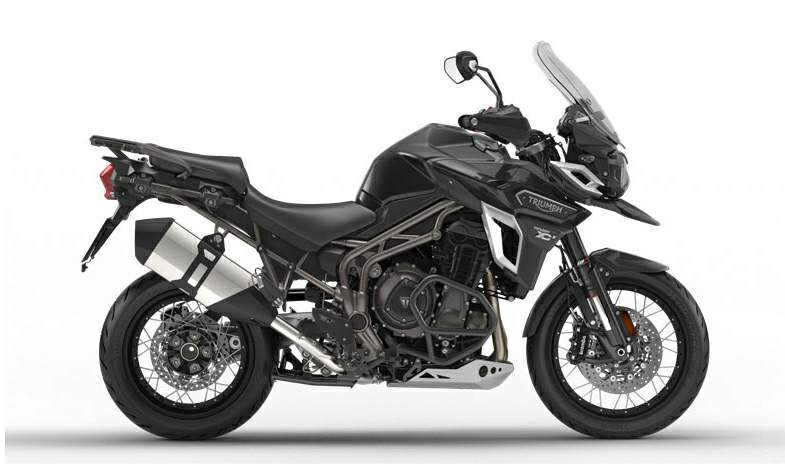

Triumph Tiger 800 XCx is produced in 2017-18. Engine is Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder., displacement 799 cc / 48.7 cub in , produces power 70.8 KW / 95 hp @ 9250 rpm and 79 Nm / 8.1 kgf-m / 58 ft.lb @ 7850 rpm. Triumph Tiger 800 XCx weighs 215 kg / 474 lbs. Triumph Tiger 800 XCx has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Tiger 800 XCx
Years: 2017-18
Engine: Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Capacity: 799 cc / 48.7 cub in
Bore x Stroke: 74 x 61.9 mm
Compression: 11.3:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Oil Capacity: 3.7 L / 0.98 US gal
Induction: Multipoint sequential electronic fuel injection
Ignition: Digital CDI
Starting: Electric
Exhaust: Stainless Steel, 3 into 1, high-level stainless steel silencer
Clutch: Wet, multi-plate
Max Power: 70.8 KW / 95 hp @ 9250 rpm
Max Torque: 79 Nm / 8.1 kgf-m / 58 ft.lb @ 7850 rpm
Transmission: 6 Speed
Final Drive: Chain, O-ring
Frame: Tubular steel trellis frame, swingarm: twin-sided, cast aluminum alloy
Front Suspension: WP 43mm upside down forks, adjustable rebound and compression
Front Wheel Travel: 220 mm / 8.7 in
Rear Suspension: WP monoshock with remote oil reservoir, hudraulically adjustable preload, rebound
Rear Wheel Travel: 215 mm / 8.5 in
Front Brakes: 2 x 308 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS
Rear Brakes: Single 255 mm disc, Nissin single-piston sliding caliper, Switchable ABS
Front Wheel: 36-Spoke 21 x 2.5 in, aluminium rim
Rear Wheel: 32-Spoke 17 x 4.25 in, aluminium rim
Front Tyre: 90/90 R21
Rear Tyre: 150/70 R17
Rake: 24.3°
Trail: 95.3 mm / 3.75 in
Dimensions: Length 2215 mm / 87.1in Width 845 mm / 33.3 in (with handlebars) Height 1390 mm / 54.7 in (without mirrors)
Wheelbase: 1545 mm / 60.8 in
Seat Height: 840 mm - 860 mm / 33.1 in- 33.9 in adjustable
Dry Weight: 215 kg / 474 lbs
Fuel Capacity: 19 Litres / 5.0 US gal / 4.2 Imp gal
