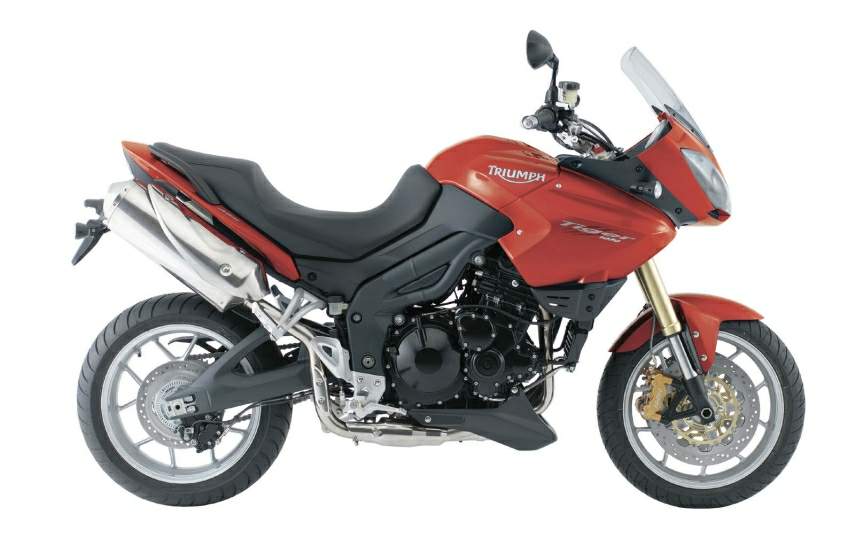

Triumph Tiger 1050 (2009) technical specifications
Triumph Tiger 1050 is produced in 2009. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder., displacement 1050 cc / 64.1 cu in , produces power 85 kW / 113 hp @ 9400 rpm and 98 Nm / 9.99 kgf-m / 72 ft.lbs @ 6,250 rpm. Triumph Tiger 1050 top speed is 215.9 km/h / 134 mph. Triumph Tiger 1050 weighs 198 kg / 436.5 lbs. Triumph Tiger 1050 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Tiger 1050 |
| Years: | 2009 |
| Engine: | Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder. |
| Capacity: | 1050 cc / 64.1 cu in |
| Bore x Stroke: | 79 x 71.4 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 12.0:1 |
| Lubrication: | Wet sump |
| Oil Capacity: | 3.5 Litres/ 0.9 US gals / 0.77 Imp gal |
| Engine Oil: | Synthetic, 10W/40 |
| Exhaust: | Stainless steel 3 into 1, high level brushed stainless steel silencer |
| Induction: | Multipoint sequential electronic fuel injection |
| Ignition: | Digital |
| Spark Plug: | NGK, DPR8EA-9 |
| Starting: | Electric |
| Max Power: | 85 kW / 113 hp @ 9400 rpm |
| Max Torque: | 98 Nm / 9.99 kgf-m / 72 ft.lbs @ 6,250 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 6 Speed |
| Final Drive: | X ring chain |
| Frame: | Aluminum beam perimeter, swingarm: braced, twin-sided, aluminum alloy |
| Front Suspension: | 43 mm Showa upside down forks with adjustable preload, rebound and compression damping adjustment |
| Front Wheel Travel: | 140 mm / 5.5 in |
| Rear Suspension: | Showa Mono-shock with adjustable preload and rebound damping |
| Rear Wheel Travel: | 150 mm / 5.9 in |
| Front Brakes: | 2 x 320 mm Discs, 4 piston caliper |
| Rear Brakes: | Single 255 mm disc, 2 piston caliper |
| Wheel Front: | Cast aluminium alloy, multi-spoke, 17 x 3.5in |
| Wheel Rear: | Cast aluminium alloy, multi-spoke, 17 x 5.5in |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 180/55 ZR17 |
| Rake: | 22.8° |
| Trail: | 89.7mm / 3.5 in |
| Dimensions: | Length 2150mm / 84.6in Width (handlebars) 835mm / 32.8in) Height without mirrors 1310mm / 51.5in |
| Wheelbase: | 1540mm / 60.6in |
| Seat Height: | 835 mm / 32.8 in |
| Dry Weight: | 198 kg / 436.5 lbs |
| Wet Weight: | 235 kg / 517 lbs |
| Fuel Capacity: | 20 Litres / 5.3 US gal / 4.4 Imp gal |
| Instrument: | LCD multi-functional instrument pack |
| Consumption Average: | 5.7 L/100 km / 17.5 km/l / 41 US mpg / 49 Imp mpg |
| Standing ¼ Mile: | 11.5 sec / 191.7 km/h / 119 mph |
| Standing 0 - 1000 m: | 22.1 sec / 212.3 km/h / 132 mph |
| Top Speed: | 215.9 km/h / 134 mph |
