Triumph Street Triple S / A2 (2020) technical specifications

Triumph Street Triple S / A2 technical specifications

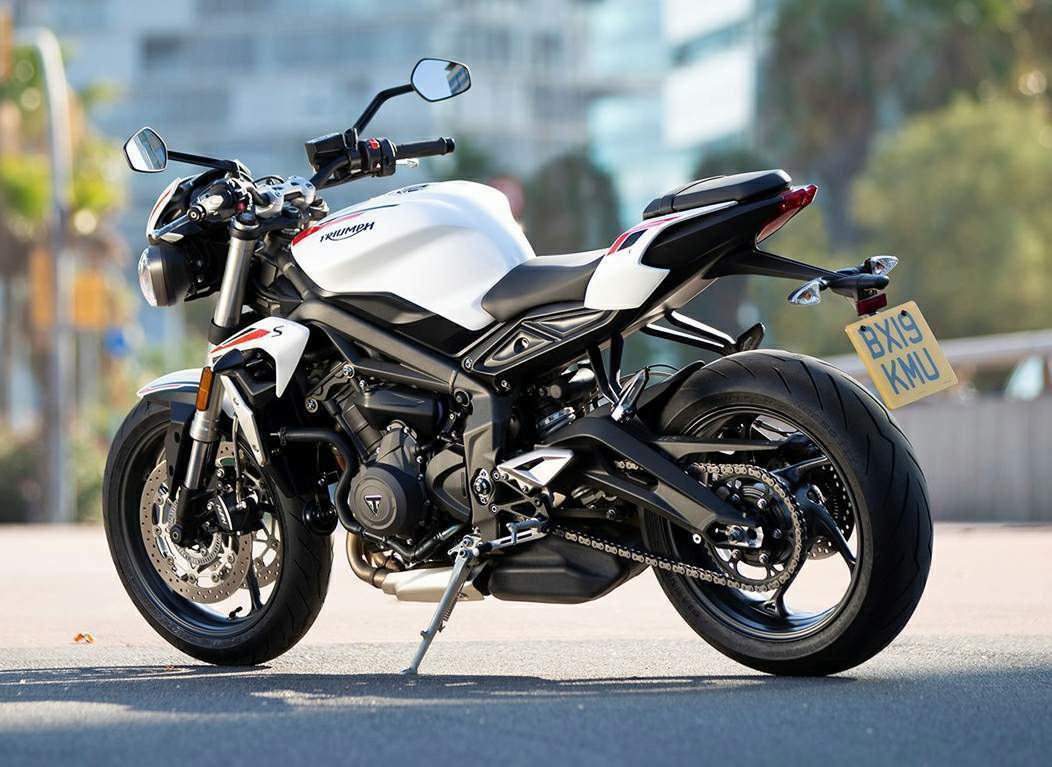

Triumph Street Triple S / A2 is produced in 2020. Engine is Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder, displacement 660 cc / 40.27 cu-in , produces power 35kW / 46.9 hp / 47.6 PS @ 9,000 rpm and 60 Nm / 44.2 lb-ft @ 5,250 rpm. Triumph Street Triple S / A2 weighs 168 Kg / 370.3 lbs. Triumph Street Triple S / A2 has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Street Triple S / A2
Years: 2020
Engine: Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder
Capacity: 660 cc / 40.27 cu-in
Bore x Stroke: 76.0 x 48.5 mm
Cooling System: Liquid-cooled
Compression Ratio: 12.1:1
Lubrication: Wet sump
Induction: Multipoint sequential electronic fuel injection with SAI, Electronic throttle control
Exhaust: Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Ignition: Digital - inductive type
Starting: Electric
Max Power: 35kW / 46.9 hp / 47.6 PS @ 9,000 rpm
Max Power Derestricted: 70kW / 93.8 hp / 95.2 PS @ 11,250 rpm
Max Torque: 60 Nm / 44.2 lb-ft @ 5,250 rpm
Max Torque Derestricted: 66 Nm / 48.6 lb-ft @ 9,250 rpm
Clutch: Wet, multi-plate
Transmission: 6 Speed
Final Drive: X ring chain
Frame: Front - Aluminium beam twin spar Rear - 2 piece high pressure die cast
Swingarm: Twin-sided, cast aluminium alloy
Front Suspension: Showa 41mm upside down forks
Front Wheel Travel: 110 mm / 4.3 in
Rear Suspension: Showa piggyback reservoir monoshock, adjustable preload
Rear Wheel Travel: 124 mm / 4.9 in
Front Brakes: 2 x 310mm floating discs, Nissin 2-piston sliding calipers
Rear Brakes: Single 220mm disc, Brembo single piston caliper
ABS: Switchable ABS
Front Wheels: Cast aluminium alloy 5-spoke 17 x 3.5 in
Rear Wheels: Cast aluminium alloy 5-spoke 17 x 5.5 in
Front Tyre: 120/70 ZR17 Pirelli Diablo Rosso III
Rear Tyre: 180/55 ZR17 Pirelli Diablo Rosso III
Rake: 24.8º
Trail: 103.4 mm / 4.0 in
Dimensions: Width 765mm / 30.1 in - with handlebars Height 1060 mm / 41.7 in - without mirrors
Wheelbase: 1410 mm / 55.5 in
Seat Height: 810 mm / 31.8 in
Dry Weight: 168 Kg / 370.3 lbs
Fuel Capacity: 17.4 Litres / 4.6 US gal / 3.8 Imp gal
