Triumph Street Triple RX (2016) technical specifications

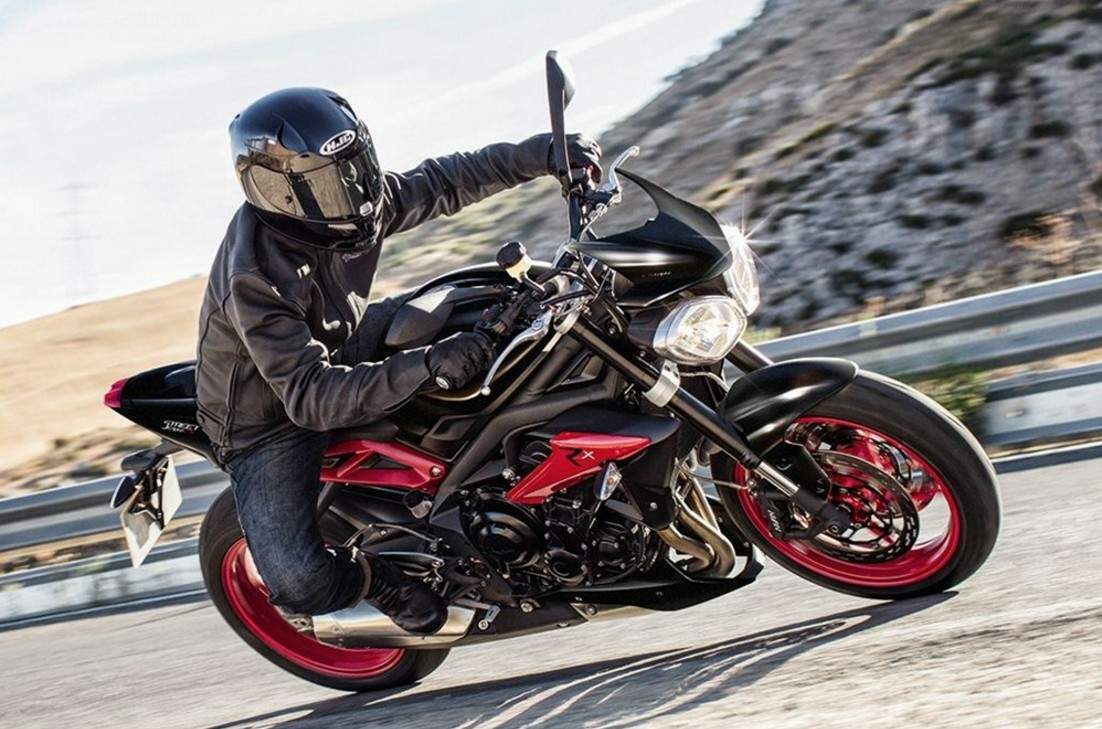

Triumph Street Triple RX is produced in 2016. Engine is Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder., displacement 675 cc / 41.2 cub in. , produces power 79 kW / 106 hp @ 11850 rpm and 68 Nm / 6.9 kgf-m / 50 ft/lb @ 9750 rpm. Triumph Street Triple RX weighs 168 kg / 370 lbs. Triumph Street Triple RX has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Street Triple RX |
| Years: | 2016 |
| Engine: | Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder. |
| Capacity: | 675 cc / 41.2 cub in. |
| Bore x Stroke: | 74 x 52.3 mm |
| Cooling System: | Liquid-cooled |
| Lubrication: | Wet sump |
| Oil Capacity: | 3.4 Litres / 3.6 US qt / 3.0 Imp qt |
| Induction: | Multipoint sequential electronic fuel injection with SAI |
| Exhaust: | Stainless steel 3 into 1 system low single sided stainless steel silencer |
| Ignition: | Digital - inductive type |
| Starting: | Electric |
| Max Power: | 79 kW / 106 hp @ 11850 rpm |
| Max Torque: | 68 Nm / 6.9 kgf-m / 50 ft/lb @ 9750 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 6 Speed, close ratio |
| Final Drive: | Chain |
| Frame: | Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm Braced, twin-sided, cast aluminium alloy |
| Front Suspension: | Kayaba 41mm upside down forks with adjustable preload, rebound and compression damping |
| Front Wheel Travel: | 115 mm / 4.5 in |
| Rear Suspension: | Kayaba monoshock with piggy back reservoir adjustable for rebound and compression damping |
| Rear Wheel Travel: | 135 mm / 5.3 in |
| Front Wheels: | Cast aluminium alloy 5-spoke 17 x 3.5in |
| Rear Wheels: | Cast aluminium alloy 5-spoke 17 x 5.5in |
| Front Brakes: | 2 x 310 mm floating discs, Nissen 4 piston radial calipers, ABS |
| Rear Brakes: | Single 220 mm disc, Brembo 1 piston caliper, ABS |
| Front Tyre: | 120/70 ZR 17 |
| Rear Tyre: | 180/55 ZR 17 |
| Rake: | 23.4º |
| Trail: | 95 mm / 3.7 in |
| Dimensions: | Length 2055 mm / 80.9 in Width 740 mm / 29.1 in (handlebars) Height 1110 mm / 43.7 in (without mirrors) |
| Wheelbase: | 1410 mm / 55.5 in |
| Seat Height: | 820 mm / 32.3 in |
| Dry Weight: | 168 kg / 370 lbs |
| Wet Weight: | 183 kg / 403 lbs |
| Fuel Capacity: | 17.4 Litres / 4.6 US gal / 3.8 Imp gal |
