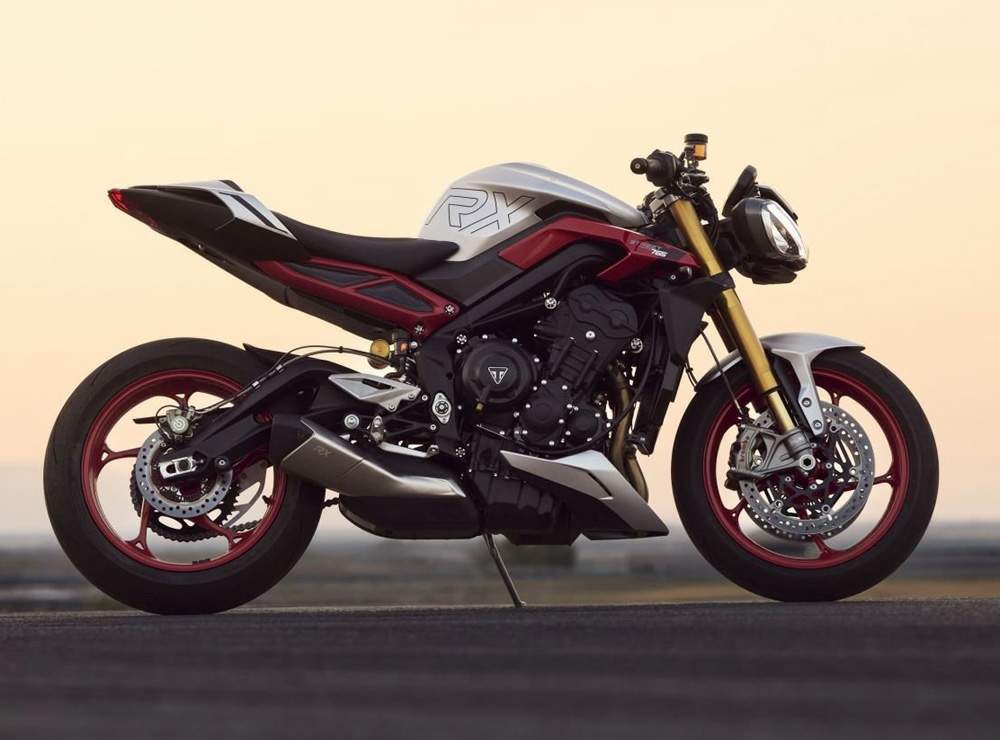

Triumph Street Triple 765 RX (2026) technical specifications

Triumph Street Triple 765 RX is produced in 2026. Engine is Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder, displacement 765 cc / 46.6 cu-in , produces power 128.2 hp / 95.6 kW @ 12000 rpm and 80 Nm / 59 lb-ft @ 9500 rpm. Triumph Street Triple 765 RX wet weight is 188 kg / 414.4 lbs. Triumph Street Triple 765 RX has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Street Triple 765 RX
Years:	2026
Engine:	Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder
Capacity:	765 cc / 46.6 cu-in
Bore x Stroke:	78 x 53.4 mm
Cooling System:	Liquid-cooled
Compression Ratio:	13.25:1
Lubrication:	Wet sump
Induction:	Multipoint sequential electronic fuel injection with electronic throttle control
Exhaust:	Stainless steel 3 into 1 header system with low single sided stainless steel silencer
Emission:	Euro 5+
Ignition:	Digital - inductive type
Starting:	Electric
Max Power:	128.2 hp / 95.6 kW @ 12000 rpm
Max Torque:	80 Nm / 59 lb-ft @ 9500 rpm
Clutch:	Wet, multi-plate, slip & assist
Transmission:	6 Speed with Triumph Shift Assist
Final Drive:	X-ring chain
Frame:	Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe
Swingarm:	Twin-sided, cast aluminium alloy
Front Suspension:	?hlins NIX30, adjustable compression and rebound damping, and preload adjustment
Front Wheel Travel:	115 mm / 4.5 in
Rear Suspension:	?hlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment
Rear Wheel Travel:	131.2 mm / 5.2 in
Front Brakes:	2 x 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OC-ABS, Brembo MCS radial master cylinder
Rear Brakes:	Single 220mm disc, Brembo single-piston caliper
ABS:	OC-ABS
Wheels:	Cast aluminium alloy 5 spoke
Front Wheels:	3.5 x 17
Rear Wheels:	5.5 x 17
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	23?
Trail:	95.3 mm / 3.8 in
Dimensions:	Length 2051 mm / 80.7 in Width 765 mm /30.1 in Height 1051 mm / 41.4 in
Wheelbase:	1379 mm / 54.3 in
Seat Height:	839 mm / 33.0 in
Wet Weight:	188 kg / 414.4 lbs
Fuel Capacity:	15 Litres / 309 US gal
