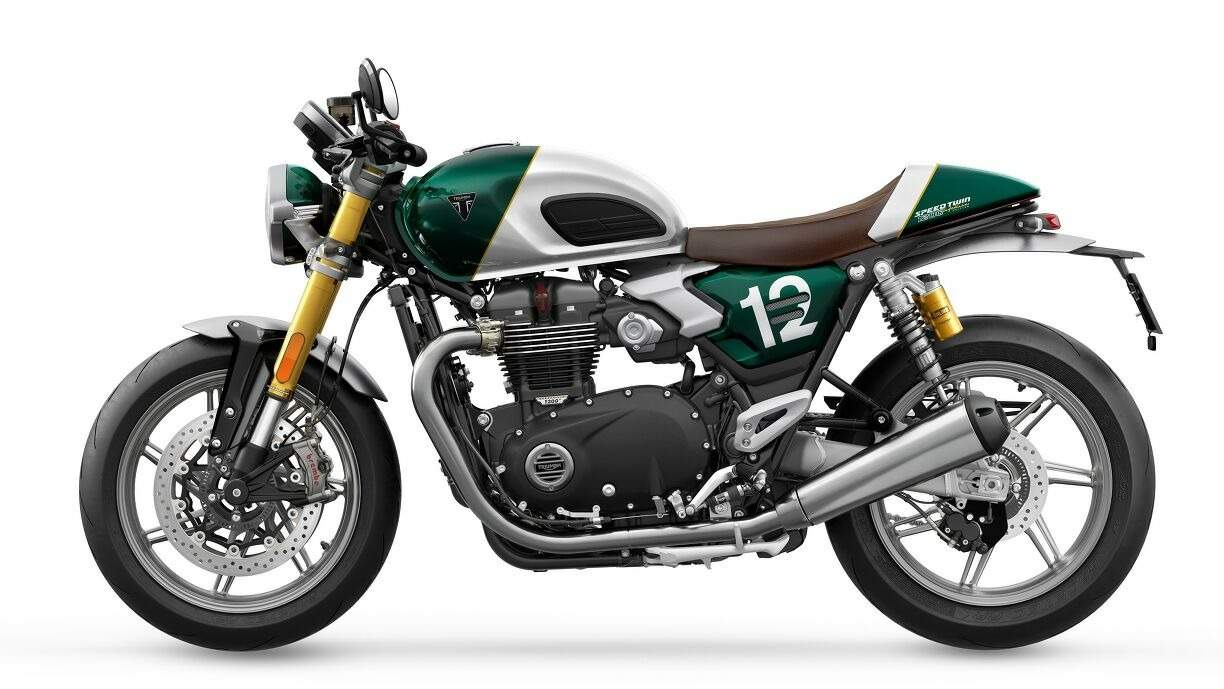

Triumph Speed Twin 1200 Caf? Racer (2026) technical specifications

Triumph Speed Twin 1200 Caf? Racer is produced in 2026. Engine is Four stoke, parallel twin, 270? crank, SOHC, 4 valve per cylinder, displacement 1198 cc / 73.1 cu-in , produces power 77.2 kW / 103.5 hp @ 7750 rpm and 112 Nm / 82.6 lb-ft @ 4250 rpm. Triumph Speed Twin 1200 Caf? Racer wet weight is 217 kg / 478.4 lbs. Triumph Speed Twin 1200 Caf? Racer has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Speed Twin 1200 Caf? Racer
Years:	2026
Production:	800 Units
Engine:	Four stoke, parallel twin, 270? crank, SOHC, 4 valve per cylinder
Capacity:	1198 cc / 73.1 cu-in
Bore x Stroke:	97.6 x 80 mm
Compression Ratio:	12.1:1
Cooling System:	Liquid cooled
Lubrication:	Wet sump
Exhaust:	Brushed stainless steel 2-into-2 exhaust system with twin brushed stainless steel silencers
Emission:	Euro 5+
Induction:	Multipoint sequential electronic fuel injection with electronic throttle control
Ignition:	Digital
Starting:	Electric
Max Power:	77.2 kW / 103.5 hp @ 7750 rpm
Max Torque:	112 Nm / 82.6 lb-ft @ 4250 rpm
Clutch:	Wet, multi-plate slip & assist clutch
Transmission:	6-Speed
Final Drive:	Chain, X-ring
Frame:	Tubular steel with steel cradles
Swingarm:	Twin sided aluminium
Front Suspension:	43mm USD Marzocchi forks, adjustable for pre-load, compression and rebound damping
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Twin ?hlins RSUs with external reservoirs, adjustable for pre-load, compression and rebound
Rear Wheel Travel:	123 mm / 4.8 in
Front Brakes:	2 x 320 mm discs, Brembo Stylema M4.30 radial calipers
Rear Brakes:	Single 220 mm disc, Nissin 2-piston floating caliper
ABS:	Standard, OCABS
Front Wheel:	Cast aluminium alloy, 7 spoke, 17 x 3.5
Rear Wheel:	Cast aluminium alloy, 7 spoke, 17 x 5.0
Front Tyre:	120/70 ZR17
Rear Tyre:	160/60 ZR17
Rake:	22.6?
Trail:	92 mm / 3.62 in
Dimensions:	Length: 2073 mm / 81.6 in Width: 792 mm / 31.2 in Height: 1043 mm / 41.1 in
Wheelbase:	1400 mm / 55.1 in
Seat Height:	803 mm / 31.6 in
Wet Weight:	217 kg / 478.4 lbs
Fuel Capacity:	14.5 Litres / 3.8 US gal
Instruments:	LCD multi-function instruments with integrated color TFT screen
