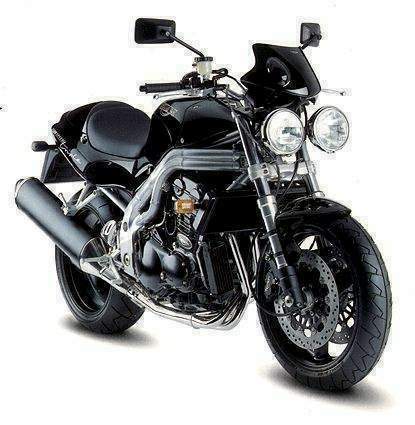

Triumph Speed Triple T509 (1998) technical specifications

Triumph Speed Triple T509 is produced in 1998. Engine is Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder., displacement 885 cc / 54.0 cu-in , produces power 80.5 kW / 108 hp / @ 9000rpm and 84.0 Nm / 8.57 kgf-m / 62 ft-lb / @ 6,500rpm. Triumph Speed Triple T509 top speed is 218.9 km/h / 136 mph. Triumph Speed Triple T509 weighs 196 kg / 422.1 lbs. Triumph Speed Triple T509 has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Speed Triple T509
Years:	1998
Engine:	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Capacity:	885 cc / 54.0 cu-in
Bore x Stroke:	76 x 65 mm
Cooling System:	Liquid cooled
Compression Ratio:	10.0:1
Lubrication:	Wet sump
Engine Oil:	Synthetic, 10W/40
Induction:	41 mm Fuel injection
Ignition:	Digital CDI
Spark Plug:	NGK, DPR8EA-9
Starting:	Electric
Max Power:	80.5 kW / 108 hp / @ 9000rpm
Max Torque:	84.0 Nm / 8.57 kgf-m / 62 ft-lb / @ 6,500rpm
Transmission:	6 Speed
Final Drive:	Chain
Frame:	Steel, trellis frame
Front Suspension:	45 mm Upside-down forks, preload, dump and rebound adjustable
Rear Suspension:	Monoshock, preload, dump and rebound adjustable.
Front Brakes:	2 x 320 mm Discs, 4 piston calipers
Rear Brakes:	Single 220 mm disc, 2 piston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	190/50 ZR17
Seat Height:	800 mm / 31.5 in
Dry Weight:	196 kg / 422.1 lbs
Wet Weight:	206 kg / 454.1 lbs
Fuel Capacity:	18 Litres / 4.7 gal
Consumption Average:	6.25 L/100 km / 16.0 km/l / 37.6 US mpg / 45.2 Imp mpg
Braking 60 km/h - 0:	12.6 m / 41.3 ft
Braking 100 km/h - 0:	36.5 m / 119.8 ft
Standing ¼ Mile:	11.3 sec / 185.9 km/h / 115.5 mph
Top Speed:	218.9 km/h / 136 mph
Review:	Motorcycle.com
