Triumph Speed Triple S (2016) technical specifications

Triumph Speed Triple S technical specifications

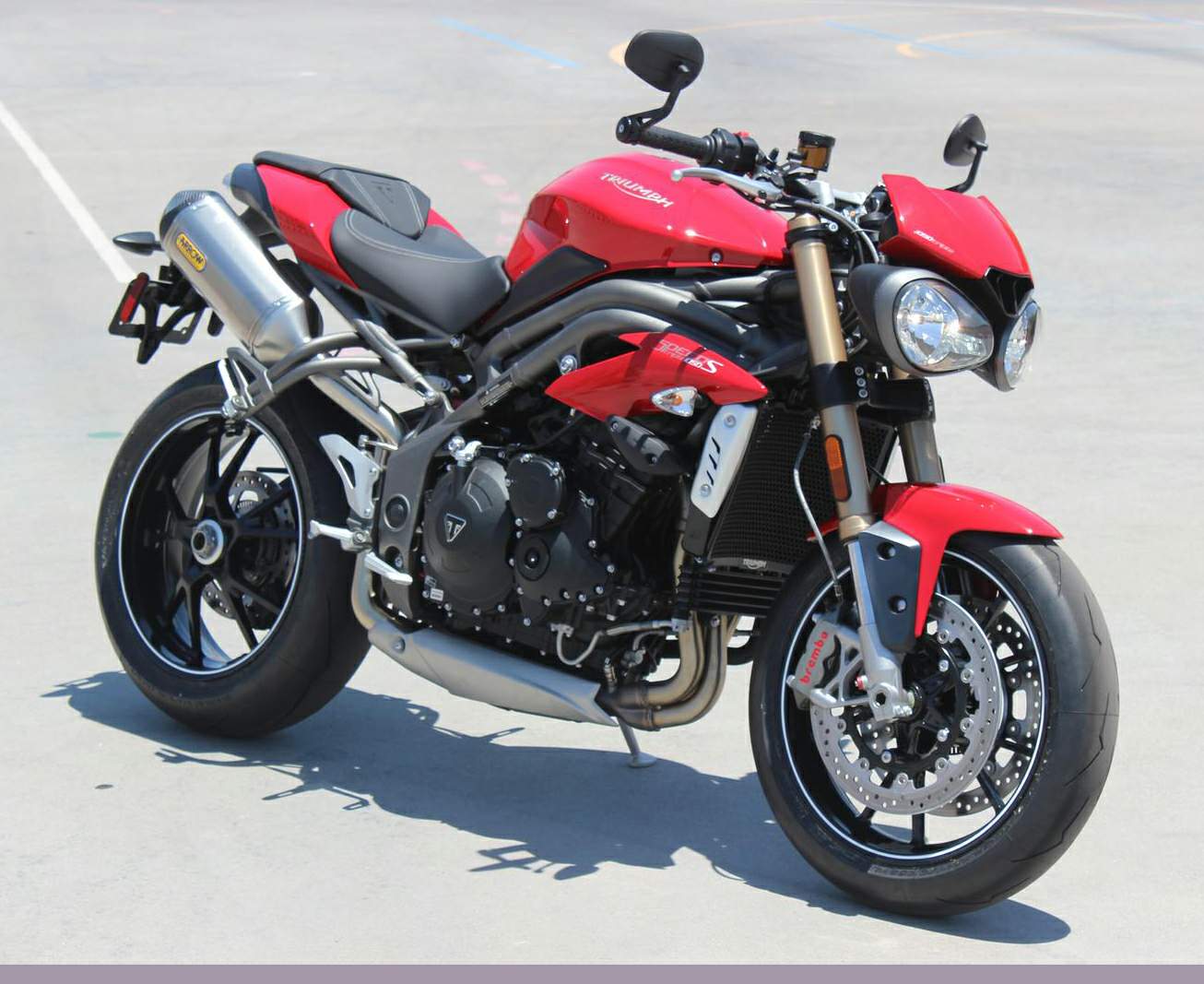

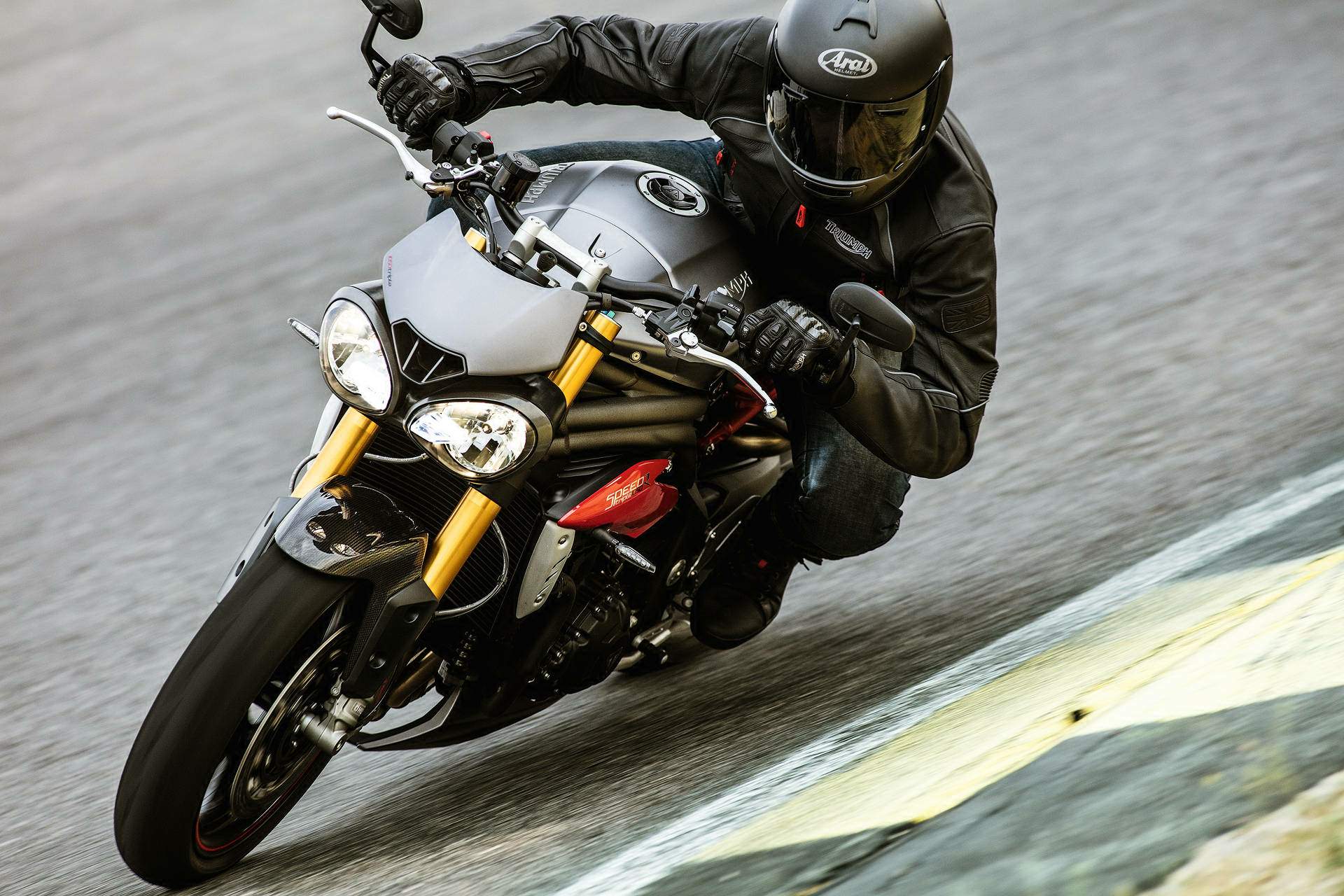

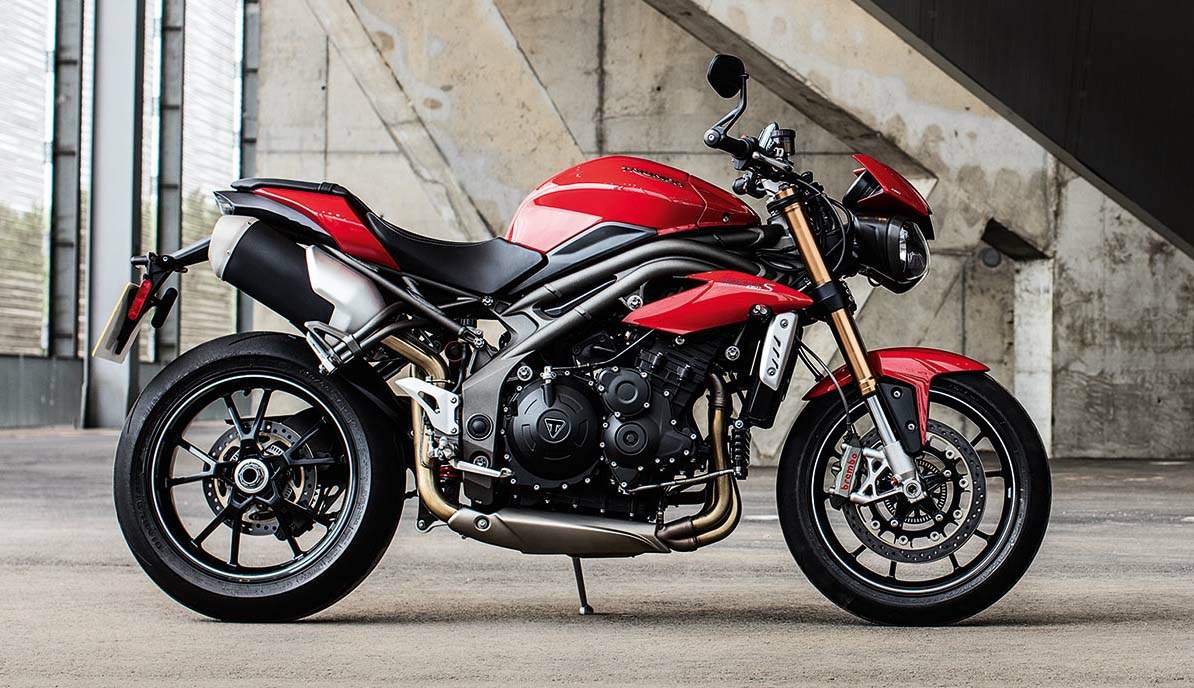

Triumph Speed Triple S is produced in 2016. Engine is Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder, displacement 1050 cc / 64.1 cu in , produces power 104 kW / 140 hp @ 9500 rpm and 111.9 Nm / 11.4 kgf-m / 82.6 ft-lb @ 7850 rpm. Triumph Speed Triple S weighs 192 kg / 423 lbs. Triumph Speed Triple S has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Speed Triple S
Years: 2016
Engine: Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Capacity: 1050 cc / 64.1 cu in
Bore x Stroke: 79 x 71.4 mm
Cooling System: Liquid cooled
Induction: Multipoint sequential electronic fuel injection with SAI
Exhaust: Stainless Steel 3 into 1 into 2, twin high level stainless steel silencers
Ignition: Electronic
Starting: Electric
Max Power: 104 kW / 140 hp @ 9500 rpm
Max Torque: 111.9 Nm / 11.4 kgf-m / 82.6 ft-lb @ 7850 rpm
Clutch: Wet, multi-plate slip assist cltuch
Transmission: 6-Speed
Frame: Aluminium beam twin-spar, single-sided swingarm, aluminium alloy with eccentric chain adjuster
Front Suspension: 43mm USD forks with adjustable preload, rebound and compression damping
Front Wheel Travel: 120 mm / 4.7"
Rear Suspension: Showa monoshock with adjustable preload, rebound and compression damping
Rear Wheel Travel: 130 mm / 5.1"
Front Brakes: 2x 320mm floating discs, Brembo 4-piston Monobloc radial calipers, switchable ABS
Rear Brakes: Single 255 mm disc, Nissin 2 piston sliding caliper, switchable ABS
Front Wheel: Cast aluminium alloy multi-spoke 17 x 3.5 in
Front Tyre: 120/70 ZR17
Rear Wheel: Cast aluminium alloy multi-spoke 17 x 6.0 in
Rear Tyre: 190/55 ZR17
Rake: 22.9º
Trail: 91.3 mm / 3.6 in
Dimensions: Width: 780 mm / 30.7 in Height: 1070 mm / 42.1 in
Wheelbase: 1445 mm / 56.9 in
Seat Height: 825.5 mm / 32.5 in
Dry Weight: 192 kg / 423 lbs
Fuel Capacity: 15.5 Litres / 4.1 US gal / 3.4 Imp gal
