Triumph Speed Triple R (2013) technical specifications

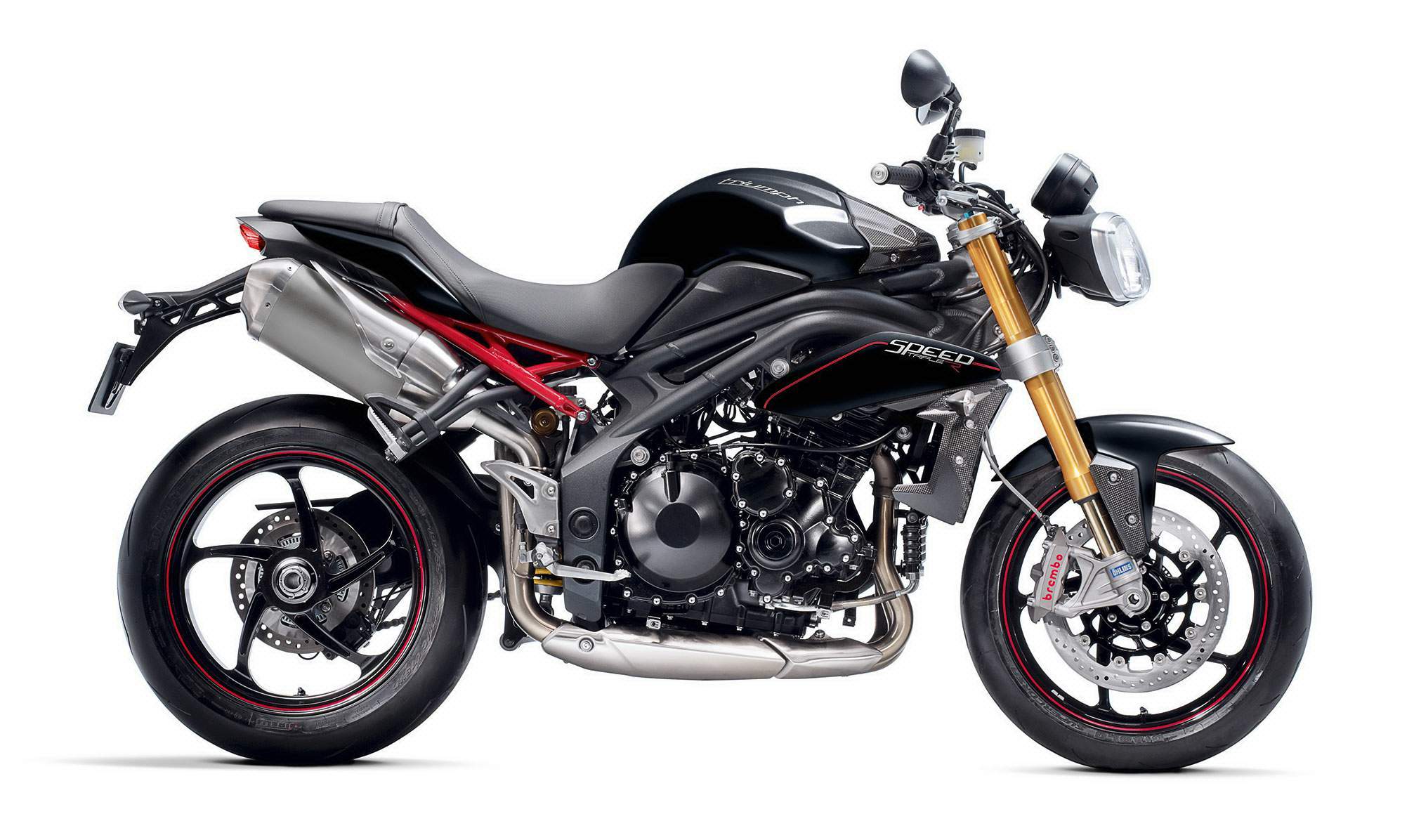

Triumph Speed Triple R technical specifications

Triumph Speed Triple R is produced in 2013. Engine is Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder, displacement 1050 cc / 64.1 cub in , produces power 99 kW / 135 hp @ 9400 rpm and 111 Nm / 11.3 kgf-m / 82 ft.lbs @ 7750rpm. Triumph Speed Triple R top speed is 253.8 km/h/ 157.7 mph. Triumph Speed Triple R wet weight is 212 kg / 466 lbs. Triumph Speed Triple R has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Speed Triple R
Years: 2013
Engine: Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Capacity: 1050 cc / 64.1 cub in
Bore x Stroke: 79 x 71.4 mm
Cooling System: Liquid-cooled
Compression Ratio: 12.0:1
Induction: Multipoint sequential electronic fuel injection with SAI
Engine Oil: 10W/40 Synthetic
Exhaust: Stainless Steel 3 into 1 into 2, twin high level stainless steel silencers
Ignition: Digital–inductive type via electronic engine management system
Spark Plug: NGK CR9EK
Starting: Electric
Max Power: 99 kW / 135 hp @ 9400 rpm
Max Torque: 111 Nm / 11.3 kgf-m / 82 ft.lbs @ 7750rpm
Clutch: Wet, multi-plate
Transmission: 6 Speed
Final Drive: X ring chain
Frame: Aluminium beam twin-spar
Front Suspension: Öhlins 43 mm NIX30 upside down forks with adjustable rebound and compression damping,
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Öhlins TTX36 twin tube monoshock with rebound and compression damping
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2 x 320 mm Discs, 4 piston radial monoblock calipers, Brembo, switchable ABS
Rear Brakes: Single 255 mm disc, 2 piston caliper, switchable ABS
Wheel Front: Forged aluminium alloy 5 spoke, 17 x 3.5 in
Wheel Rear: Forged aluminium alloy 5 spoke, 17 x 6.0 in
Front Tyre: 120/70 ZR 17
Rear Tyre: 190/55 ZR 17
Rake: 22.8°
Trail: 90.9 mm / 3.6 in
Dimensions: Length 2100mm / 82.6in Width (handlebars) 795mm / 31.3in Height without mirrors 1110mm / 43.7in
Wheelbase: 1435 mm / 56.5in
Seat Height: 825 mm / 32.5 in
Wet Weight: 212 kg / 466 lbs
Fuel Capacity: 17.5 Litres / 4.6 US gal / 3.8 Imp gal
Consumption Average: 5.95 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg
Standing ¼ Mile: 11.3 sec
Top Speed: 253.8 km/h/ 157.7 mph
