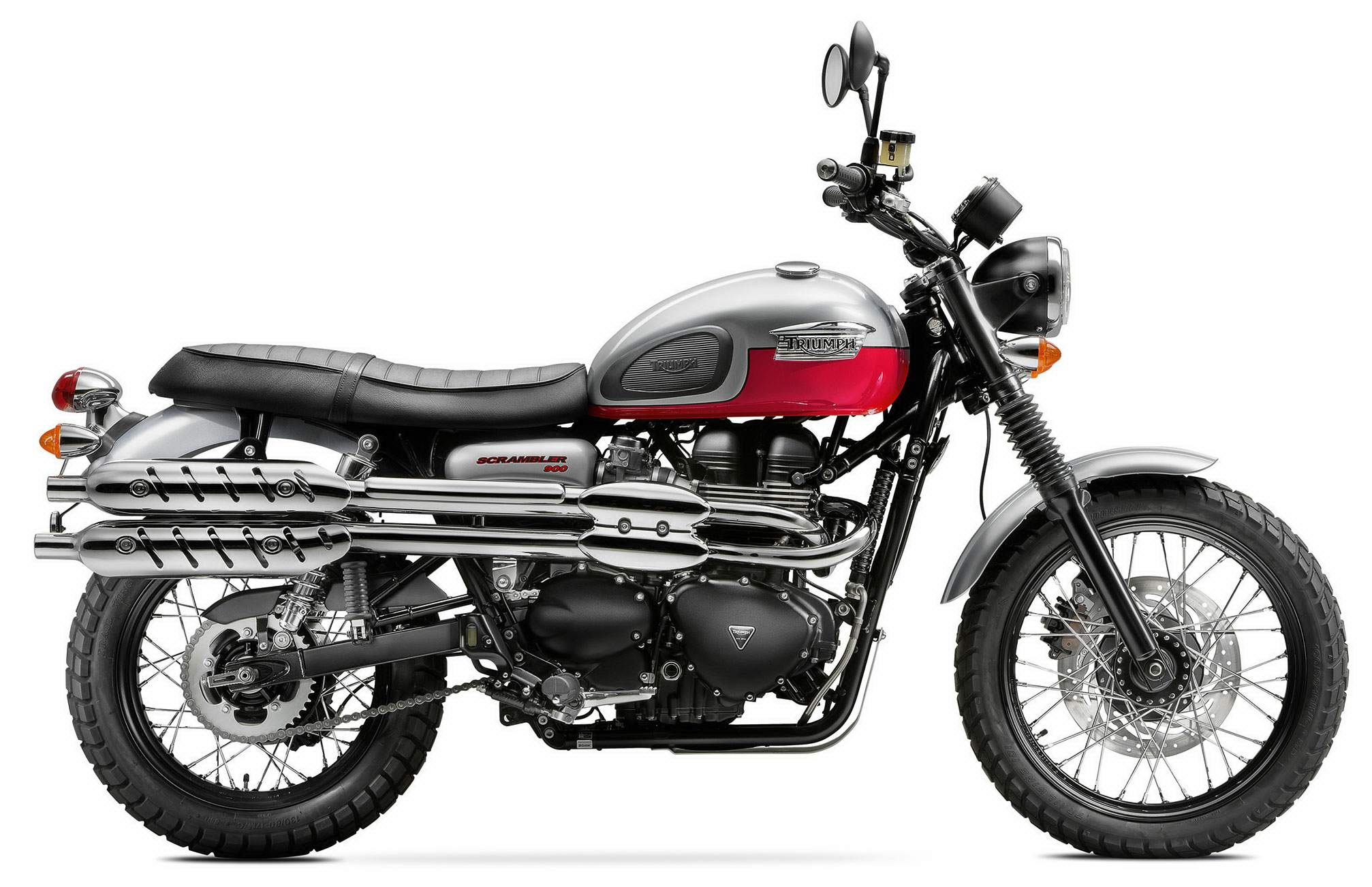

Triumph Scrambler (2014) technical specifications

Triumph Scrambler technical specifications

Triumph Scrambler is produced in 2014. Engine is Four stroke, parallel-twin, DOHC, displacement 865 cc / 52.8 cu in , produces power 44.1 kW / 59 hp @ 6800 rpm and 69 Nm 7.04 kgf-m / 51 ft-lb @ 4750 rpm. Triumph Scrambler top speed is 169.4 km/h / 105.3 mph. Triumph Scrambler weighs 230 kg / 506 lbs. Triumph Scrambler has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Scrambler
Years: 2014
Engine: Four stroke, parallel-twin, DOHC
Capacity: 865 cc / 52.8 cu in
Bore x Stroke: 90 x 68 mm
Cooling System: Air-cooled
Compression Ratio: 9.2:1
Oil Capacity: 4.5 Litres / 1.2 US gal / 1.0 Imp gal
Exhaust: High level stainless steel headers with twin chromed silencers
Lubrication: Wet sump
Induction: Multipoint sequential electronic fuel injection with SAI
Ignition: Digital – inductive type
Starting: Electric
Max Power: 44.1 kW / 59 hp @ 6800 rpm
Max Torque: 69 Nm 7.04 kgf-m / 51 ft-lb @ 4750 rpm
Clutch: Wet, multi-plate
Transmission: 5 Speed
Final Drive: X-ring chain
Frame: Tubular steel cradle
Front Suspension: 41mm Telescopic forks
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Chromed spring twin shocks with adjustable preload
Rear Wheel Travel: 106 mm / 4.2 in
Front Brakes: Single 310 mm disc, Nissen 2 piston floating caliper
Rear Brakes: Single 255 mm disc, Nissen 2 piston floating caliper
Wheel Front: 36-spoke 19 x 2.5 in
Wheel Rear: 40-spoke 17 x 3.5 in
Front Tyre: 100/90 -19
Rear Tyre: 130/80 -17
Rake: 27.8º
Trail: 105mm / 4.1 in
Dimensions: Length 2213mm / 87.1in Width (handlebars) 860mm / 33.8in Height without mirrors 1202mm / 47.3in
Wheelbase: 1500mm / 59.0in
Seat Height: 825 mm / 32.5in
Dry Weight: 230 kg / 506 lbs
Fuel Capacity: 16.6 Litres / 4.4 US gal / 3.7 Imp gal
Standing ¼ Mile: 14.7 sec
Top Speed: 169.4 km/h / 105.3 mph
