Triumph Scrambler 1200 XE Steve McQueen Limited Edition (2021) technical specifications

Triumph Scrambler 1200 XE Steve McQueen Limited Edition technical specifications

Triumph Scrambler 1200 XE Steve McQueen Limited Edition is produced in 2021. Engine is Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder, displacement 1200 cc / 73.2 cu-in , produces power 89 hp / 66.2 kW @ 7250 rpm and 110 Nm / 81.1 lb-ft @ 4500 rpm. Triumph Scrambler 1200 XE Steve McQueen Limited Edition wet weight is 230 kg / 507 lbs. Triumph Scrambler 1200 XE Steve McQueen Limited Edition has 8 photos.

Technical specifications

+ Add to 'Compare list'
Model: Scrambler 1200 XE Steve McQueen Limited Edition
Years: 2021
Production: 1000
Engine: Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder
Capacity: 1200 cc / 73.2 cu-in
Bore x Stroke: 97.6 x 80.0 mm
Cooling System: Liquid cooled
Compression Ratio: 11.0:1

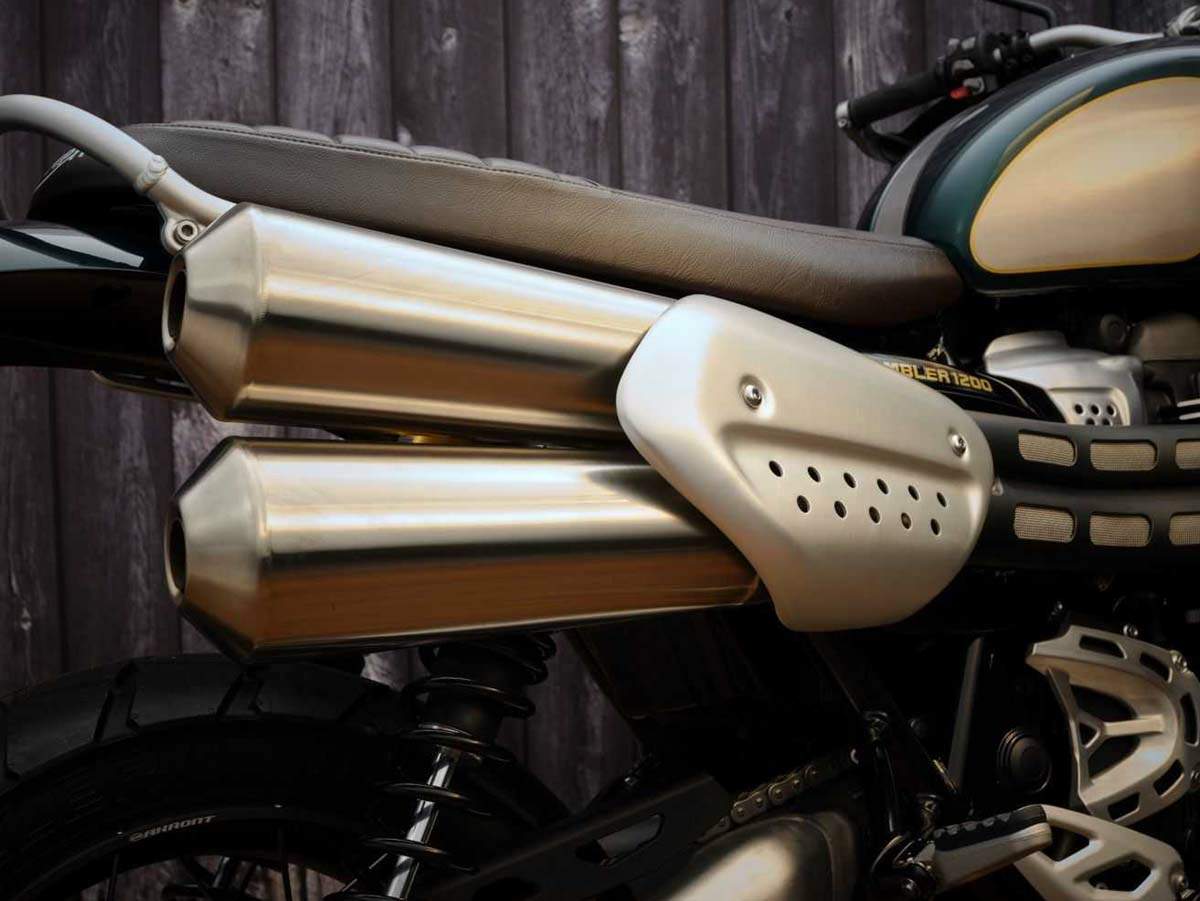

Exhaust: Brushed 2 into 2 exhaust system with brushed high level silencers
Emission: EURO5
Lubrication: Wet sump
Induction: Multipoint sequential electronic fuel injection
Ignition: Digital – inductive type
Starting: Electric
Max Power: 89 hp / 66.2 kW @ 7250 rpm
Max Torque: 110 Nm / 81.1 lb-ft @ 4500 rpm
Clutch: Wet, multi-plate torque assist
Transmission: 6 Speed
Final Drive: X ring chain
Frame: Tubular steel with aluminum cradles, Twin-sided, aluminum, 579 mm long swingarm
Front Suspension: 47mm Showa fully adjustable USD forks
Front Wheel Travel: 250 mm / 9.8 in
Rear Suspension: Öhlins fully adjustable piggy-back RSUs with twin springs
Rear Wheel Travel: 250 mm / 9.8 in
Front Brakes: 2x 320mm discs, Brembo M50 monoblock calipers, radial master cylinder
Rear Brakes: Single 255mm disc, Brembo 2-piston floating caliper
ABS: Switchable ABS
Wheel Front: 36-spoke 21 x 2.15 in, aluminum rims
Wheel Rear: 32-spoke 17 x 4.25 in, aluminum rims
Front Tyre: 90/90-21
Rear Tyre: 150/70 R17
Rake: 26.9°
Trail: 129.2 mm / 5.1 in
Dimensions: Length 2330 mm / 91.7 in Width 905 mm / 35.6 in with handlebars Height 1250 mm / 49.2 in without mirrors
Wheelbase: 1570 mm / 61.8 in
Seat Height: 870 mm / 34.3 in
Wet Weight: 230 kg / 507 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
Instruments: Full-colour TFT instruments
