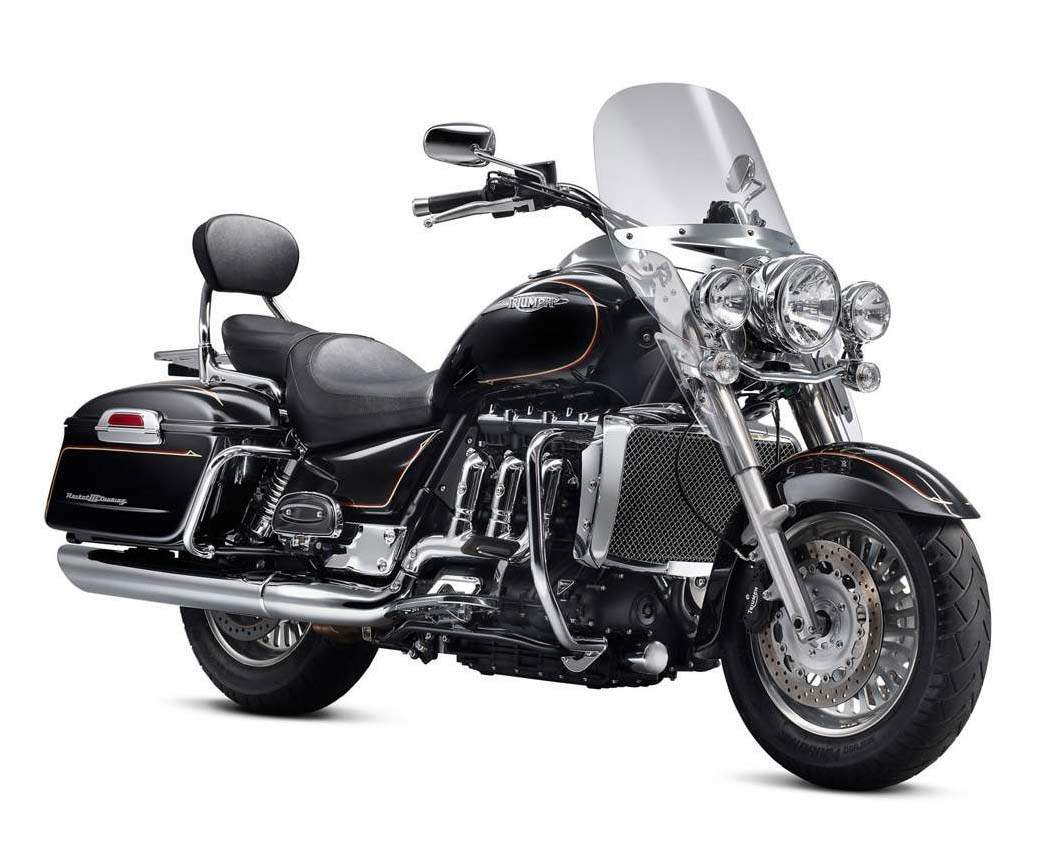

Triumph Rocket III Touring (2015-16) technical specifications

Triumph Rocket III Touring is produced in 2015-16. Engine is Four stroke, 3-cylinder, DOHC, 12 valves, displacement 2294 cc / 140 cub in , produces power 77.3 kW / 105.9 hp @ 5400 rpm and 203 Nm / 20.7 kgf-m / 150 ft.lbs @ 2500 rpm. Triumph Rocket III Touring weighs 358 kg / 789 lbs. Triumph Rocket III Touring has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Rocket III Touring
Years:	2015-16
Engine:	Four stroke, 3-cylinder, DOHC, 12 valves
Capacity:	2294 cc / 140 cub in
Bore x Stroke:	101.6 x 94.3 mm
Cooling System:	Liquid cooled
Compression Ratio:	8.7:1
Induction:	Multipoint sequential electronic fuel injection with twin butterflies and progressive linkage on primary butterflies
Lubrication:	Wet sump
Engine Oil:	Synthetic, 15W/50
Oil Capacity:	5.9 L / 1.6 US gal / 1.3 Imp gal
Exhaust:	Stainless steel 3 into 1 into 2, large volume catalysts in front of chrome-plated exhaust
Ignition:	Digital inductive type via electronic engine management
Starting:	Electric
Max Power:	77.3 kW / 105.9 hp @ 5400 rpm
Max Torque:	203 Nm / 20.7 kgf-m / 150 ft.lbs @ 2500 rpm
Clutch:	Wet, multi plate
Transmission:	5 Speed
Final Drive:	Shaft
Gear Ratios:	1st: 41/14 / 2nd: 37/19 / 3rd: 33/23 / 4th: 29/25 / 5th: 27/28:1
Frame:	Tubular steel, twin spine, swingarm twin-sided, steel
Front Suspension:	Kayaba 43mm upside down forks
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Kayaba black spring twin shocks with 5 position adjustable preload
Rear Wheel Travel:	105 mm / 4.1 in
Front Brakes:	2 x 320 mm floating discs, Nissin 4-piston fixed caliper, ABS
Rear Brakes:	Single 316 mm disc, Brembo 2 piston floating caliper, ABS
Wheels Front:	Cast aluminium alloy, 25-spoke, 16 x 3.5 in
Wheels Rear:	Cast aluminium alloy, 25-spoke, 16 x 5.0 in
Front Tyre:	150/80 R16
Rear Tyre:	180/70 R16
Rake:	32°
Trail:	184 mm / 7.2 in
Dimensions:	Length 2603 mm / 102.4 in Width 995 mm / 39.1 in including levers (widest fixed part) Height 1182 mm / 46.5 in excluded quick release screen & mirrors
Wheelbase:	1705 mm / 67.1 in
Seat Height:	730 mm / 28.7 in
Dry Weight:	358 kg / 789 lbs
Wet Weight:	395 kg / 869 lbs
Fuel Capacity:	22.3 Litres / 5.9 US gal
Consumption Average:	5.6 L/100 km / 17.8 km/l / 41.9 US mpg / 50.4 Imp mpg
Colours:	Cranberry red & Phantom black, Phantom black with gold and red key lines
