Triumph Rocket 3 GT (2020) technical specifications

Triumph Rocket 3 GT technical specifications

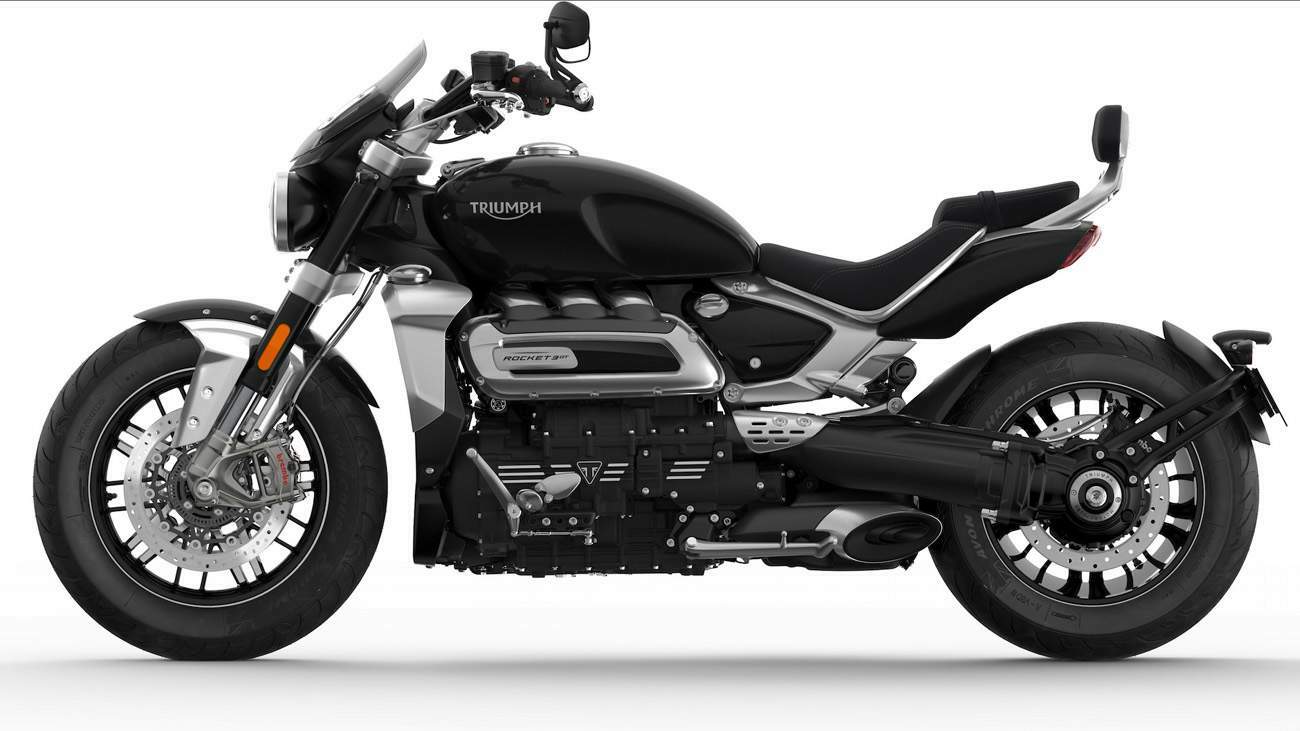

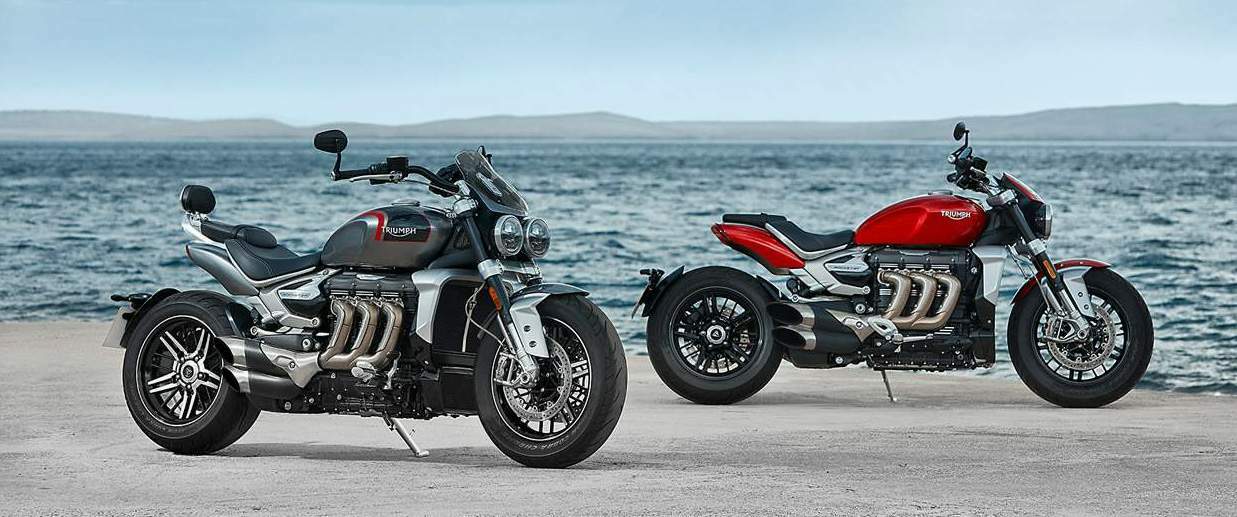

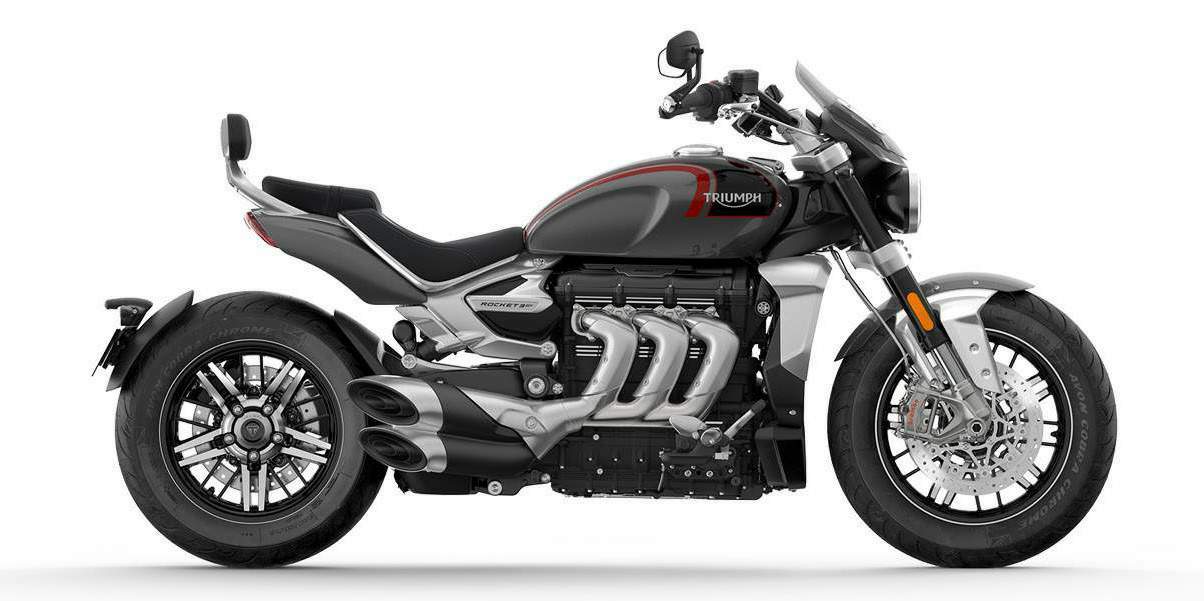

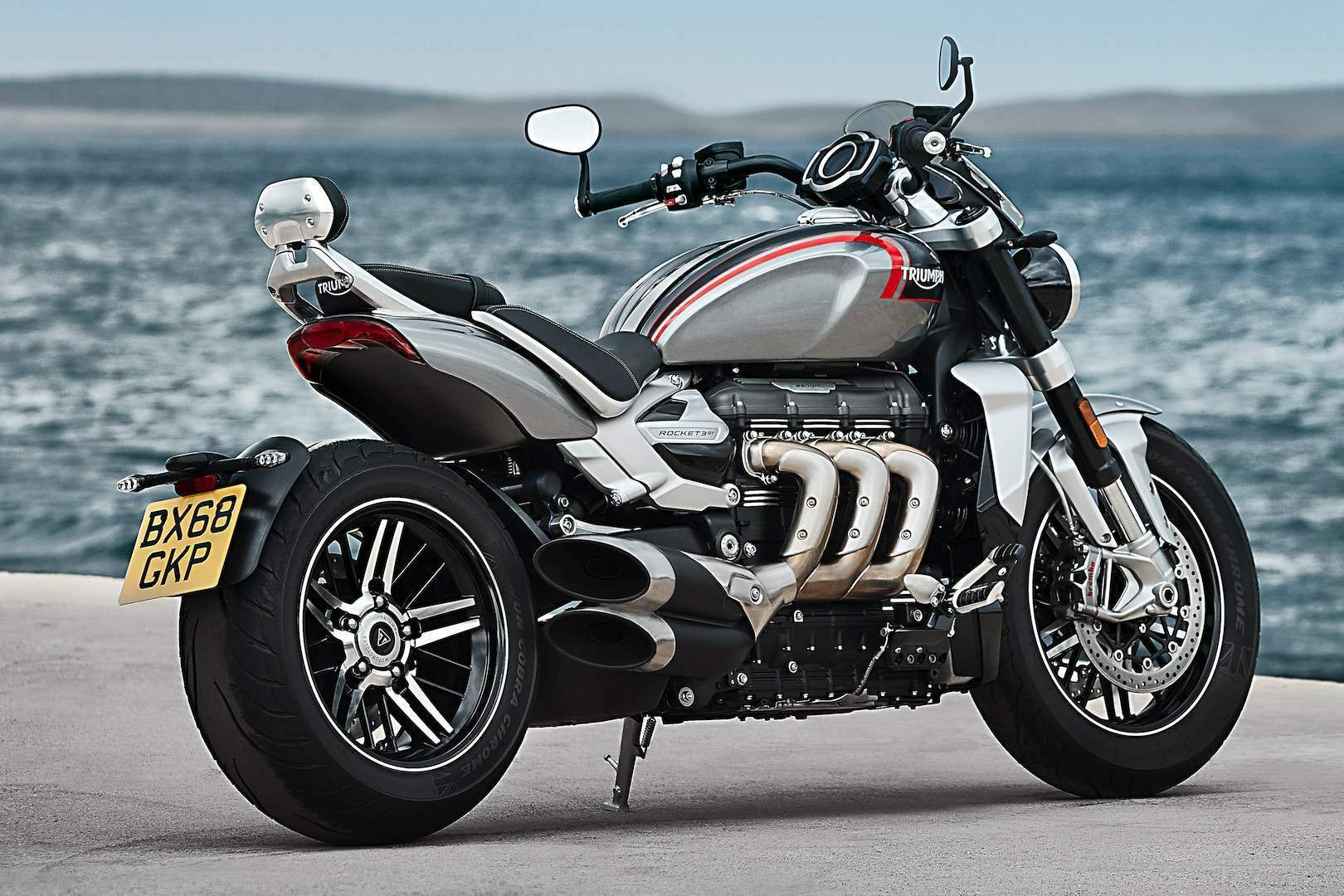

Triumph Rocket 3 GT is produced in 2020. Engine is Four stroke, inline 3-cylinder, DOHC, displacement 2458 cc / 150 cub in , produces power 123 kW / 167 PS / 165 hp @ 6000 rpm and 221 Nm / 163 ft-lb @ 4000 rpm. Triumph Rocket 3 GT weighs 294 kg / 648 lbs. Triumph Rocket 3 GT has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: Rocket 3 GT
Years: 2020
Engine: Four stroke, inline 3-cylinder, DOHC
Capacity: 2458 cc / 150 cub in
Bore x Stroke: 110.2 x 85.9 mm
Cooling System: Liquid cooled
Compression Ratio: 10.8:1
Induction: Ride-by-Wire, fuel injected
Lubrication: Wet sump
Exhaust: Stainless 3-into-1 headers with 3 exit silencer / CAT box
Ignition: Digital inductive type via electronic engine management
Starting: Electric
Max Power: 123 kW / 167 PS / 165 hp @ 6000 rpm
Max Torque: 221 Nm / 163 ft-lb @ 4000 rpm
Clutch: Wet, multi-plate hydraulically operated, torque assist
Transmission: 6 Speed
Final Drive: Shaft, bevel box
Frame: Full aluminum frame
Swingarm: Single-sided, cast aluminum
Front Suspension: Showa 47mm upside-down 1 1 cartridge front forks, compression and rebound adjuster.
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster
Rear Wheel Travel: 107 mm / 4.2 in
Front Brakes: 2x 320 mm discs w/ Brembo M4.30 Stylema 4-piston radial monobloc calipers, Cornering ABS
Rear Brakes: Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Cornering ABS
Front Wheel: 17 x 3.5 in cast aluminium
Rear Wheel: 16 x 7.5 in cast aluminium
Front Tyre: 150/80 R17 V
Rear Tyre: 240/50 R16 V
Rake: 27.9°
Trail: 134.9 mm / 5.3 in
Dimensions: Width 886 mm / 34.8 in - Handlebars Height 1066 mm / 41.5 in - Without Mirrors
Wheelbase: 1677 mm / 66 in
Seat Height: 750 mm / 29.7 in
Dry Weight: 294 kg / 648 lbs
Fuel Capacity: 18 Litres / 4.7 US gal
