Triumph Daytona 675R (2013) technical specifications

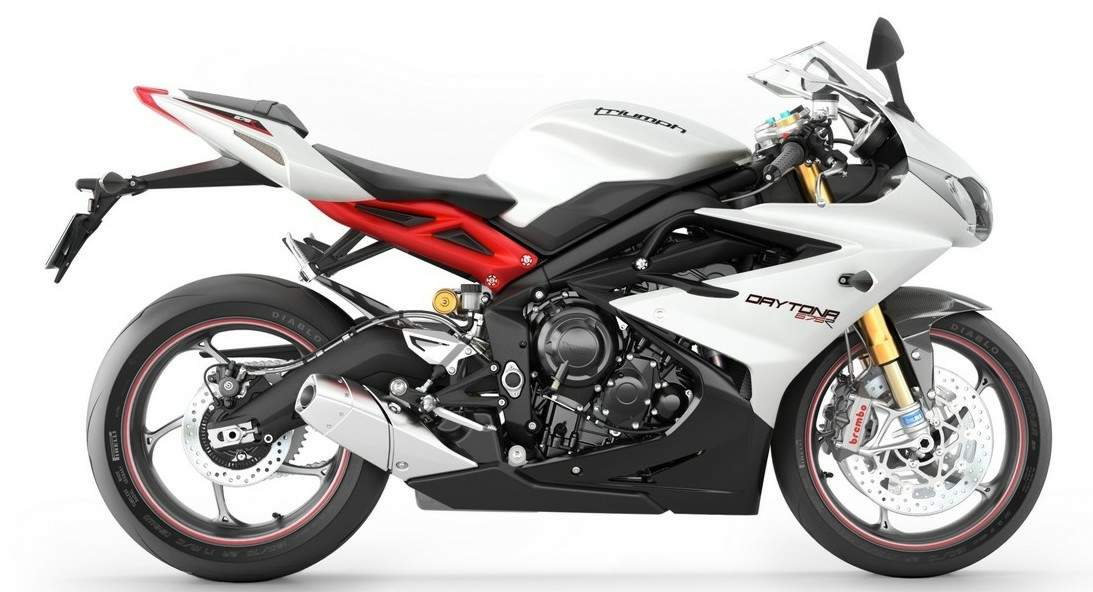

Triumph Daytona 675R technical specifications

Triumph Daytona 675R is produced in 2013. Engine is Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder., displacement 675 cc / 41.2 cu in , produces power 95.4 kW / 128 hp @ 12500rpm and 74 Nm / 7.5 kgf-m / 55 ft.lbs @ 11900rpm. Triumph Daytona 675R weighs 167 kg / 368lbs. Triumph Daytona 675R has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: Daytona 675R
Years: 2013
Engine: Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder.
Capacity: 675 cc / 41.2 cu in
Bore x Stroke: 76 x 49.6 mm
Cooling System: Liquid-cooled
Compression Ratio: 13.1:1
Lubrication: Wet sump
Oil Capacity: 3.6 Litres / 1.0 US gal / 0.8 Imp gal
Induction: Multipoint sequential electronic fuel injection with forced air induction and SAI
Exhaust: Stainless steel 3 into 1 system with valve in secondary and under engine silencer
Ignition: Digital - inductive type
Starting: Electric
Max Power: 95.4 kW / 128 hp @ 12500rpm
Max Torque: 74 Nm / 7.5 kgf-m / 55 ft.lbs @ 11900rpm
Clutch: Wet, multi-plate, slipper.
Transmission: 6 Speed
Final Drive: O-ring chain
Frame: Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm braced, twin-sided, aluminium alloy with adjustable pivot position
Front Suspension: Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping
Rear Wheel Travel: 133 mm / 5.2 in
Front Wheel: Front Cast aluminium alloy 5-spoke 17 x 3.5in
Rear Wheel: Rear Cast aluminium alloy 5-spoke 17 x 5.5in
Front Brakes: 2 x 308 mm Discs, 4 piston calipers, Brembo
Rear Brakes: Single 220 mm disc, 1 piston caliper, Brembo
Front Tyre: 120/70 ZR 17
Rear Tyre: 180/55 ZR 17
Rake: 23.0º
Trail: 87.7 mm / 3.4 in
Dimensions: Length 2045 mm / 80.4 in Width (handlebars) 695 mm / 27.3 in Height without mirrors 1112 mm / 43.7 in
Wheelbase: 1375 mm / 54.1 in
Seat Height: 820 mm / 32.3 in
Dry Weight: 167 kg / 368lbs
Wet Weight: 184 kg / 406 lbs
Fuel Capacity: 17.5 Litres / 4.6 US gal / 3.8 Imp gal
