Triumph Bonneville Bobber (2026) technical specifications

Triumph Bonneville Bobber is produced in 2026. Engine is Four stoke, parallel twin, 270? crank angle, SOHC, 4 valve per cylinder, displacement 1198 cc / 73.1 cu in , produces power 57.5 kW / 76.9 hp @ 6100 rpm and 106 Nm / 78.2 lb-ft @ 4000 rpm. Triumph Bonneville Bobber wet weight is 251 kg / 553 lbs. Triumph Bonneville Bobber has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Bonneville Bobber
Years:	2026
Engine:	Four stoke, parallel twin, 270? crank angle, SOHC, 4 valve per cylinder
Capacity:	1198 cc / 73.1 cu in
Bore x Stroke:	97.6 x 80 mm
Compression Ratio:	10.0:1
Cooling System:	Liquid cooled
Lubrication:	Wet sump
Exhaust:	Brushed stainless steel 2 into 2 twin-skin exhaust system with brushed stainless silencers
Emission:	Euro 5+
Induction:	Electronic fuel injection with electronic throttle control
Ignition:	Digital
Starting:	Electric
Max Power:	57.5 kW / 76.9 hp @ 6100 rpm
Max Torque:	106 Nm / 78.2 lb-ft @ 4000 rpm
Clutch:	Wet, multi-plate, slip and assist
Transmission:	6-Speed
Final Drive:	X-ring chain
Frame:	Tubular steel, twin cradle frame
Swingarm:	Twin sided turular steel
Front Suspension:	47 mm Showa cartridge forks
Front Wheel Travel:	90 mm / 3.5 in

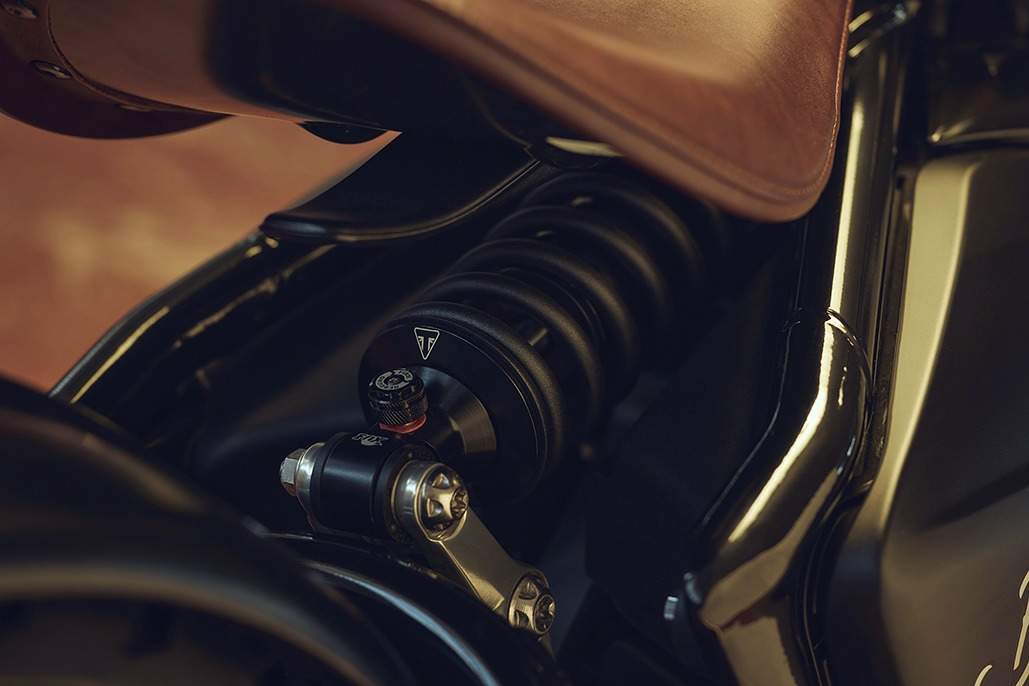

Rear Suspension:	KYB monoshock (RSU), linkage and preload adjustment
Rear Wheel Travel:	73 mm / 2.8 in
Front Brakes:	2x 310mm disc, Brembo 2-piston sliding axial calipers
Rear Brakes:	Single 255mm disc, Nissin single piston sliding axial caliper OCABS
ABS:	Standard
Front Wheels:	Wire 32-spoke, 16 x 2.5 in
Rear Wheels:	Wire 32-spoke, 16 x 3.5 in
Front Tyre:	130/90-16
Rear Tyre:	150/80-16
Rake:	25.4?
Trail:	92.0 mm / 3.6 in
Dimensions:	Length: 2220 mm / 87.4 in Width: 7920 mm / 31.2 in Height: 1044 mm / 41.1 in
Wheelbase:	1486 mm / 58.5 in
Seat Height:	683 mm / 26.9 in
Wet Weight:	251 kg / 553 lbs
Fuel Capacity:	14 Litres / 3.7 US gal
Instruments:	Analogue speedometer with LCD multi-functional display
