Triumph America (2015-16) technical specifications

Triumph America technical specifications

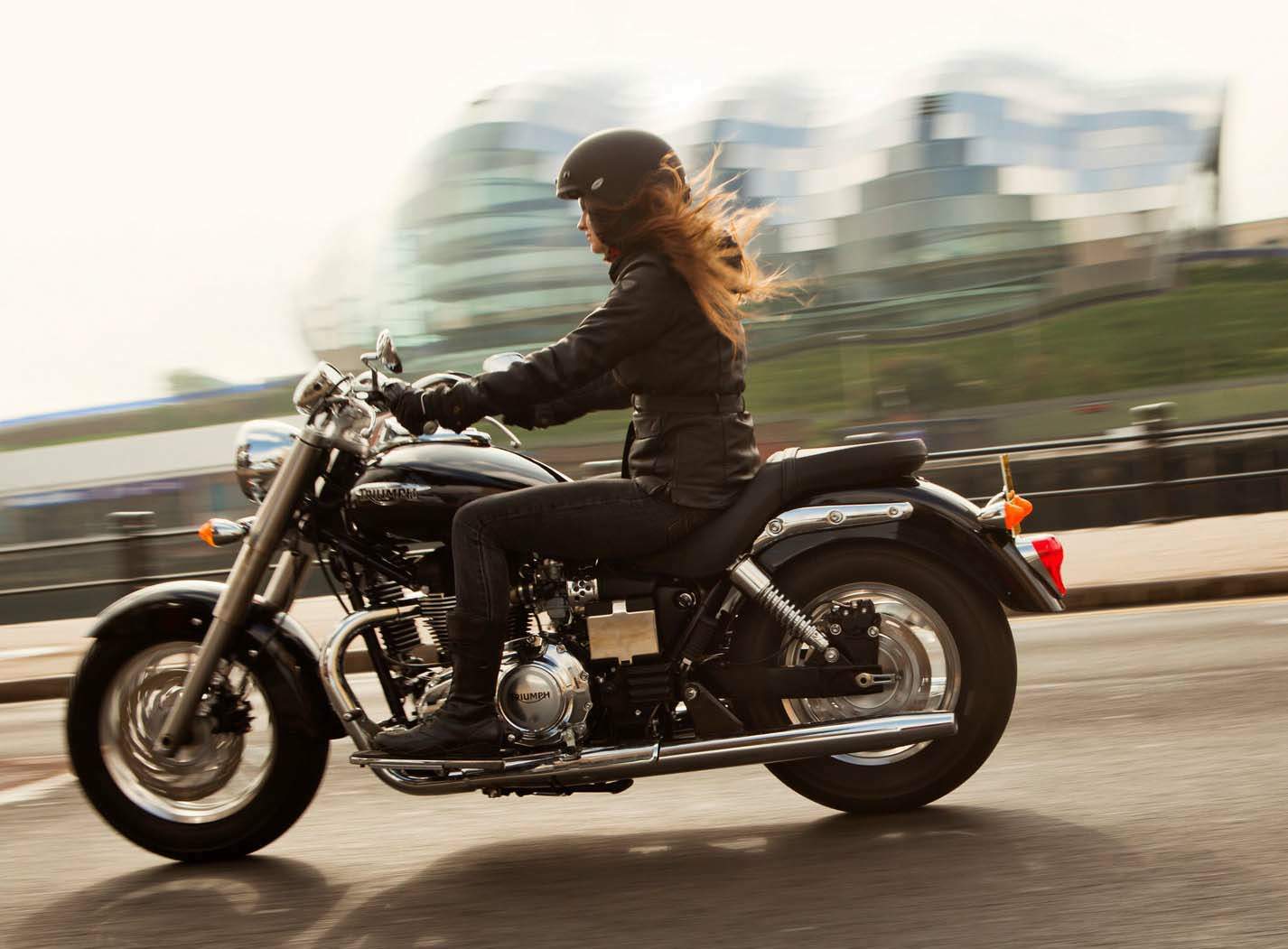

Triumph America is produced in 2015-16. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, 360° firing interval, displacement 865 cc / 52.8 cub in. , produces power 45.5 kW / 61 hp @ 6800 rpm and 72 Nm / 7.34 kgf-m / 53.1 ft-lb @ 3300 rpm. Triumph America weighs 231 kg / 509 lbs. Triumph America has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: America
Years: 2015-16
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, 360° firing interval
Capacity: 865 cc / 52.8 cub in.
Bore x Stroke: 90 x 68 mm
Cooling System: Air-cooled
Compression Ratio: 9.2:1
Induction: Twin carburettors, with throttle position sensor and electric carburettor heaters
Lubrication: Wet sump
Engine Oil: Synthetic, 15W/50
Oil Capacity: 4.5 L / 1.2 US gal / 1.0 Imp gal
Exhaust: Stainless steel twin-walled headers, twin chromed silencers
Ignition: Digital
Starting: Electric
Max Power: 45.5 kW / 61 hp @ 6800 rpm
Max Torque: 72 Nm / 7.34 kgf-m / 53.1 ft-lb @ 3300 rpm
Clutch: Wet multi plate
Transmission: 5 Speed
Final Drive: Chain, X-ring
Frame: Tubular steel cradle, swing arm: twin-sided, tubular steel
Front Suspension: 41mm Kayaba telescopic forks, polished stainless steel shrouds
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Kayaba chrome spring twin shocks with adjustable preload
Rear Wheel Travel: 96 mm / 3.8 in
Front Brakes: Single 310 mm disc, Nissin 2 piston floating caliper
Rear Brakes: Single 285 mm disc, Nissin 2 piston floating caliper
Wheels Front: Cast aluminum alloy, 12 spoke, 16 x 3.0 inch
Wheels Rear: Cast aluminum alloy, 12 spoke, 15 x 4.0 inch
Front Tyre: 130/90 - 16
Rear Tyre: 170/80 B15
Rake: 33.3°
Trail: 143 mm / 5.6 in
Dimensions: Length 2387 mm / 94.0 in Width 920 mm / 36.2 in (at handlebars) Height 1175 mm / 46.3 in (without mirrors)
Wheelbase: 1610 mm / 63.4 in
Seat Height: 690 mm / 27.2 in
Dry Weight: 231 kg / 509 lbs
Wet Weight: 250 kg / 551 lbs
Fuel Capacity: 19.3 Litres / 5.1 US gal / 4.2 Imp gal
