Triumph America (2002-03) technical specifications

Triumph America technical specifications

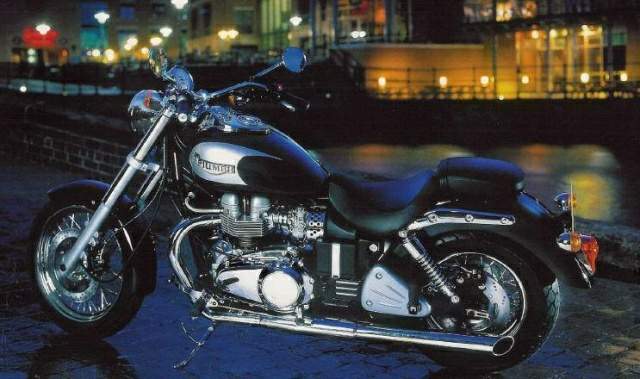

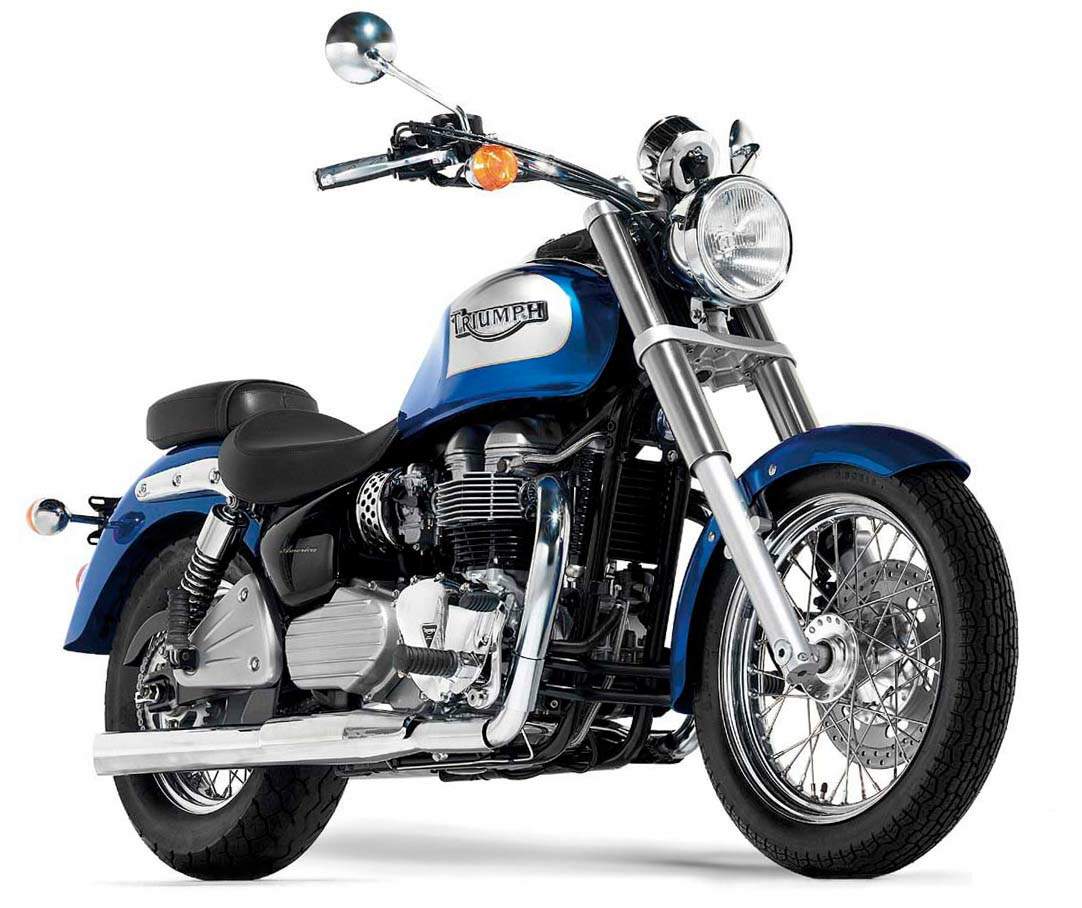

Triumph America is produced in 2002-03. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 790 cc / 48.2 cu in , produces power 45.2 kW / 62 hp @ 7400 rpm and 60 Nm / 6.12 kg-m / 44.3 lb-ft @ 3500 rpm. Triumph America top speed is 178.7 km/h / 111 mph. Triumph America weighs 225 kg / 496 lbs. Triumph America has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: America
Years: 2002-03
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity: 790 cc / 48.2 cu in
Bore x Stroke: 86 x 68 mm
Cooling System: Air-cooled
Compression Ratio: 9.2:1
Induction: Twin 35 mm carburetors
Ignition: Digital CDI
Starting: Electric
Max Power: 45.2 kW / 62 hp @ 7400 rpm
Max Torque: 60 Nm / 6.12 kg-m / 44.3 lb-ft @ 3500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 5 Speed
Final Drive: Chain
Frame: Steel, double cradle frame
Front Suspension: 41 mm Fork
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Chrome spring twin shocks with adjustable preload
Rear Wheel Travel: 105 mm / 4.13 in
Front Brakes: Single 310mm disc, 2 piston caliper, Nissen
Rear Brakes: Single 255mm disc, 2 piston caliper, Nissen
Front Tyre: 110/90 R18 Bridgestone
Rear Tyre: 170/80 R15 Bridgestone
Rake: 33.3°
Dimensions: Length 2424 mm / 95.4 in Width 955 mm / 37.6 in Height 1184 mm / 46.6 in
Wheelbase: 1655 mm / 65.2 in
Seat Height: 720mm / 28.3 in
Dry Weight: 225 kg / 496 lbs
Wet Weight: 250 kg / 550 lbs
Fuel Capacity: 17 Litres / 4.4 US gal / 3.7 Imp gal
Consumption Average: 5.0 L/100 km / 20.2 km/l / 47.5 US mpg / 57.1 Imp mpg
Standing ¼ Mile: 14.7 sec
Top Speed: 178.7 km/h / 111 mph
