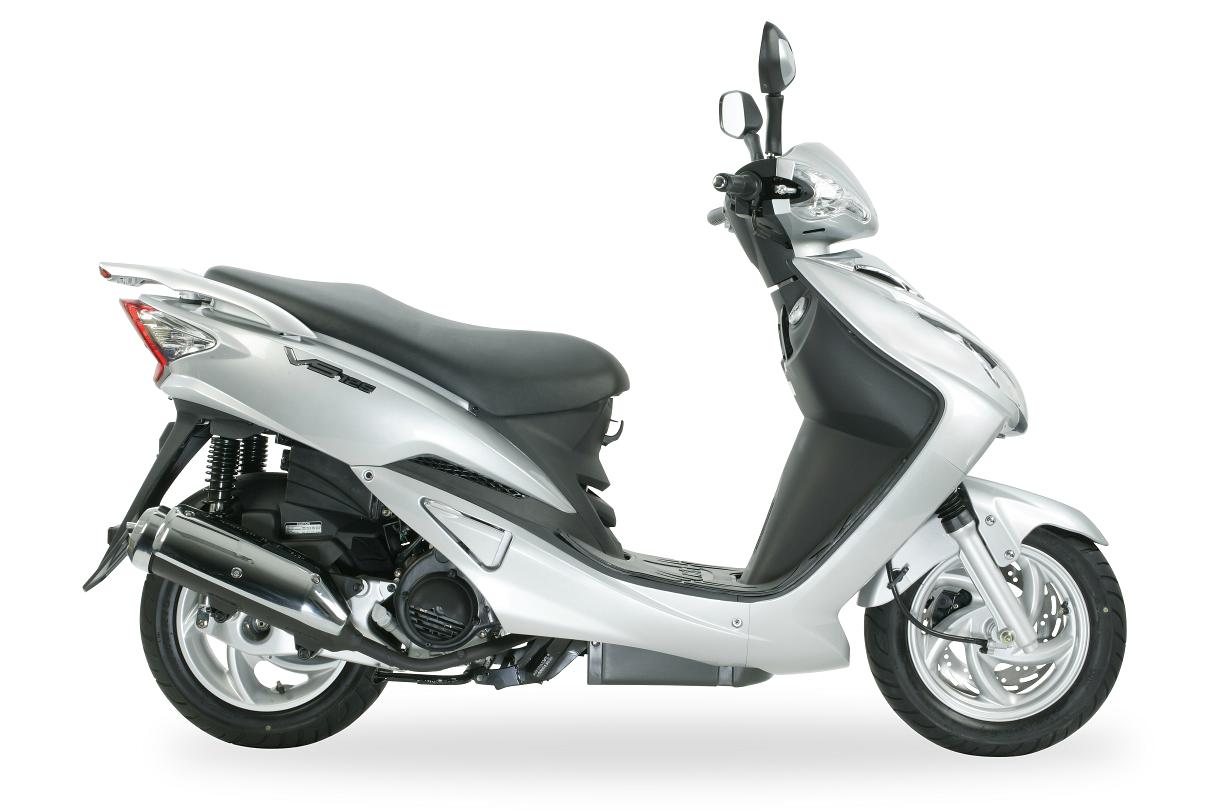

SYM Symphony VS 150 (2014) technical specifications

SYM Symphony VS 150 technical specifications

SYM Symphony VS 150 is produced in 2014. Engine is Single cylinder, 4-stroke, 4-valve, SOHC, displacement 149.5 cc / 9.1 cub in. , produces power 9.4 kW / 12.8 hp @ 8000 rpm and 12.4 Nm / 1.26 kgf-m / 9.14 ft/lbs @ 6500 rpm. SYM Symphony VS 150 top speed is 103 km/h / 64 mph. SYM Symphony VS 150 wet weight is 132 kg / 291 lbs. SYM Symphony VS 150 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Symphony VS 150
Years: 2014
Engine: Single cylinder, 4-stroke, 4-valve, SOHC
Capacity: 149.5 cc / 9.1 cub in.
Cooling System: Air cooled, forced
Compression Ratio: 11.2:1
Lubrication: Dry sump
Engine Oil Capacity: 1.05 L / 2.2 US pints
Transmission Oil Capacity: 0.11 L / 0.23 US pints
Exhaust: Single
Fuel System: Carburetor (CV)
Ignition: CDI
Battery: 12V 8.6 Ah
Spark Plug: NGK CR 8E
Starting: Electric & kick
Max Power: 9.4 kW / 12.8 hp @ 8000 rpm
Max Torque: 12.4 Nm / 1.26 kgf-m / 9.14 ft/lbs @ 6500 rpm
Clutch: Centrifugal
Transmission: CVT
Final Drive: Belt
Frame: Steel, monocuna split steel tube
Front Suspension: Telescopic fork
Rear Suspension: Single hydraulic shock absorber adjustable preload
Front Brakes: Hydraulic disc, 273 mm
Rear Brakes: Disc, 130 mm
Wheels: Aluminium
Front Tyre: 110/80-12 61L
Rear Tyre: 130/70-12 64L
Dimensions: Length: 1935 mm / 76.2 in. Width: 680 mm / 26.8 in. Height: 1130 mm / 44.5 in.
Wheelbase: 1345 mm / 52.9 in.
Ground Clearance: 130 mm / 5.1 in.
Seat Height: 780 mm / 30.7 in.
Wet Weight: 132 kg / 291 lbs
Fuel Capacity: 5.5 L / 1.5 US gal
Average Fuel Consumption: 2.3 L/100 km / 44 km/l / 103 US mpg
Top Speed: 103 km/h / 64 mph
Climbing Capacity: 28°
Colours: Black, White, Blue
Review: Thescooterreview, Scootersales
