SYM Citicom 125 (2009-14) technical specifications

SYM Citicom 125 technical specifications

SYM Citicom 125 is produced in 2009-14. Engine is Single cylinder, 4-stroke, 4V, SOHC, displacement 124.5 cc / 7.6 cub in. SYM Citicom 125 top speed is 106 km/h / 66 mph. SYM Citicom 125 weighs 167 kg / 368 lbs. SYM Citicom 125 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Citicom 125
Years: 2009-14
Engine: Single cylinder, 4-stroke, 4V, SOHC
Capacity: 124.5 cc / 7.6 cub in.
Bore and Stroke: 57 x 48.8 mm
Compression Ratio: 10.5:1
Cooling System: Liquid cooled
Engine Oil Capacity: 1.0 L / 2.1 US pints
Transmission Oil Capacity: 0.11 L / 0.23 US pints
Lubrication: Dry sump
Exhaust: Single
Fuel System: Carburetor (CV)
Induction: Electronic
Ignition: CDI
Battery: 12V, 8 Ah
Starting: Electric
Spark Plug: NGK CR 7E
Clutch: Centrifugal
Maximum Power: 9.7 kW / 13.2 hp @ 8500 rpm
Maximum Torque: 12 Nm / 1.22 kgf-m / 8.85 ft/lb
Transmission: CVT
Final Drive: Belt
Frame: Pipe under bone, steel
Front Suspension: Telescopic fork
Front Wheel Travel: 100 mm / 3.9 in

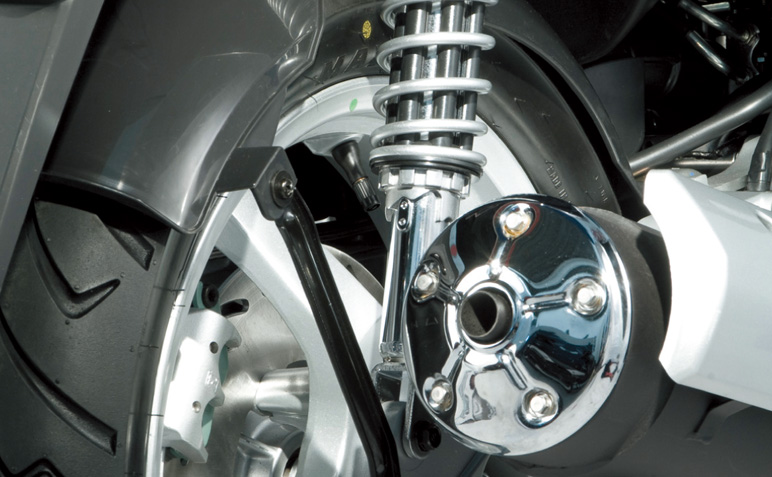

Rear Suspension: Twin sided swing arm, adjustable dampers
Rear Wheel Travel: 91 mm / 3.6 in.
Front Brakes: Single hydraulic disc, 260 mm
Rear Brakes: Disc, 220 mm
Wheels: Aluminium
Front Wheel: MT 3.50 x 15 in.
Rear Wheel: MT 3.75 x 14 in.
Front Tyre: 120/70-15 56P
Rear Tyre: 140/70-14 68P
Dimensions: Length: 2210 mm / 87.0 in. Width: 785 mm / 30.9 in. Height: 1445 mm / 56.9 in.
Wheelbase: 1500 mm / 59.0 in.
Turning Diameter: 4370 mm / 14.3 ft
Seat Height: 800 mm / 31.5 in.
Dry Weight: 167 kg / 368 lbs
Fuel Capacity: 10 L / 2.6 US gal
Average Fuel Consumption: 4.5 L /100 km / 22.2 km/l / 52.3 US mpg
Top Speed: 106 km/h / 66 mph
0 - 100m / 0 - 328 ft: 9.7 sec
Colours: White
