Suzuki VL 250LC Intruder (2000-04) technical specifications

Suzuki VL 250LC Intruder technical specifications

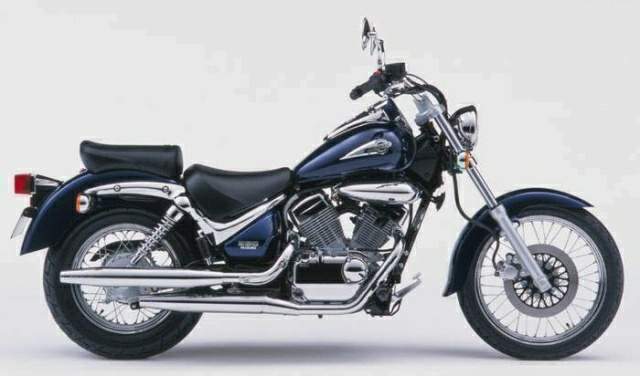

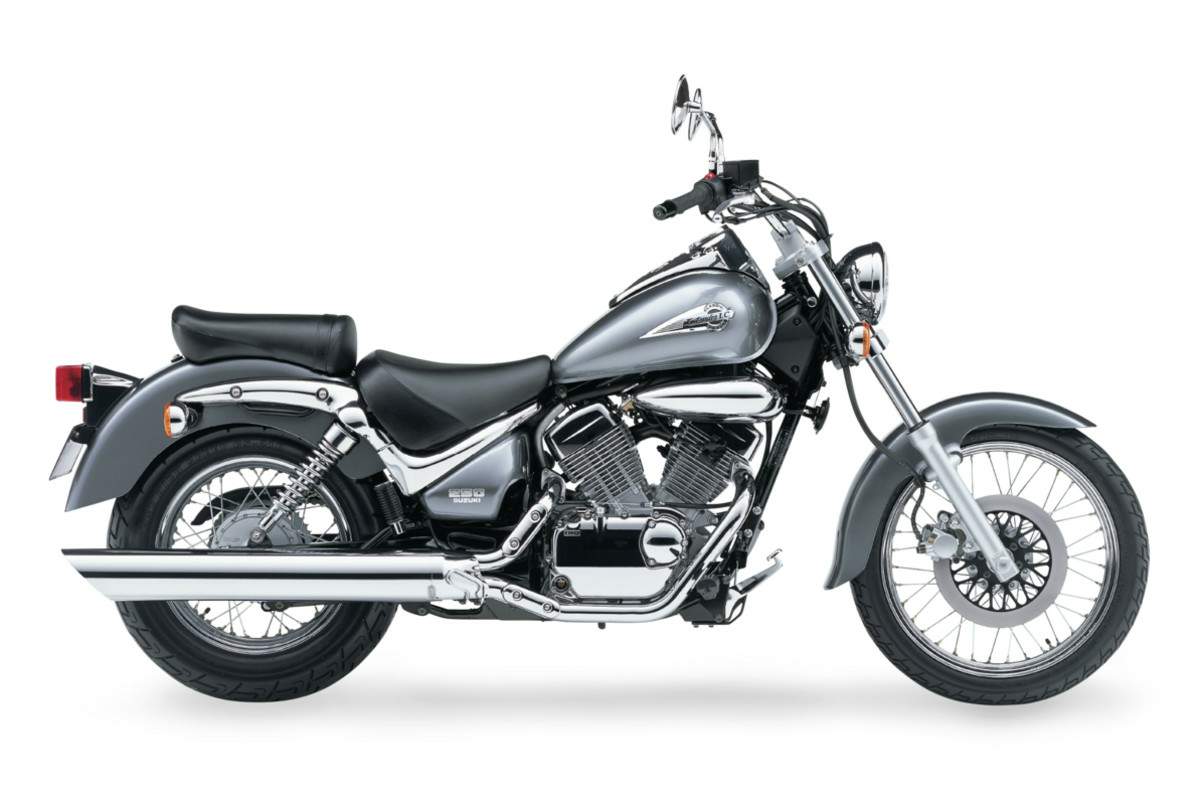

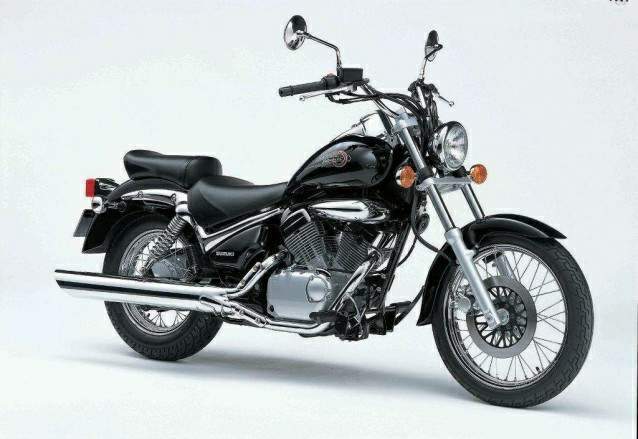

Suzuki VL 250LC Intruder is produced in 2000-04. Engine is Four stroke, 65° V-Twin, SOHC, 3 valves per cylinder, displacement 248 cc / 15.1 cu in , produces power 17.5 kW / 24 hp @ 8500 rpm and 23 Nm / 2.3 kgf-m @ 6000 rpm. Suzuki VL 250LC Intruder weighs 143 kg / 315 lbs. Suzuki VL 250LC Intruder has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VL 250LC Intruder
Years: 2000-04
Engine: Four stroke, 65° V-Twin, SOHC, 3 valves per cylinder
Capacity: 248 cc / 15.1 cu in
Bore x Stroke: 52 x 58.5 mm
Compression Ratio: 10.5:1
Cooling System: Air cooled
Lubrication System: Wet sump
Induction: BDS26
Ignition: Full transistor system
Starting: Electric
Max Power: 17.5 kW / 24 hp @ 8500 rpm
Max Torque: 23 Nm / 2.3 kgf-m @ 6000 rpm
Clutch: Wet, multi-plate
Transmission: 5 Speed, constant mesh
Final Drive: Chain
Primary Reduction: 3.173:1
Gear Ratios: 1st 2.636 / 2nd 1.647 / 3rd 1.217 / 4th 0.952 / 5th 0.818:1
Final Reduction: 2.866:1
Frame: Semi-double cradle
Rake: 31o
Trail: 121 mm / 4.8 in
Front Suspension: Telescopic fork, 37 mm, oil/coil damped
Rear Suspension: Twin shock, coil springs, 5 way adjustable
Front Brakes: Single 275 mm disc, 1 piston caliper
Rear Brakes: 130 mm Drum
Front Tyre: 90/90-17
Rear Tyre: 150/80-15
Dimensions: Length: 2240 mm / 88.2 in Width: 880 mm / 34.6 in Height: 1110 mm / 43.7 in
Wheelbase: 1520 mm / 59.8 in
Ground Clearance: 150 mm / 5.9 in
Seat Height: 685 mm / 27.0 in
Dry Weight: 143 kg / 315 lbs
Wet Weight: 159 kg / 350 lbs
Fuel Capacity: 12 Litres / 3.2 US gal / 2.6 Imp gal
