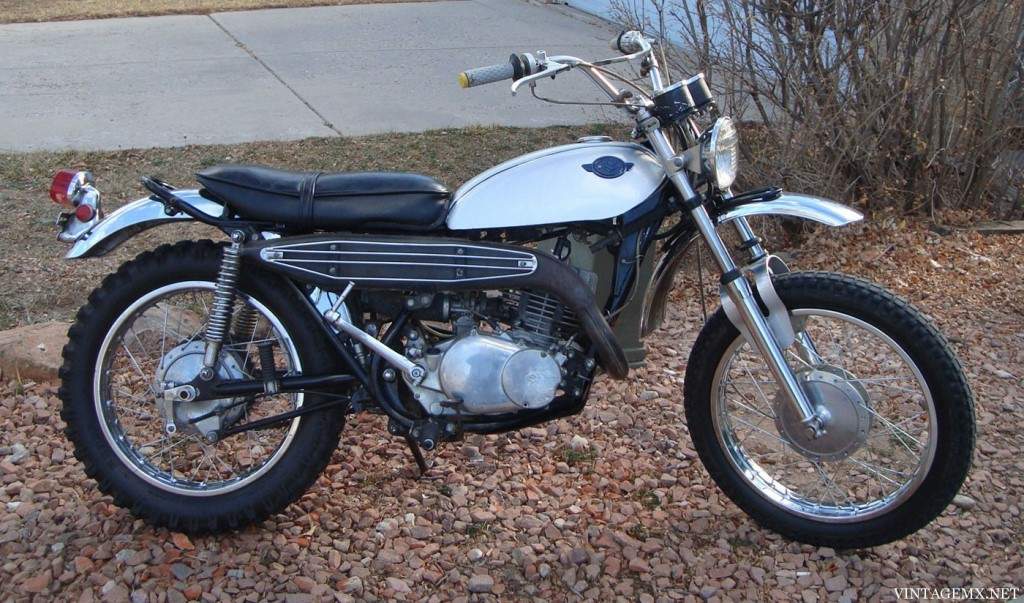

Technical specifications
|
| Model: |
TS 250 |
| Years: |
1969-72 |
|
Engine:
|
Two stroke, single cylinder
|
|
Capacity:
|
246 cc / 15.0 cu in
|
|
Bore x Stroke:
|
72 x 64 mm
|
|
Compression Ratio:
|
6.7:1
|
|
Cooling System:
|
Air cooled
|
|
Lubrication System:
|
Fuel/oil mix, Posi-force, CCI
|
|
Exhaust:
|
Single, high drawn
|
|
Ignition:
|
Suzuki PEI
|
|
Starting:
|
Kick
|
|
Max Power:
|
17.2 kW / 23 hp @ 6500 rpm
|
|
Max Torque:
|
26.5 Nm / 2.7 kgf-m / 19.6 lb-ft @ 5000 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Telescopic fork, oil damped
|
|
Rear Suspension:
|
Dual shocks, coil springs
|
|
Front Brakes:
|
Drum
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
3.00-19
|
|
Rear Tyre:
|
4.00-18
|
|
Dimensions:
|
Length: 2115 mm / 83.3 in Width: 880 mm / 34.6 in Height: 1125 mm / 44.3 in
|
|
Wheelbase:
|
1370 mm / 53.9 in
|
|
Ground Clearance:
|
240 mm / 9.5 in
|
|
Seat Height:
|
820 mm / 32.3 in
|
|
Dry Weight:
|
128 kg / 282 lbs
|
