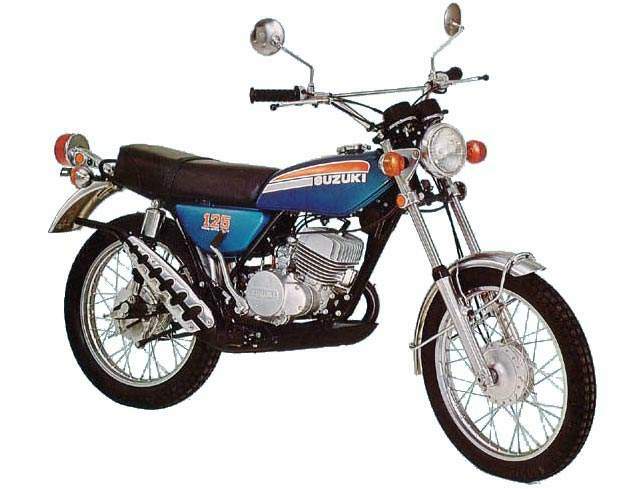

Suzuki TS 125 (1971-73) technical specifications
Suzuki TS 125 is produced in 1971-73. Engine is Two stroke, single cylinder, displacement 123 cc / 7.5 cu in , produces power 10.4 kW / 14 hp @ 7000 rpm and 14.7 Nm / 1.5 kgf-m / 10.8 lb-ft @ 6000 rpm.. Suzuki TS 125 top speed is 105 km/h / 65 mph. Suzuki TS 125 weighs 90 kg / 198 lbs. Suzuki TS 125 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | TS 125 |
| Years: | 1971-73 |
| Engine: | Two stroke, single cylinder |
| Capacity: | 123 cc / 7.5 cu in |
| Bore x Stroke: | 56 x 50 mm |
| Compression Ratio: | 6.7:1 |
| Cooling System: | Air cooled |
| Lubrication System: | CCI automatic lube |
| Starting: | Kick |
| Max Power: | 10.4 kW / 14 hp @ 7000 rpm |
| Max Torque: | 14.7 Nm / 1.5 kgf-m / 10.8 lb-ft @ 6000 rpm. |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic fork |
| Rear Suspension: | Swingarm, twin shocks, 5-way adjustable |
| Front Brakes: | Drum |
| Rear Brakes: | Drum |
| Front Tyre: | 2.75-19 |
| Rear Tyre: | 3.25-18 |
| Dimensions: | Length: 2050 mm / 80.7 in Width: 770 mm / 30.3 in Height: 1100 mm / 43.3 in |
| Wheelbase: | 1310 mm / 51.6 in |
| Ground Clearance: | 236 mm / 9.3 in |
| Climbing Ability: | 34o |
| Dry Weight: | 90 kg / 198 lbs |
| Fuel Capacity: | 9.5 Litres / 2.5 US gal / 2.1 Imp gal |
| Standing ¼ Mile: | 19.6 sec |
| Top Speed: | 105 km/h / 65 mph |
