Suzuki T 500 K/L (1971-73) technical specifications

Suzuki T 500 K/L technical specifications

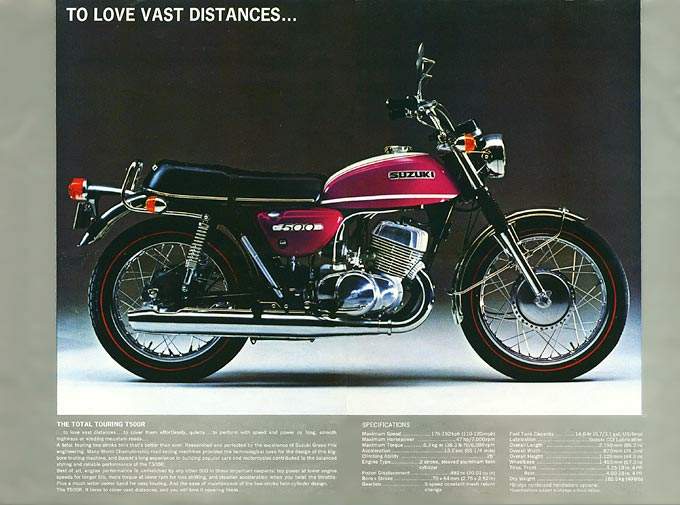

Suzuki T 500 K/L is produced in 1971-73. Engine is Two stroke, parallel two cylinder, displacement 492 cc / 30 cu in , produces power 32.8 kW / 44 hp @ 7000 rpm and 50.8 Nm / 5.2 kgf-m / 37.5 lb-ft @6000 rpm. Suzuki T 500 K/L weighs 186 kg / 410 lbs. Suzuki T 500 K/L has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: T 500 K/L
Years: 1971-73
Engine: Two stroke, parallel two cylinder
Capacity: 492 cc / 30 cu in
Bore x Stroke: 70 x 64 mm
Compression Ratio: 6.6:1
Cooling System: Air cooled
Lubrication System: Posi-force
Induction: 2 x 32 mm Mikuni carburetors
Starting: Kick
Max Power: 32.8 kW / 44 hp @ 7000 rpm
Max Torque: 50.8 Nm / 5.2 kgf-m / 37.5 lb-ft @6000 rpm
Transmission: 5 Speed
Final Drive: Chain
Frame: Dual downtube cradle
Front Suspension: Telescopic forks
Rear Suspension: Dual shock absorbers
Front Brakes: Drum
Rear Brakes: Drum
Front Tyre: 3.00-18
Rear Tyre: 3.25-16
Dimensions: Length: 2195 mm / 86.4 in Width: 880 mm / 34.7 in Height: 1105 mm / 43.5 in
Wheelbase: 1455 mm / 57.3 in
Dry Weight: 186 kg / 410 lbs
Top Speed (est): 185 km/h / 115 mph
