Suzuki T 250 Hustler (1967-69) technical specifications

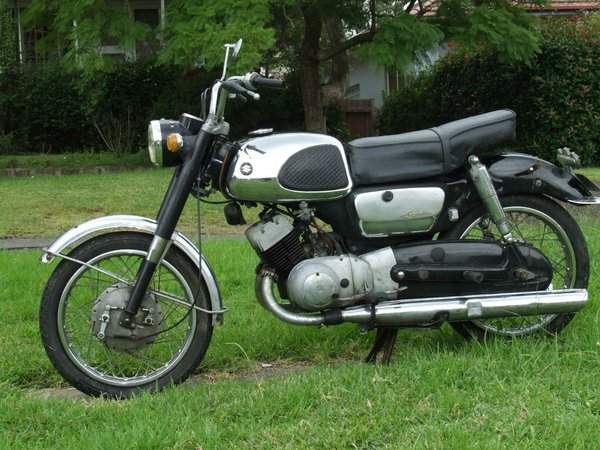

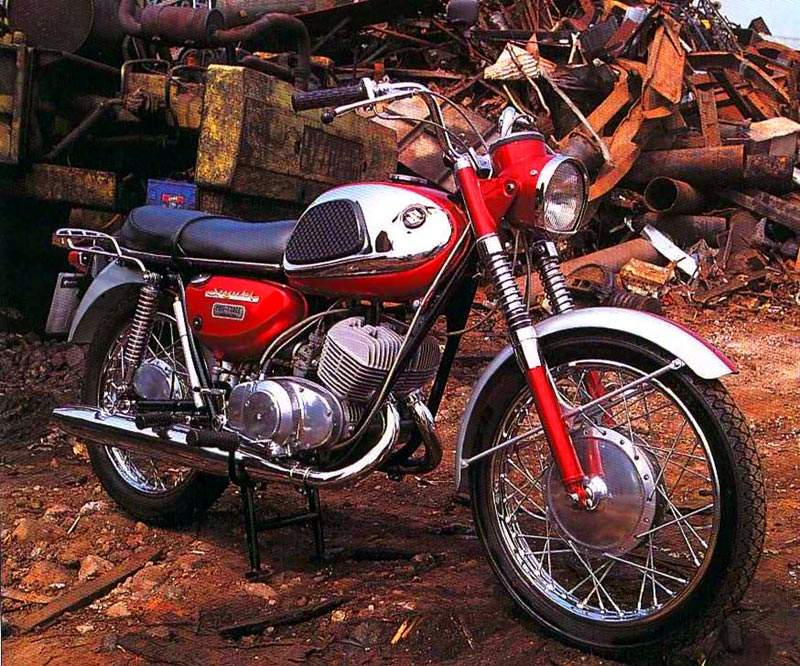

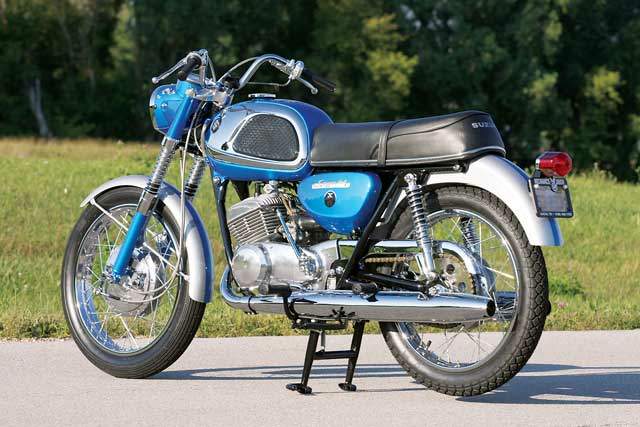

Suzuki T 250 Hustler is produced in 1967-69. Engine is Two stroke, parallel twin, aluminium sleeved, displacement 247 cc / 15.1 cu in , produces power 24.6 kW / 33 hp @ 8000 rpm and 30.2 Nm / 3.1 kgf-m / 22.3 lb-ft @ 7000 rpm. Suzuki T 250 Hustler weighs 140 kg / 309 lbs. Suzuki T 250 Hustler has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | T 250 Hustler |
| Years: | 1967-69 |
| Engine: | Two stroke, parallel twin, aluminium sleeved |
| Capacity: | 247 cc / 15.1 cu in |
| Bore x Stroke: | 54 x 54 mm |
| Compression Ratio: | 7.5:1 |
| Cooling System: | Air cooled |
| Lubrication System: | Posi-Force lubrication |
| Exhaust: | 2-into-2 |
| Induction: | 2 x Mikuni VM22SH carburetors |
| Ignition: | Battery and coil |
| Starting: | Kick |
| Battery: | 12V, 5Ah |
| Spark Plug: | NGK B-77HC |
| Max Power: | 24.6 kW / 33 hp @ 8000 rpm |
| Max Torque: | 30.2 Nm / 3.1 kgf-m / 22.3 lb-ft @ 7000 rpm |
| Clutch: | Wet,multi-plate |
| Transmission: | 6-Speed, constant mesh |
| Final Drive: | Chain |
| Primary Reduction: | 3.05 (61/20) |
| Gear Ratios: | 1 st 2.33 (28/12) / 2nd 1.50 (24/16) / 3rd 1.16 (22/19) / 4th 0.90 (19/21) / 5th 0.78 (18/23) / 6th 0.71 (17/24) |
| Final Reduction: | 2.93 (41/14) |
| Front Suspension: | Telescopic hydraulic fork |
| Rear Suspension: | Twin, plunger type hydraulic shocks, swingarm |
| Front Brakes: | Drum, internal expanding, leading shoe, double cam |
| Rear Brakes: | Drum, internal expanding, leading shoe |
| Front Tyre: | 2.75-18 4PR |
| Rear Tyre: | 3.00-18 4PR |
| Caster: | 64o |
| Dimensions: | Length: 1985 mm / 78.2 in Width: 870 mm / 34.2 in Height: 1065 mm / 41.9 in |
| Trail: | 87 mm / 3.43 in |
| Wheelbase: | 1290 mm / 50.8 in |
| Ground Clearance: | 155 mm / 6.1 in |
| Seat Height: | 780 mm / 30.7 in |
| Turning Radius: | 2.2 m / 7.2 ft |
| Dry Weight: | 140 kg / 309 lbs |
| Oil Capacity: | 1.8 L / 1.9 US qt / 1.6 Imp qt |
| Fuel Capacity: | 12 L / 3.2 US gal / 2.6 Imp gal |
| Top Speed (est.): | 168 km/h / 105 mph |
