Suzuki SV 650 (2016-17) technical specifications

Suzuki SV 650 technical specifications

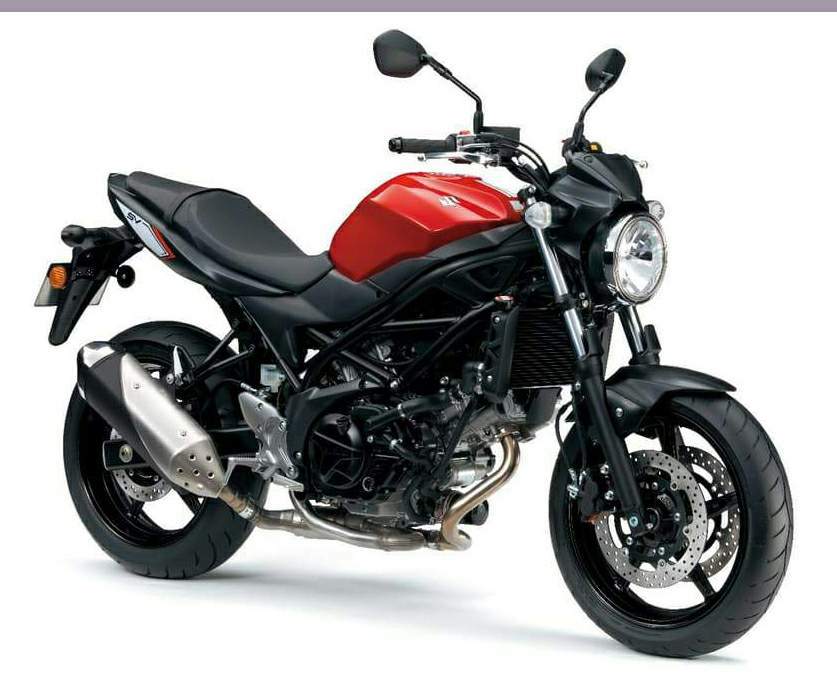

Suzuki SV 650 is produced in 2016-17. Engine is Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder, displacement 645 cc / 39.3 cu in , produces power 56 kW / 75 hp @ 8500 rpm and 64 Nm / 6.5 kgf-m / 47.2 lb-ft @ 8100 rpm. Suzuki SV 650 weighs Non ABS: 195 kg / 430 lbs, ABS: 197 kg / 434 lbs. Suzuki SV 650 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: SV 650
Years: 2016-17
Engine: Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder
Capacity: 645 cc / 39.3 cu in
Bore x Stroke: 81 x 62.6 mm
Cooling System: Liquid cooled
Compression Ratio: 11.2:1
Lubrication: Wet sump
Induction: Fuel Injection, 39mm throttle bodies
Ignition: Electronic ignition (Transistorized)
Starting: Electric
Max Power: 56 kW / 75 hp @ 8500 rpm
Max Torque: 64 Nm / 6.5 kgf-m / 47.2 lb-ft @ 8100 rpm
Transmission: 6 Speed, constant mesh
Final Drive: Chain, DID525V8, 114 links
Frame: Compact trellis steel frame
Rake: 25o
Trail: 104 mm / 4.1 in
Front Suspension: Telescopic fork, coil spring, oil damped
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Link type, coil spring, oil damped, spring preload 7-step adjustable
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2 x 290 mm Discs, 2 piston calipers, / ABS
Rear Brakes: Single 240 mm disc, 1 piston caliper, / ABS
Front Wheel: 3.50 x 17, Aluminium alloy, 5-spoke
Rear Wheel: 5.00 x 17, Aluminium alloy, 5-spoke
Front Tyre: 120/70 ZR17M/C 58W, tubeless
Rear Tyre: 160/60 ZR17M/C 69W, tubeless
Dimensions: Length 2140 mm / 84.2 in Width 760 mm / 29.9 in Height 1090mm / 42.9 in
Wheelbase: 1445 mm / 56.9 in
Seat Height: 785 mm / 30.9 in
Ground clearance: 135mm / 5.3 in
Dry Weight: Non ABS: 195 kg / 430 lbs, ABS: 197 kg / 434 lbs
Fuel Capacity: 14.5 Litres / 3.8 US gal / 3.2 Imp gal
