Suzuki ST 250E (2004-07) technical specifications

Suzuki ST 250E technical specifications

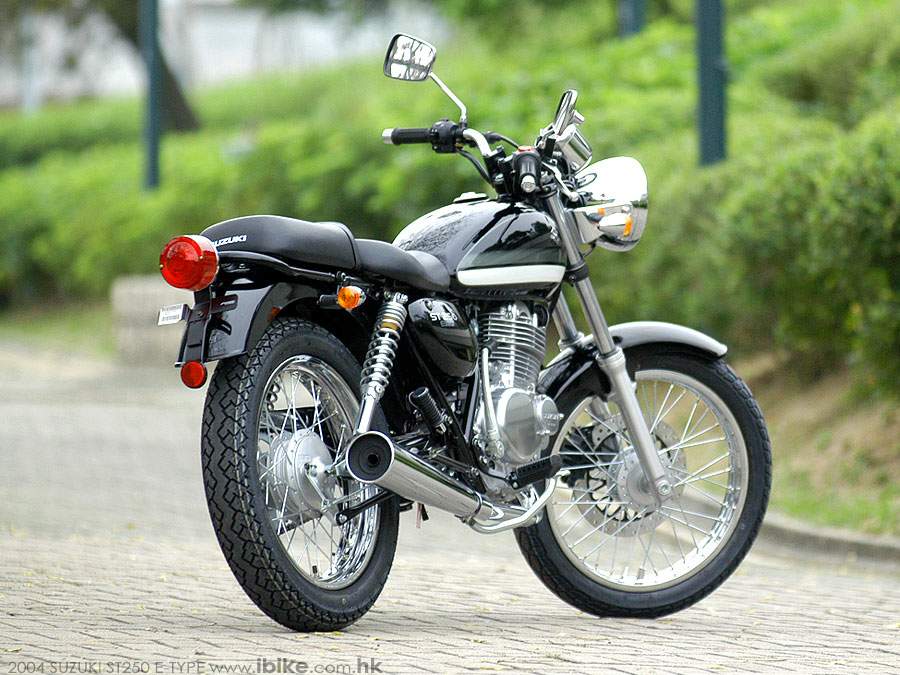

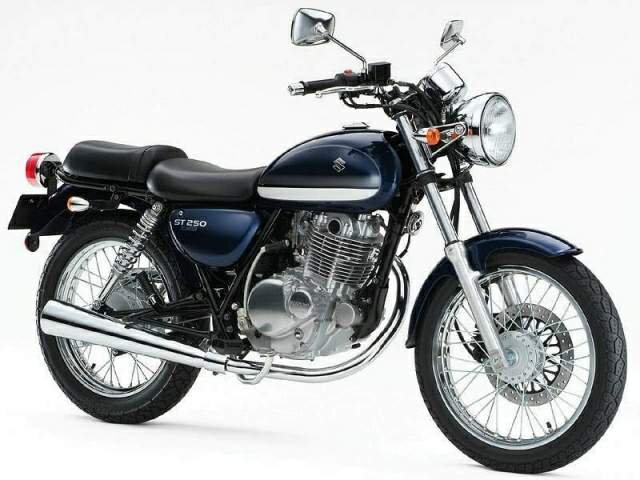

Suzuki ST 250E is produced in 2004-07. Engine is Four stroke, single cylinder, SOHC, 2 valves, displacement 249 cc / 15.2 cu in , produces power 15 kW / 20 hp @ 7500 rpm and 22 Nm / 2.2 kgf-m / 16.2 lb-ft @ 6000 rpm. Suzuki ST 250E top speed is 121 km/h / 75 mph. Suzuki ST 250E weighs 129 kg / 284lbs. Suzuki ST 250E has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: ST 250E
Years: 2004-07
Engine: Four stroke, single cylinder, SOHC, 2 valves
Capacity: 249 cc / 15.2 cu in
Bore x Stroke: 72.0 x 61.2 mm
Compression Ratio: 9.2:1
Cooling System: Air/oil cooled
Induction: Mikuni BSR32 carburetor
Ignition: CDI
Starting: Electric and kick
Max Power: 15 kW / 20 hp @ 7500 rpm
Max Torque: 22 Nm / 2.2 kgf-m / 16.2 lb-ft @ 6000 rpm
Clutch: Wet, multi-plate, coil springs
Transmission: 5 Speed, constant mesh
Final Drive: Chain, O-ring
Frame: Steel backbone, tubular
Rake: 25o 55'
Trail: 92 mm / 3.6 in
Front Suspension: Telescopic fork
Rear Suspension: Swingarm, dual shocks, coil spring
Front Brakes: Single disc
Rear Brakes: Drum
Front Tyre: 90/90-18M/C 51S
Rear Tyre: 110/90-18M/C 61S
Dimensions: Length: 2070 mm / 81.0 in Width: 750 mm / 30.0 in Height: 1075 mm / 42.3 in
Wheelbase: 1375 mm / 54.1 in
Ground Clearance: 165 mm / 6.5 in
Seat Height: 770 mm / 30 mm
Turning Radius: 2.4 m / 7.9 ft
Dry Weight: 129 kg / 284lbs
Fuel Capacity: 12 Litres / 3.2 US gal / 2.6 Imp gal
Top Speed: 121 km/h / 75 mph
