Suzuki RGV 250 (1993) technical specifications

Suzuki RGV 250 technical specifications

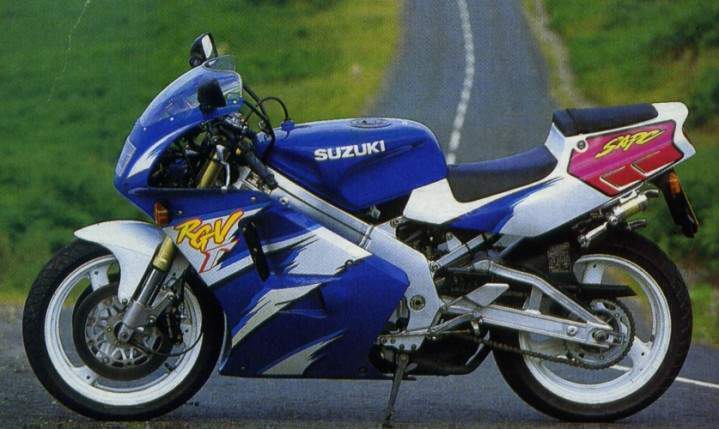

Suzuki RGV 250 is produced in 1993. Engine is Two stroke, 90° V- twin, reed valve, displacement 249 cc / 15.2 cu in , produces power 45.5 kW / 61 hp @ 11000 rpm and 40 Nm / 4.1 kgf-m / 29.5 lb-ft @ 8000 rpm. Suzuki RGV 250 top speed is 205.4 km/h / 127.6 mph. Suzuki RGV 250 wet weight is 161 kg / 355 lbs. Suzuki RGV 250 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: RGV 250
Years: 1993
Engine: Two stroke, 90° V- twin, reed valve
Capacity: 249 cc / 15.2 cu in
Bore x Stroke: 56 x 50.6 mm
Compression Ratio: 7.3 :1
Cooling System: Liquid cooled
Induction: 2 x Mikuni TM34SS semi-flat carburetors
Ignition: Pointless Electrical Ignition
Spark Plug: NGK BR9ES
Battery: 12V, 5Ah
Starting: Kick
Max Power: 45.5 kW / 61 hp @ 11000 rpm
Max Power Rear Tyre: 43.3 kW / 58 hp @ 11000rpm
Max Torque: 40 Nm / 4.1 kgf-m / 29.5 lb-ft @ 8000 rpm
Clutch: Wet, multi-plate
Transmission: 6 Speed, constant mesh
Primary Reduction: 2.565 (59/23)
Gear Ratios: 1st 2.454 (27/11) / 2nd 1.625 (26/16) / 3rd 1.235 (21/17) / 4th 1.045 (23/22) / 5th 0.916 (22/24) / 6th 0.840 (21/25)
Final Drive: Chain, DID520V2, 114 links
Frame: Twin spar, aluminium
Front Suspension: USD telescopic fork, 5-way adjustable with anti-dive, oil dampened
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Full Floater, mono-shock, gas/oil damped, 7-way adjustable
Rear Wheel Travel: 140 mm / 5.5 in
Front Brakes: 2 x 300 mm Discs ,4 piston calipers
Rear Brakes: Single 210 mm disc, 1 piston caliper
Front Tyre: 110/70-17
Rear Tyre: 140/60-18
Rake: 25o
Trail: 94 mm / 3.7 in
Dimensions: Length: 2015 mm / 79.3 in Width: 695 mm / 27.4 in Height: 1065 mm / 41.9 in
Wheelbase: 1375 mm / 54.1 in
Ground Clearance: 120 mm / 4.7 in
Seat Height: 755 mm / 29.7 in
Turning Radius: 3.1 m / 10.2 ft
Lean Angle: 58°
Wet Weight: 161 kg / 355 lbs
Fuel Capacity: 16 Litres / 4.2 US gal / 3.5 Imp gal
Oil Capacity: 1.1 Litres / 12 US qt / 1.0 Imp qt
Consumption Average: 8.0 L/100 km / 12.5 km/l / 29.4 US mpg / 35.3 Imp mpg
Braking 60 km/h - 0: 12.4 m / 40.7 ft
Braking 100 km/h - 0: 36.0 m / 118 ft
Standing ¼ Mile: 12.5 sec / 167.8 km/ / 104.3 mph
Top Speed: 205.4 km/h / 127.6 mph
